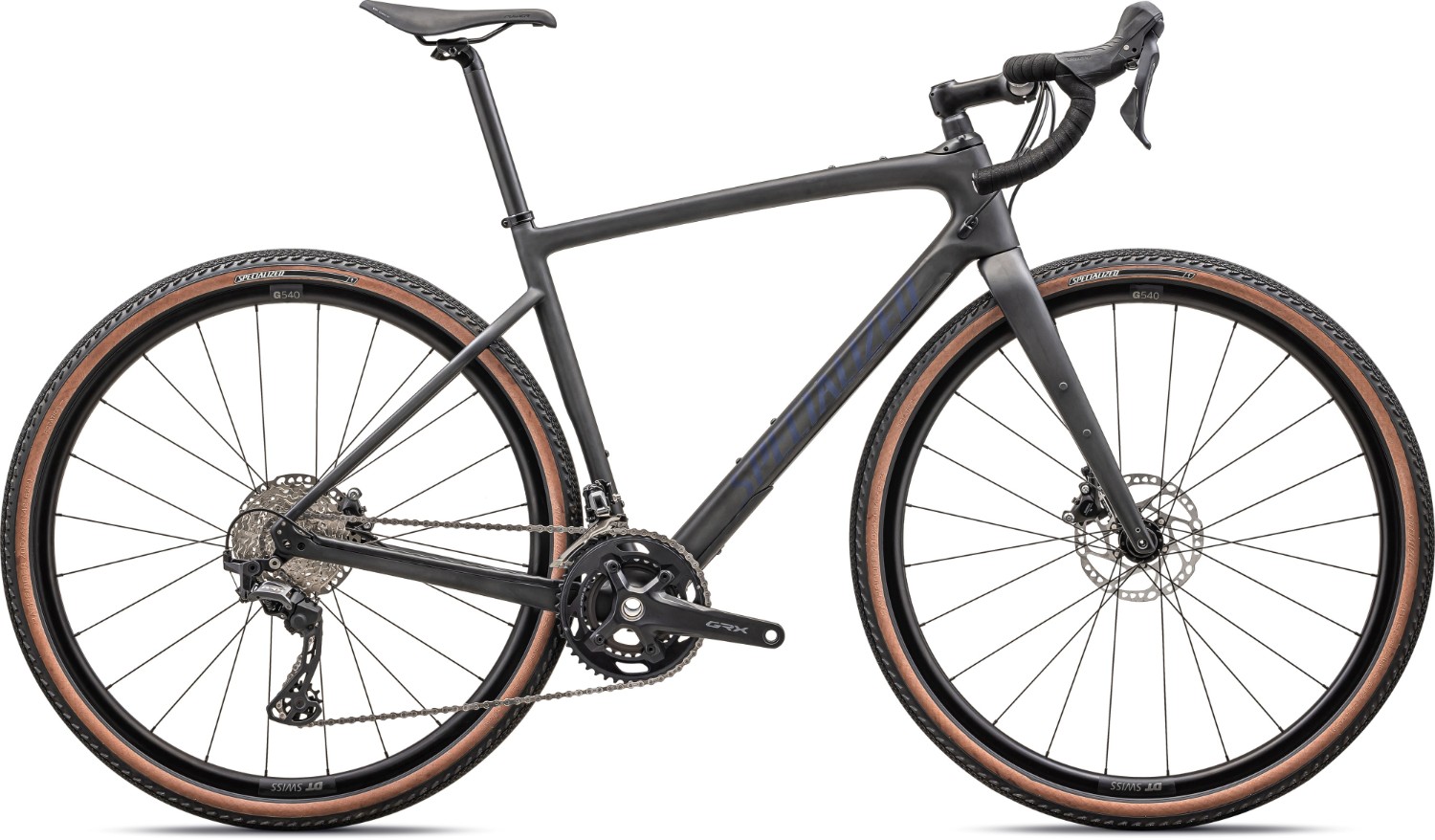

Specialized Diverge Sport Carbon 2025 - Gravel Bike





With a FACT 8r carbon frame, Future Shock 1.5 suspension and 42mm Pathfinder Pro tyres, the Diverge Sport Carbon delivers speed, control and comfort across rough gravel roads and smooth tarmac alike.
Key Features:
- FACT 8r carbon frame with progressive gravel geometry and clearance for up to 47mm tyres
- Future Shock 1.5 carbon fork with 20mm axial compliance tuned for gravel riding
- Shimano GRX 2x12-speed drivetrain with RX820 derailleurs and wide-range cassette
- Shimano GRX RX400 hydraulic disc brakes for powerful and consistent stopping
- DT Swiss G540 700c tubeless-ready rims with sealed bearing hubs
- 700x42mm Pathfinder Pro tyres with fast-rolling centre and grippy shoulder tread
- Multiple mounting points for racks, bags and bottles for all-day adventures
- Available with 0% APR finance to help spread the cost
The Specialized Diverge Sport Carbon is built to break boundaries on dirt, tarmac and everything in between. Designed using over 40 years of Specialized’s road and off-road experience, it rewrites the rulebook on gravel geometry and rider comfort. The lightweight FACT 8r carbon frame is agile and responsive yet stable and planted thanks to a longer reach, slacker head angle and lower bottom bracket, giving you the confidence to charge loose descents and technical terrain.
Up front, the Future Shock 1.5 system delivers 20mm of travel between the stem and head tube so your hands, arms and shoulders stay fresh over rough ground without compromising speed or control. It’s a proven technology for taming vibrations and giving you more traction when it matters most.
With a Shimano GRX 2x12-speed drivetrain, the Diverge Sport Carbon offers slick, gravel-tuned shifting and a wide gear range, making it just as happy on steep climbs as it is hammering along fire roads. Paired with Shimano GRX RX400 hydraulic brakes, you’ve got consistent braking power whatever the weather or surface.
Rolling on DT Swiss G540 wheels and Pathfinder Pro 700x42mm tyres, this bike strikes the perfect balance between fast-rolling efficiency and off-road grip. The tyres feature a slick centre tread for speed, with textured shoulders for traction in looser conditions ideal for mixed terrain rides.
Plenty of mounting points (including fork and top tube mounts) mean you can pack for overnighters or extended day rides. And with clearance for up to 47mm tyres (700c) or 2.1” with 650b wheels, the Diverge gives you options to dial in your setup for any adventure.
Whether you're tackling gravel races, weekend escapes or simply choosing the path less travelled, the Specialized Diverge Sport Carbon is your go-anywhere companion offering a fast, capable, and seriously fun to ride.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Specialized Diverge FACT 8r carbon, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc |
Fork | Future Shock 1.5 w/Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount |
Stem | Future Stem, Comp |
Bars | Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare |
Front Brake | Shimano GRX RX400 |
Rear Brake | Shimano GRX RX400 |
Front Mech | Shimano GRX RX820 |
Rear Mech | Shimano GRX RX820, 12-speed |
Shifters | Shimano GRX RX610, 2x12-speed |
Speed | 24 |
Rims | DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h |
Front Hub | Specialized full sealed bearing thru axle hub, centerlock disc |
Rear Hub | Specialized full sealed bearing thru axle hub, centerlock disc |
Spokes | DT Swiss Champion 14G stainless steel |
Front Tyre | PATHFINDER PRO 2BR, TAN SIDEWALL, 700x42 |
Rear Tyre | PATHFINDER PRO 2BR, TAN SIDEWALL, 700x42 |
Seat Post | Carbon, single-bolt, 27.2mm |
Saddle | Body Geometry Power Sport, steel rails |
Chainset | Shimano GRX RX610, 46/30T |
Bottom Bracket | Shimano Threaded BSA BB |
Chain | Shimano SLX, M7100, 12-speed |
Cassette | Shimano 105 12-speed 11-36 |
Pedals | Resin Platform |
Weight | 10.10kg |
Specialized Diverge Carbon 2025 Size Chart
Size |
Height (cm) |
Height (Inches) |
44cm |
142 – 152 |
4’8” – 5’0” |
49cm |
152 - 163 |
5'0" - 5'4" |
52cm |
163 - 170 |
5'4" - 5'7" |
54cm |
170 - 178 |
5'7 - 5'10" |
56cm |
175 - 180 |
5'9" - 6'0" |
58cm |
180 - 188 |
5'11" - 6'2" |
61cm |
188 - 196 |
6'2" - 6'5" |
64cm |
196 – 205 |
6’5” – 6’9” |
What size frame do I need if I am between sizes? - read here
Specialized Diverge Carbon 2025 Geometry Chart
Size | 49 | 52 | 54 | 56 | 58 | 61 |
---|---|---|---|---|---|---|
Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
Stem Length | 60mm | 70mm | 80mm | 90mm | 100mm | 100mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 330mm | 330mm | 380mm | 380mm | 380mm | 380mm |
Stack | 571mm | 577mm | 592mm | 610mm | 634mm | 659mm |
Reach | 365mm | 374mm | 383mm | 392mm | 401mm | 410mm |
Head Tube Length | 99mm | 104mm | 116mm | 133mm | 159mm | 185mm |
Head Tube Angle | 70° | 70.5° | 71.25° | 71.75° | 71.75° | 71.75° |
BB Height | 270mm | 270mm | 270mm | 270mm | 270mm | 270mm |
BB Drop | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
Trail | 69mm | 66mm | 61mm | 57mm | 57mm | 57mm |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
