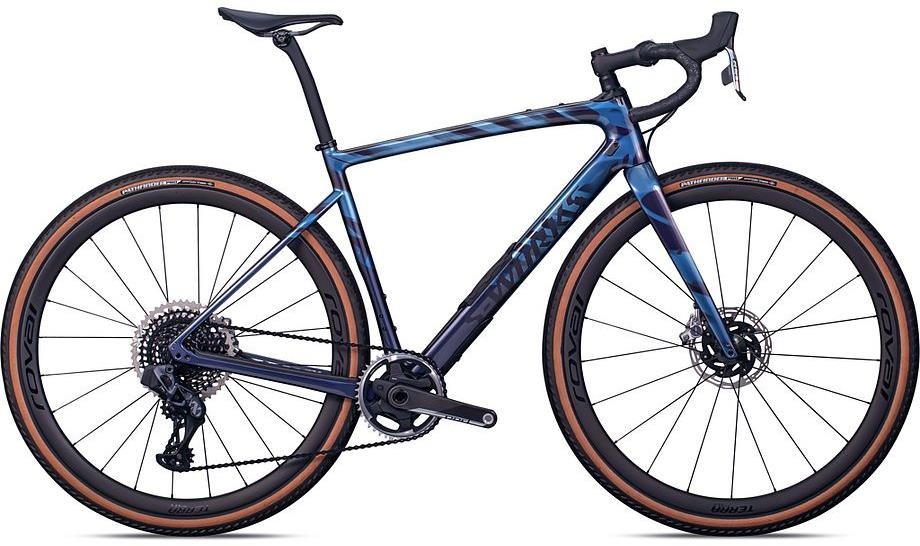

Specialized Diverge S-Works 2023 - Gravel Bike
- With a FACT 11r carbon frame, the S-Works Diverge frame weighs less than 1000grams (56cm), making its incredible capability race bike light. Pin it for your local dirt climb KOM, or grind up a giant back country peak, the light and lively Diverge will get you there faster.
- Speed, control and confidence - Future Shock 2.0 is the ultimate technology for the gravel rider. With 20mm of axial compliance and a hydraulic damper, Future Shock 2.0 suspends the rider not the bike. This keeps you confident and in control, able to keep the power down and stay off the brakes over rough dirt roads and in thick loose gravel, all while keeping your hands, arms and neck fresh. Since Future Shock 2.0’s damper is adjustable, you’ll be ready for the rough stuff and efficient on smooth pavement.
- We tossed gravel geometry ‘status-quo’ out the window. The new Diverge has the most progressive geometry we’ve ever created for a drop bar bike, giving riders a capable and stable bike in the dirt, that still feels responsive and nimble on the road. We’ve increased the frame’s reach, introduced a slacker head tube and a longer offset fork. All this creates incredible confidence with a planted feeling in the dirt, while spec’ing shorter stems keeps the overall cockpit length the same and the steering lively. We’ve kept the bike’s BB low to increase stability, but high enough to utilize with 650b wheels if that’s your jam.
- We’ve given the Diverge plenty of rack mounts, including fork and top tube mounts, to ensure you can take what you need, no matter how far you plan to go, or how long you plan to stay out.
- Nothing unlocks a bike’s capability like tire clearance, so we gave the new Diverge a whopping 47mm of tire clearance with a 700c wheel and 2.1” with a 650b wheel. Thanks to a drive side chain stay utilizing a solid beam of carbon behind the chain rings we’ve created clearance without using a fragile dropped chain stay design or increasing chain stay length.
- The more capable your bike, the bigger your rides get, so Diverge borrows SWAT internal storage from the legendary Stumpy. The SWAT door lets you utilize space in the down tube to store tools, a flat kit, nutrition and even our SWAT Jacket. It keeps weight off your body, low in the bike for better handling, and makes you more self-sufficient, so get out there. SWAT’s got your back.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | S-Works Diverge FACT 11r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc |
Fork | Future Shock 2.0 w/ Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount |
Stem | S-Works Future Stem w/ Integrated Computer mount |
Bars | Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare |
Front Brake | SRAM Red eTap AXS, hydraulic disc, 160mm CenterLine XR rotor |
Rear Brake | SRAM Red eTap AXS, hydraulic disc, 160mm CenterLine XR rotor |
Brake Lever | SRAM RED eTap AXS |
Rear Mech | SRAM XX1 Eagle AXS |
Shifters | SRAM Red eTap AXS |
Speed | 12 |
Rims | Roval Terra CLX, 25mm internal width, 32mm depth, 21h, Tubeless ready |
Front Hub | DT for Roval hub, Centerlock disc |
Rear Hub | DT for Roval hub, Centerlock disc |
Spokes | DT Swiss Aerolite |
Front Tyre | Roval Terra CLX, 25mm internal width, 32mm depth, 21h, Tubeless ready, DT for Roval hub, Centerlock disc, DT Swiss Aerolite spokes |
Rear Tyre | Roval Terra CLX, 25mm internal width, 32mm depth, 21h, Tubeless ready, DT for Roval hub, Centerlock disc, DT Swiss Aerolite spokes |
Seat Post | Roval Terra Carbon Seat Post, 20mm Offset |
Saddle | Body Geometry S-Works Power, carbon fiber rails, carbon fiber base |
Chainset | SRAM Red 1 AXS, 42T |
Bottom Bracket | SRAM DUB BSA 68 |
Chain | SRAM XX1 Eagle, 12-speed |
Cassette | SRAM XG-1295 Eagle, 12-speed, 10-50t |
Pedals | Resin Platform |
Specialized Diverge 2023 Size Chart
Size | Height (cm) | Height (Inches) |
44cm | 142 - 152 | 4'8 - 5'0" |
49cm | 152 - 163 | 5'0" - 5'4" |
52cm | 163 - 170 | 5'4" - 5'7" |
54cm | 170 - 178 | 5'7" - 5'10" |
56cm | 175 - 180 | 5'9" - 6'0" |
58cm | 180 - 188 | 5'11" - 6'2" |
61cm | 188 - 196 | 6'2" - 6'5" |
Specialized Diverge 2023 Geometry
44 | 49 | 52 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|---|
Crank Length | 165 | 165 | 170 | 172.5 | 172.5 | 175 | 175 |
Handlebar Width | 360 | 380 | 400 | 420 | 420 | 440 | 440 |
Stem Length | 60 | 60 | 70 | 80 | 90 | 100 | 100 |
Saddle Width | 155 | 155 | 155 | 143 | 143 | 143 | 143 |
Seatpost Length | 350 | 350 | 350 | 400 | 400 | 400 | 400 |
Stack | 529 | 545 | 561 | 578 | 599 | 618 | 635 |
Reach | 357 | 365 | 374 | 383 | 392 | 401 | 410 |
Head Tube Length | 110 | 125 | 140 | 155 | 175 | 195 | 213 |
Head Tube Angle | 69.5 | 70 | 70.5 | 71.25 | 71.75 | 71.75 | 71.75 |
BB Height | 270 | 270 | 270 | 270 | 270 | 270 | 270 |
BB Drop | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
Trail | 72 | 69 | 66 | 61 | 57 | 57 | 57 |
Fork Length Trail | 390 | 390 | 390 | 390 | 390 | 390 | 390 |
Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
Front Center | 589 | 589 | 608 | 615 | 626 | 641 | 656 |
Chainstay Length | 432 | 432 | 432 | 432 | 432 | 432 | 432 |
Wheelbase | 1008 | 1017 | 1027 | 1035 | 1046 | 1061 | 1076 |
Top Tube Length | 504 | 521 | 538 | 554 | 570 | 584 | 598 |
Bike Standover Height | 680 | 703 | 723 | 763 | 789 | 808 | 834 |
Seat Tube Length | 363 | 390 | 430 | 470 | 500 | 530 | 560 |
Seat Tube Angle | 74.5 | 74 | 73.75 | 73.5 | 73.5 | 73.5 | 73.5 |
