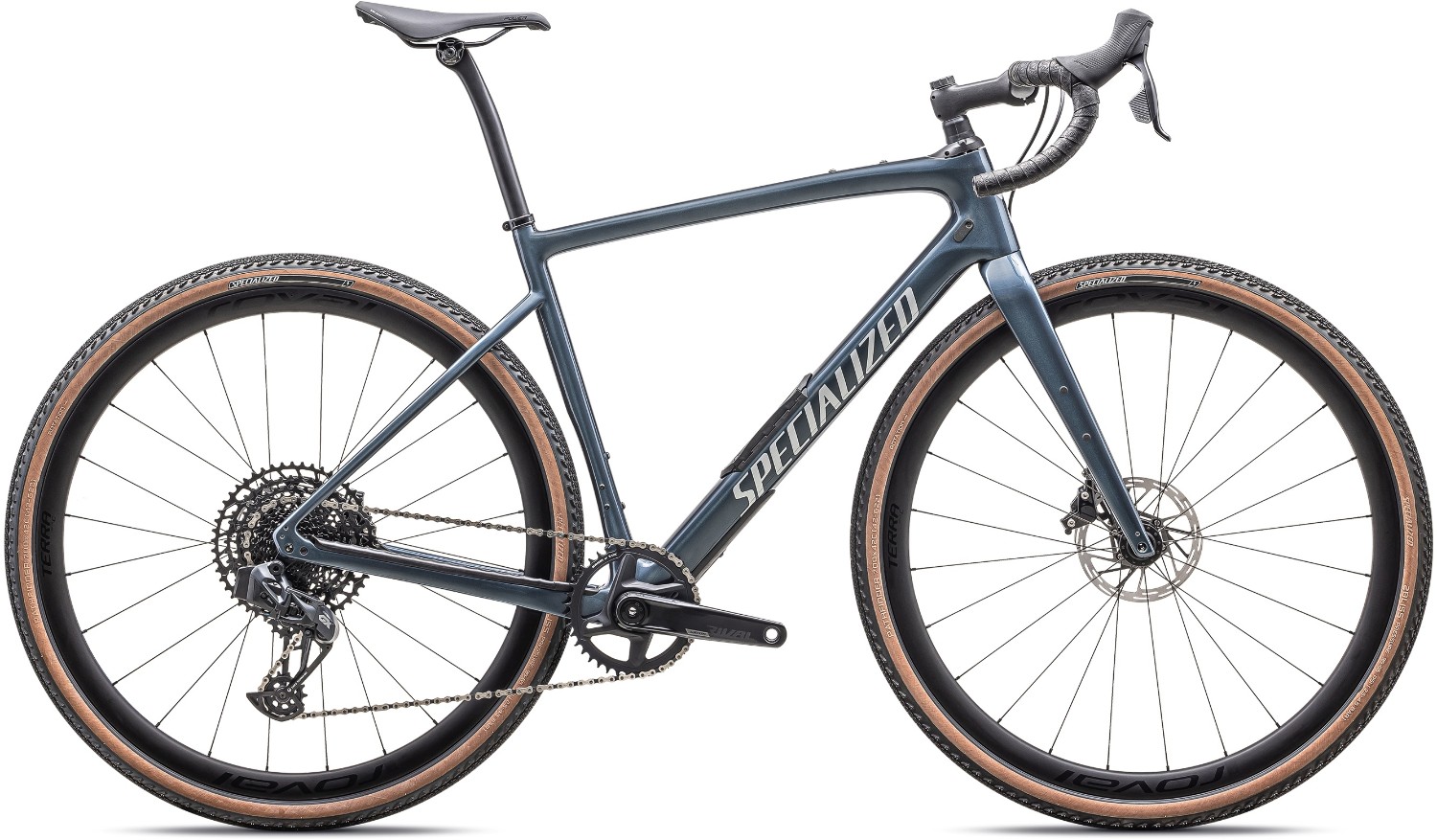

Name: Specialized Diverge Expert Carbon 2025 - Gravel Bike
Brand: Specialized

It’s just maybe the most fun bike Specialized have ever made, delivering a ride that’s quick and lively under power but stable and confidence-inspiring when the terrain gets rough. From Future Shock 2.0 and gravel geometry to internal storage and category-leading tire clearance, the Diverge represents everything we’ve learned over more than 40 years of riding road, gravel, and dirt. The Diverge writes an entirely new chapter in the gravel bike category, so you can dream up entirely new rides. It’s the ultimate getaway vehicle.

The Diverge Expert is built with the perfect mix of SRAM’s Rival, GX, and NX components for fast, efficient shifting with an 11-50 cassette to ensure you have the gearing to tackle any ride. The bike rolls on the Roval Terra C wheels with 42mm Pathfinder Pro tires. Adventure Gear alloy handlebars, a Roval Terra carbon seatpost, and a Power Expert saddle complete.

The more capable your bike, the bigger your rides get, so Diverge borrows SWAT internal storage from the legendary Stumpy. The SWAT door lets you utilize space in the down tube to store tools, a flat kit, nutrition, and even our SWAT Jacket. It keeps weight off your body and low in the bike for better handling and makes you more self-sufficient, so get out there. SWAT’s got your back.
We tossed gravel geometry status quo out the window. The new Diverge has the most progressive geometry we’ve ever created for a drop bar bike, giving riders a capable and stable bike in the dirt that still feels responsive and nimble on the road. We’ve increased the frame’s reach, introduced a slacker head tube and a longer offset fork. All this creates incredible confidence with a planted feeling in the dirt while spec’ing shorter stems keeps the overall cockpit length the same and the steering lively. We’ve kept the bike’s BB low to increase stability but high enough to utilize with 650b wheels if that’s your jam.
Speed, control, and confidence - Future Shock 2.0 is the ultimate technology for the gravel rider. With 20mm of axial compliance and a hydraulic damper, Future Shock 2.0 suspends the rider, not the bike. This keeps you confident and in control, able to keep the power down and stay off the brakes over rough dirt roads and in thick, loose gravel while keeping your hands, arms, and neck fresh. Since Future Shock 2.0’s damper is adjustable, you’ll be ready for the rough stuff and efficient on smooth pavement.
We’ve given the Diverge plenty of rack mounts, including fork and top tube mounts, to ensure you can take what you need, no matter how far you plan to go or how long you plan to stay out.
Nothing unlocks a bike’s capability like tire clearance, so we gave the new Diverge a whopping 47mm of tire clearance with a 700c wheel and 2.1” with a 650b wheel. Thanks to a drive-side chain stay utilizing a solid beam of carbon behind the chainrings, we’ve created clearance without using a fragile dropped chain stay design or increasing chain stay length.
With a FACT 9r carbon frame, the Diverge Expert frame is incredibly capable and race bike light. Pin it for your local dirt climb KOM, or grind up a giant backcountry peak, the light and lively Diverge will get you there faster.

Occasionally, without notice, manufacturers change product design and/or specifications.

Specialized Diverge Carbon 2025 Size Chart

Size	Height (cm)	Height (Inches)
44cm	142 – 152	4’8” – 5’0”
49cm	152 - 163	5'0" - 5'4"
52cm	163 - 170	5'4" - 5'7"
54cm	170 - 178	5'7 - 5'10"
56cm	175 - 180	5'9" - 6'0"
58cm	180 - 188	5'11" - 6'2"
61cm	188 - 196	6'2" - 6'5"
64cm	196 – 205	6’5” – 6’9”

What size frame do I need if I am between sizes? - read here

Specialized Diverge Carbon 2025 Geometry Chart

Size	49	52	54	56	58	61
Crank Length	165mm	170mm	172.5mm	172.5mm	175mm	175mm
Handlebar Width	380mm	400mm	420mm	420mm	440mm	440mm
Stem Length	60mm	70mm	80mm	90mm	100mm	100mm
Saddle Width	155mm	155mm	143mm	143mm	143mm	143mm
Seatpost Length	330mm	330mm	380mm	380mm	380mm	380mm
Stack	571mm	577mm	592mm	610mm	634mm	659mm
Reach	365mm	374mm	383mm	392mm	401mm	410mm
Head Tube Length	99mm	104mm	116mm	133mm	159mm	185mm
Head Tube Angle	70°	70.5°	71.25°	71.75°	71.75°	71.75°
BB Height	270mm	270mm	270mm	270mm	270mm	270mm
BB Drop	80mm	80mm	80mm	80mm	80mm	80mm
Trail	69mm	66mm	61mm	57mm	57mm	57mm

All measurements are in mm unless otherwise stated.

The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.

Frame	Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
Fork	Future Shock 2.0 w/ Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount
Stem	Future Stem, Pro
Bars	Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Front Brake	SRAM Rival eTAP AXS, hydraulic disc
Rear Brake	SRAM Rival eTAP AXS, hydraulic disc
Rear Mech	SRAM Gx Eagle AXS
Shifters	SRAM Rival eTap AXS
Speed	12
Rims	Roval Terra C, 25mm inner width carbon rim, 32mm depth
Front Hub	NEW DT 370 hub, 24h
Rear Hub	NEW DT 370 Star Ratchet hub, 24h
Spokes	DT Swiss Comp Race spokes
Front Tyre	PATHFINDER PRO 2BR, TAN SIDEWALL, 700x42
Rear Tyre	PATHFINDER PRO 2BR, TAN SIDEWALL, 700x42
Seat Post	Roval Terra Carbon Seat Post, 20mm Offset
Saddle	Body Geometry Power Expert
Chainset	SRAM Rival 1 Wide, 40t
Bottom Bracket	SRAM DUB BSA 68
Chain	SRAM GX Eagle, 12-speed
Cassette	SRAM NX Eagle, 12-speed, 11-50t
Pedals	Resin Platform
Weight	9.52kg
