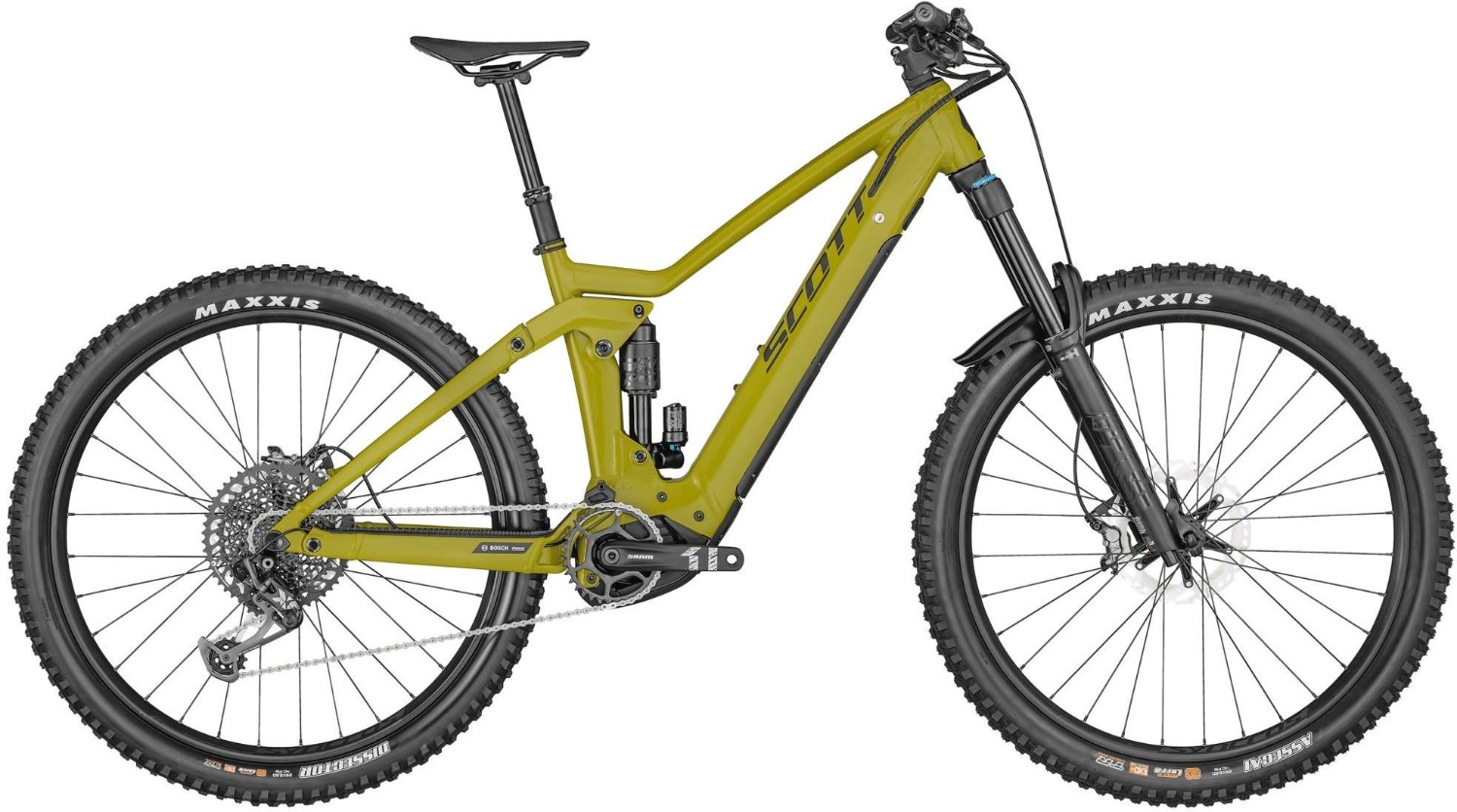

Scott Ransom eRIDE 910 2024 - Electric Mountain Bike
![Scott Ransom eRIDE 910 2024 - Electric Mountain Bike product image](https://tredz.azureedge.net/prodimg/262547_1_Supersize.jpg)
- Ransom eRIDE Alloy Frame
- FOX 38 Performance Elite 180mm Fork
- FOX Float X2 / Air, LSC-LSR w/2-Pos. lever
- SRAM X01-NX Eagle 12 Speed
- Bosch CX, PowerTube 625Wh
- Shimano XT 4 Piston Disc Brakes
- FOX Dropper Post, Syncros Parts
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Alloy Frame / Virtual 4 link kinematic VLK 27.5" and 29" compatible / geo adj. / Boost 148x12mm 180mm travel / Bosch Gen4 / Integr. removable Battery Tapered Headtube E2, Central Kickstand Mount |
Fork | FOX 38 Performance Elite / Air / eMTB+ FIT Grip 2 / LSC-HSC / LSR-HSR / 15x110mm QR axle tapered steerer / Reb. Adj. / 180mm travel |
Rear Shock | FOX Float X2 Performance / Air LSC, LSR w/2-Pos. lever |
Headset | Acros Blocklock / Tapered 1.5"-1 1/8" OD 52/62mm / ID 44/56mm |
Stem | Syncros XM1.5 / Alloy 6061 integrated Spacer & Top Cap / 31.8mm / 0° / 1 1/8" |
Bars | Syncros Hixon 1.5 Rise / Alloy 2014D.B. 20mm rise / 8° / 800mm |
Front Brake | Shimano XT / BR-M8120 4 Piston / RT-MT800 CL 203mm |
Rear Brake | Shimano XT / BR-M8120 4 Piston / RT-EM810 CL 203mm |
Brake Lever | Shimano XT |
Rear Mech | SRAM X01 Eagle / 12 Speed |
Shifters | SRAM NX Eagle Single Click |
Speed | 12 |
Rims | Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready |
Front Hub | Formula CL-811 / 15x110mm |
Rear Hub | Formula ECT-1481 / Boost 148x12mm |
Spokes | Stainless Black |
Front Tyre | Maxxis Assegai 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra |
Rear Tyre | Maxxis Dissector 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra |
Seat Post | FOX Transfer Dropper Post 31.6mm / S size 125mm / M size 150mm / size 175mm / XL size 200mm |
Saddle | Syncros Tofino 1.5 Regular Titanium rails |
Chainset | SRAM X1 1000 / 165mm / SRAM Eagle 34T DM / Steel |
Bottom Bracket | Integrated |
Chain | SRAM NX Eagle |
Cassette | SRAM XG1275 / 10-52 T |
Pedals | Resin Platform |
Weight | 24.6kg |
Battery Size (WH) | PowerTube 625Wh |
Motor | Bosch Performance CX |
User Interface | Bosch Purion |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Scott Ransom eRIDE 910 2024 - Electric Mountain Bike.
This product is no longer available.
