Pivot Shuttle LT Bosch 29 Ride SLX/XT 2025 - Electric Mountain Bike















The Pivot Shuttle LT Bosch 29 Ride SLX/XT blends downhill-inspired suspension, a lightweight carbon frame, and the power of the Bosch Performance CX Race motor, enabling riders to go harder, faster, and further with ease.
Key Features:
- Frame: Full carbon frame with Pivot's Hollow Core moulding and adjustable geometry.
- Front Suspension: Fox Performance 38 GRIP fork with 170mm travel for confident control.
- Rear Suspension: Fox Performance Float X shock with 160mm travel for traction and stability.
- Drivetrain: Shimano SLX/XT 12-speed drivetrain for smooth, reliable shifting.
- Brakes: Shimano SLX M7120 4-piston hydraulic brakes with 223mm/203mm Galfer Wave rotors.
- Wheels: Mixed DT Swiss Hybrid H1900 wheels with Continental Kryptotal tyres.
- Standout Feature: Flip-chip geometry adjustment for 29" or mullet wheel setups.
- Finance: Available with 0% APR finance.
Drive Information:
- Motor: Bosch Performance CX Race Limited Edition with 85Nm max torque.
- Battery: Bosch 750Wh battery with optional 250Wh PowerMore range extender.
- User Interface: Bosch intuitive remote and display system for seamless control

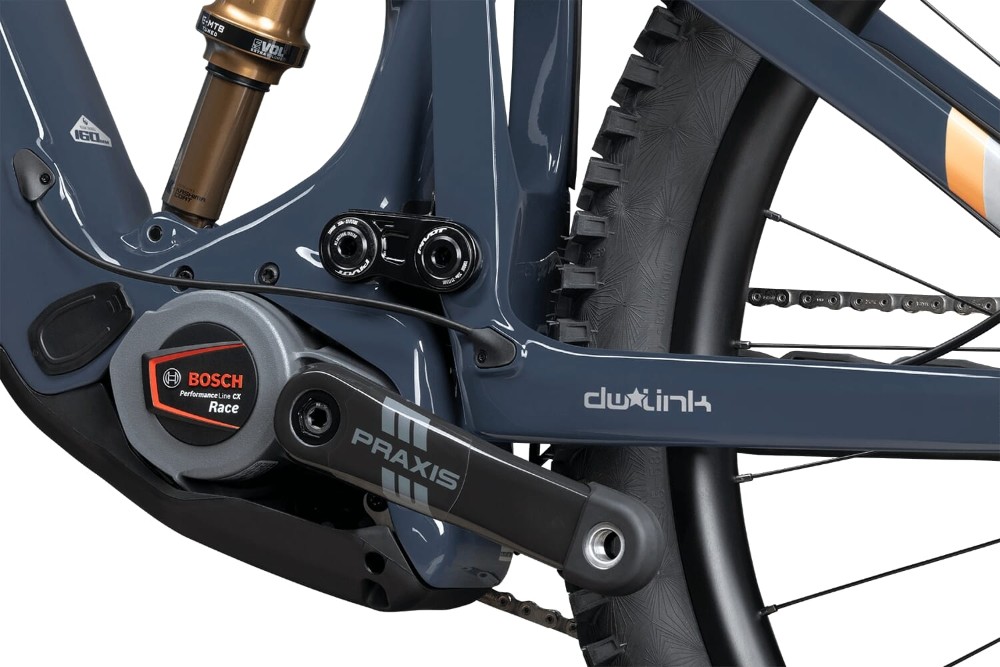

The Pivot Shuttle LT’s Bosch Performance CX Race motor generates an impressive 600 watts of peak power, ensuring smooth assistance even on the steepest climbs. Paired with a high-capacity 750Wh battery, this e-bike is ready for all-day adventures, and the optional range extender pushes limits even further.
Pivot’s dw-link® suspension is perfectly tuned to work with the motor’s output, providing exceptional traction and control while minimising pedal kickback. The 160mm of rear travel and 170mm up front are optimised for gravity-focused riding, ensuring comfort and stability over rugged terrain.
The mixed wheel setup combines a fast-rolling 29” front wheel with a nimble 27.5” rear wheel for responsive handling and smooth performance. The adjustable flip-chip allows riders to tailor the geometry to their preference, offering flexibility for technical trails or high-speed descents.

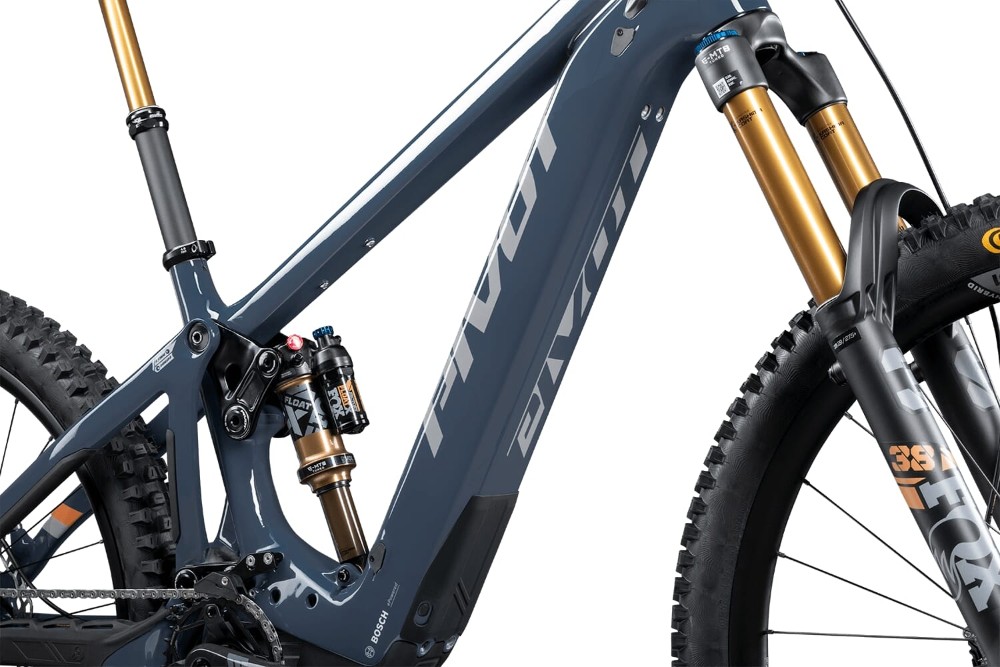

Built with Pivot’s proprietary carbon moulding technology, the frame is lightweight yet incredibly stiff, offering precise handling and a lively ride feel. Size-specific frame tuning ensures every rider, from small to extra-large, experiences consistent performance. The compact vertical shock layout makes room for a full-sized water bottle, while the Pivot Dock Tool System adds storage convenience for tools or spares.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Full Carbon Frame Constructed with Pivot's Proprietary Molding Technology |
Fork | Fox Performance 38 29", 44mm offset, GRIP - 170mm |
Rear Shock | FOX PERFORMANCE FLOAT X |
Headset | Pivot Precision Sealed Cartridge |
Stem | Phoenix Team Enduro/Trail - 45mm |
Bars | Phoenix Race Low Rise Aluminum - 780mm (SM-MD), 800mm (LG-XL) |
Front Brake | Shimano SLX M7120 4-piston, Galfer Wave 6 Bolt - 223mm |
Rear Brake | Shimano SLX M7120 4-piston, Galfer Wave 6 Bolt - 203mm |
Brake Lever | Shimano SLX M7120 |
Rear Mech | Shimano XT M8100 SGS 12-Speed |
Shifters | Shimano SLX M7100 ISPEC EV 12-Speed |
Rims | DT Swiss Hybrid H1900, 30mm - Mixed |
Front Hub | 15x110 F |
Rear Hub | 12x157 R |
Front Tyre | Continental Kyrptotal-F 29" x 2.4" Soft Compound Enduro Casing |
Rear Tyre | Continental Kyrptotal-R 27.5" x 2.6" Soft Compound Enduro Casing |
Seat Post | SDG Tellis 130-150mm (SM), 150mm - 170mm (MD-XL) |
Saddle | Phoenix WTB Volt Race (Medium Width) |
Chainset | Praxis Alloy eCranks E-MTB 34t - 160mm |
Chain | Shimano CN-M6100 12 Speed |
Cassette | Shimano Deore M6100 10-51t |
Pedals | Resin Platform |
Battery Size (WH) | Bosch 750Wh |
Motor | Bosch Performance CX Race Edition |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
