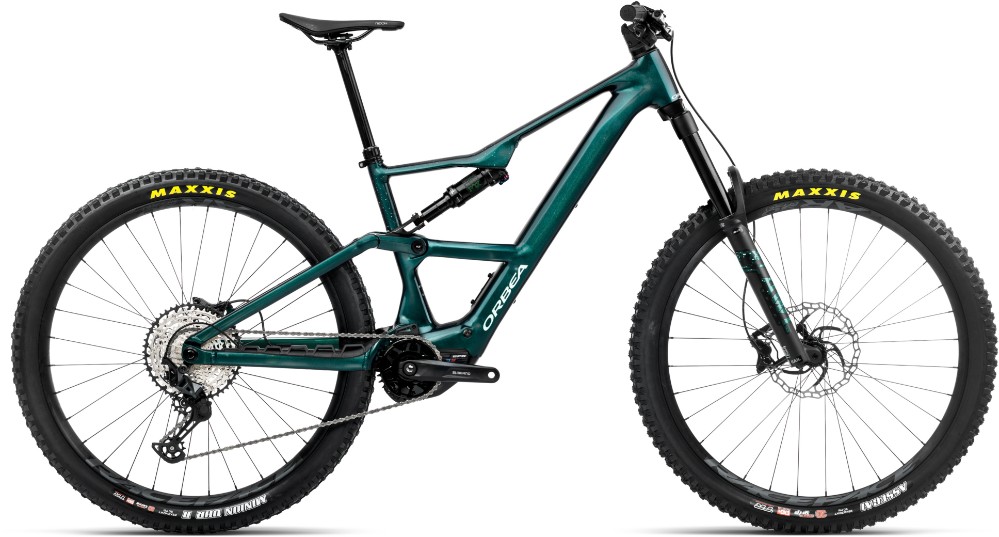

Orbea Rise LT H20 2025 - Electric Mountain Bike
The Orbea Rise LT H20 is a nimble, capable e-MTB built to climb efficiently and descend confidently. With a powerful Shimano EP600 motor, 630Wh battery and trail-focused geometry, it’s ready for long rides and technical terrain.
Key Features:
- Hydroformed alloy frame with 140mm rear travel and trail-optimised geometry
- Fox 36 Float AWL HD Sport fork with 160mm travel and 15mm Boost axle
- Fox Float Performance rear shock with custom tune and 140mm travel
- Shimano SLX/Deore 12-speed drivetrain with 10-51T wide-range cassette
- Shimano MT420 hydraulic disc brakes with 4-piston calipers
- 29" Race Face AR 30c wheels with Maxxis Assegai 2.5" EXO+ tyres
- OC dropper post, integrated cockpit and Fizik Terra saddle
- Available with 0% APR finance
Drive Information:
- Shimano EP600 motor with 85Nm max torque
- Orbea 630Wh internal battery
- Shimano remote with LED display and control switch
The Orbea Rise LT H20 is part of Orbea’s next-generation lightweight e-MTB platform, designed to give you a natural, connected ride feel now with more power and longer range. At its core is a hydroformed aluminium frame with 140mm of rear suspension travel, engineered around Orbea’s Rider Synergy philosophy for minimal weight, maximum control and responsive handling.
Matched with a 160mm Fox 36 Float AWL HD fork and a Fox Float Performance rear shock, the Rise LT H20 strikes the perfect balance between agility and big-hit capability. The progressive suspension curve and modern trail geometry make it ideal for technical climbs, fast descents and long mountain days.
Power comes from the Shimano EP600 motor, delivering 85Nm of torque in a lightweight, compact design. It’s paired with a high-capacity 630Wh battery neatly integrated into the frame, giving you a generous range for back-to-back trail laps or extended off-road exploration.
The Shimano SLX 12-speed drivetrain offers crisp shifting and a wide gear range thanks to a 10–51T cassette, while MT420 4-piston brakes ensure consistent stopping power and control, even on steep, technical descents. A Shimano Steps EM600 chainset keeps things tough and reliable under power.
Rolling on Race Face AR 30c tubeless-ready rims, the Rise H20 is fitted with grippy Maxxis Assegai 2.5" EXO+ tyres front and rear, designed to hook up in loose terrain and provide cornering confidence when things get steep. The cockpit features OC Mountain Control components, with a dropper post and wide 800mm bar for extra confidence on rowdy trails.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Rise Hydro 140mm travel 29" Boost 12x148 |
| Fork | Fox 36 Float AWL HD Sport 160 Rail QR15x110 |
| Rear Shock | Fox Float Performance 2-Pos Evol LV custom tune 210x55mm |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Stem | OC Mountain Control MC20, 0º |
| Bars | OC Mountain Control MC31, Rise20, Width 800 |
| Front Brake | Shimano MT420 Hydraulic Disc |
| Rear Brake | Shimano MT420 Hydraulic Disc |
| Rear Mech | Shimano SLX M7100 SGS Shadow Plus |
| Shifters | Shimano Deore M6100 I-Spec EV |
| Speed | 12 |
| Rims | Race Face AR 30c Tubeless Ready |
| Front Tyre | Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip |
| Rear Tyre | Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip |
| Seat Post | OC Mountain Control MC21, 31.6mm, Dropper |
| Saddle | Fizik Terra Ridon X5 145mm |
| Chainset | Shimano Steps EM600 |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Pedals | Resin Platform |
| Battery Size (WH) | Orbea Internal 630Wh |
| Motor | Shimano EP600 |
| User Interface | N/A |
Orbea Rise LT 2025 Size Chart
|
Size |
Height (Cm) |
Height (Feet) |
|
S |
150 - 170 |
59.1" - 65.0" |
|
M |
160 - 180 |
63.0" - 68.9" |
|
L |
170 - 190
|
66.9" - 72.8" |
|
XL |
180 - 200 |
70.9" - 78.0" |
Orbea Rise LT 2025 Geometry Chart
| Size | S - High | S - Low | M - High | M - Low | L - High | L - Low | XL - High | XL - Low |
|---|---|---|---|---|---|---|---|---|
| Stack | 623 | 628 | 648 | 652 | 659 | 663 | 671 | 675 |
| Reach | 435 | 430 | 460 | 455 | 485 | 480 | 510 | 505 |
| Head Tube Length | 95 | 95 | 100 | 100 | 110 | 110 | 120 | 120 |
| Head Tube Angle | 64.5° | 64° | 64.5° | 64° | 64.5° | 64° | 64.5° | 64° |
| Bottom Bracket Drop | 26 | 34 | 26 | 34 | 26 | 34 | 26 | 34 |
| Fork Length | 575 | 575 | 575 | 575 | 575 | 575 | 575 | 575 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 |
| Chainstay Length | 440 | 442 | 440 | 442 | 440 | 442 | 440 | 442 |
| Wheelbase | 1201 | 1203 | 1228 | 1230 | 1258 | 1259 | 1287 | 1288 |
| Top Tube Length (horizontal) | 569 | 570 | 595 | 596 | 622 | 623 | 649 | 650 |
| Seat Tube Length | 405 | 405 | 415 | 415 | 430 | 430 | 460 | 460 |
| Seat Tube Angle | 77.5° | 77° | 77.5° | 77° | 77.5° | 77° | 77.5° | 77° |
| Seatpost Max Insertion | 295 | 295 | 305 | 305 | 320 | 320 | 350 | 350 |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
