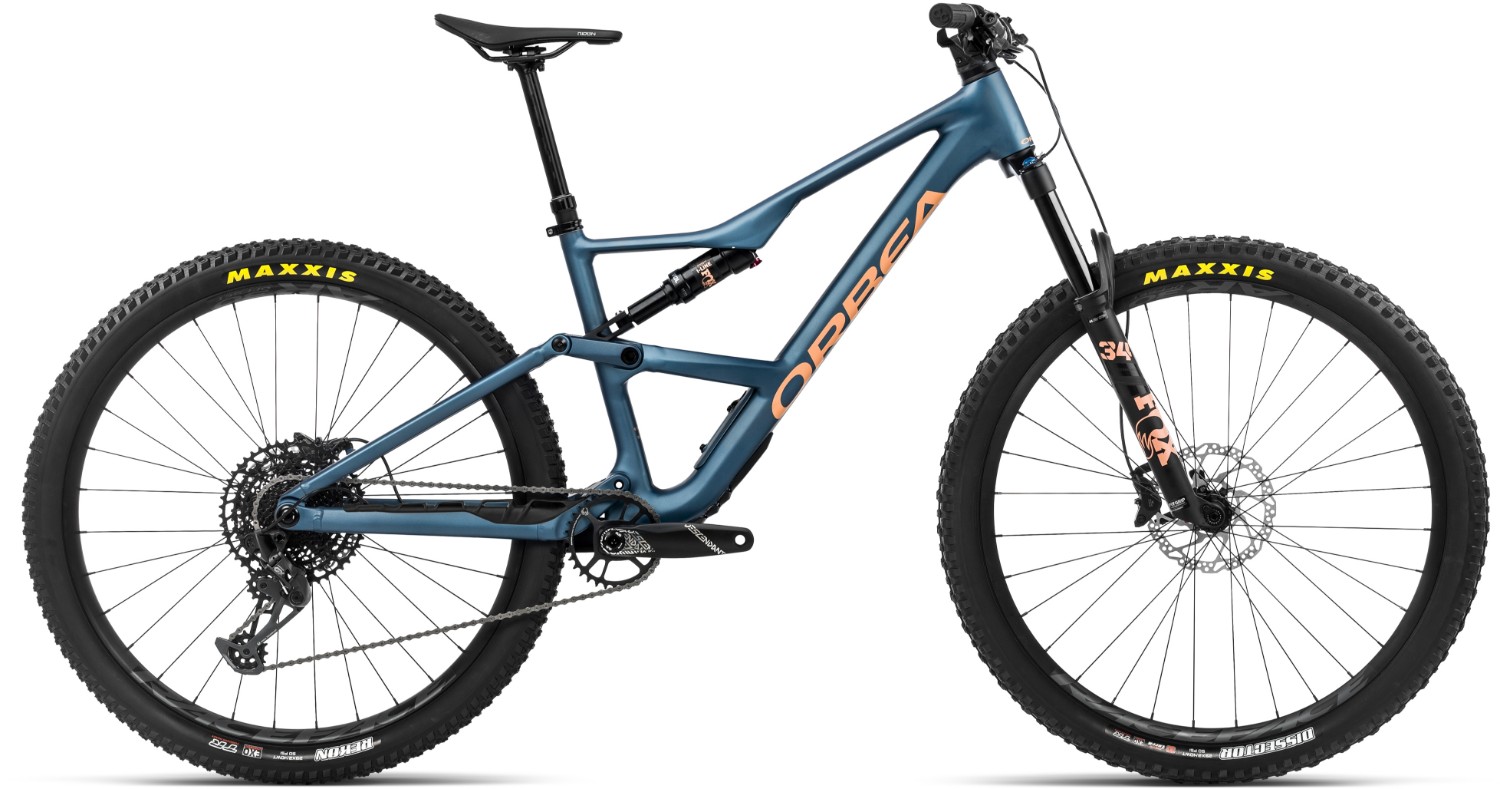

Orbea Occam SL H20 Mountain Bike 2024 - Trail Full Suspension MTB
The Orbea Occam SL H20full-suspension MTB is your ticket to trail mastery. Crafted with precision and cycling expertise, this mountain bike is designed to handle a wide range of terrains. The Orbea Occam Hydro frame, featuring a Concentric Boost 12x148 rear axle, delivers stability and control on any trail. With its pure trail geometry, internal cable routing, and asymmetric design, this bike not only looks sleek but also offers optimal performance. The Fox 34 Float Performance fork, providing 140mm of front suspension travel, pairs perfectly with the Fox Float Performance rear shock with custom tune and 210x50mm dimensions for a smooth and responsive ride.
Key Features:
- Frame: Orbea Occam Hydro with Concentric Boost 12x148 rear axle, pure trail geometry, and internal cable routing.
- Front Suspension: Fox 34 Float Performance 140 with remote push-lock QR15x110 for precise handling.
- Rear Suspension: Fox Float Performance with remote push-lock Evol custom tune and 210x50mm dimensions.
- Drivetrain: SRAM GX Eagle Lunar components for dependable gear changes.
- Brakes: Shimano M6100 hydraulic disc brakes provide confident stopping power.
- Wheels: Race Face AR 30C tubeless-ready rims ensure durability and control.
- Tyres: Maxxis Dissector 2.40" 60 TPI 3C Maxx Terra EXO TLR tires offer exceptional traction.
- Standout Feature: Adaptable design for conquering various terrains.
- Finance Options: Available with 0% APR finance for your convenience.
The Orbea Occam SL H20 is tailor-made for riders who seek versatility and top-notch performance. It's adaptable to both 140mm and 150mm of front and rear travel, allowing you to tackle challenging trails with ease. Whether you prefer an air or coil shock, this bike's progressive rear suspension has you covered.
Experience the thrill of conquering technical descents, scaling steep climbs, and navigating flowy trails with precision. With its adaptability and top-tier engineering, the Occam SL H20 is your ultimate trail companion.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Occam Hydro. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels. Linkage compatible with OC multitool |
| Fork | Fox 34 Float Performance 140 Remote Push-lock QR15x110 |
| Rear Shock | Fox Float Performance Remote Push-lock Evol custom tune 210x50mm |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Stem | OC Mountain Control MC20, 0º |
| Bars | OC Mountain Control MC30, Rise20, Width 800 |
| Front Brake | Shimano M6100 Hydraulic Disc |
| Rear Brake | Shimano M6100 Hydraulic Disc |
| Brake Lever | Shimano M6100 |
| Rear Mech | SRAM GX Eagle Lunar |
| Shifters | SRAM NX Eagle |
| Speed | 12 |
| Rims | Race Face AR 30c Tubeless Ready |
| Front Tyre | Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR |
| Rear Tyre | Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR |
| Seat Post | OC Mountain Control MC21, 31.6mm, Dropper |
| Saddle | Fizik Terra Ridon X5 145mm |
| Chainset | SRAM Descendant 6K Eagle Dub 32t |
| Chain | SRAM NX Eagle 12-Speed |
| Cassette | SRAM PG-1230 Eagle 11-50t 12-Speed |
| Pedals | Resin Platform |
Orbea Occam SL 2024 Size Chart
| Size | Min Height cm | Max Height cm | Min height feet | Max height feet |
| S | 150 | 170 | 4'11" | 5'7" |
| M | 160 | 180 | 5'3" | 5'11" |
| L | 170 | 190 | 5'7" | 6'3" |
| XL | 180 | 200 | 5'11" | 6'7" |
What size frame do I need if I am between sizes? - read here
Orbea Occam SL 2024 Geometry
|
Size |
S |
M |
L |
XL |
|
Seat Tube (C-T) |
405 |
415 |
430 |
460 |
|
Top Tube (Eff) |
570 |
596 |
622 |
649 |
|
Head Tube |
95 |
100 |
110 |
120 |
|
Chainstay |
440 |
440 |
440 |
440 |
|
Bb Height |
341 |
341 |
341 |
341 |
|
Bb Drop* |
37 |
37 |
37 |
37 |
|
Wheelbase |
1191 |
1218 |
1245 |
1276 |
|
Head Angle |
65.5° |
65.5° |
65.5° |
65.5° |
|
Seat Angle |
78° |
78° |
78° |
78° |
|
Reach |
440 |
465 |
490 |
515 |
|
Stack |
611 |
615 |
624 |
633 |
|
Fork Length |
554 |
554 |
554 |
554 |
|
Rake |
44 |
44 |
44 |
44 |
|
Seatpost min insertion |
410 |
420 |
435 |
460 |
