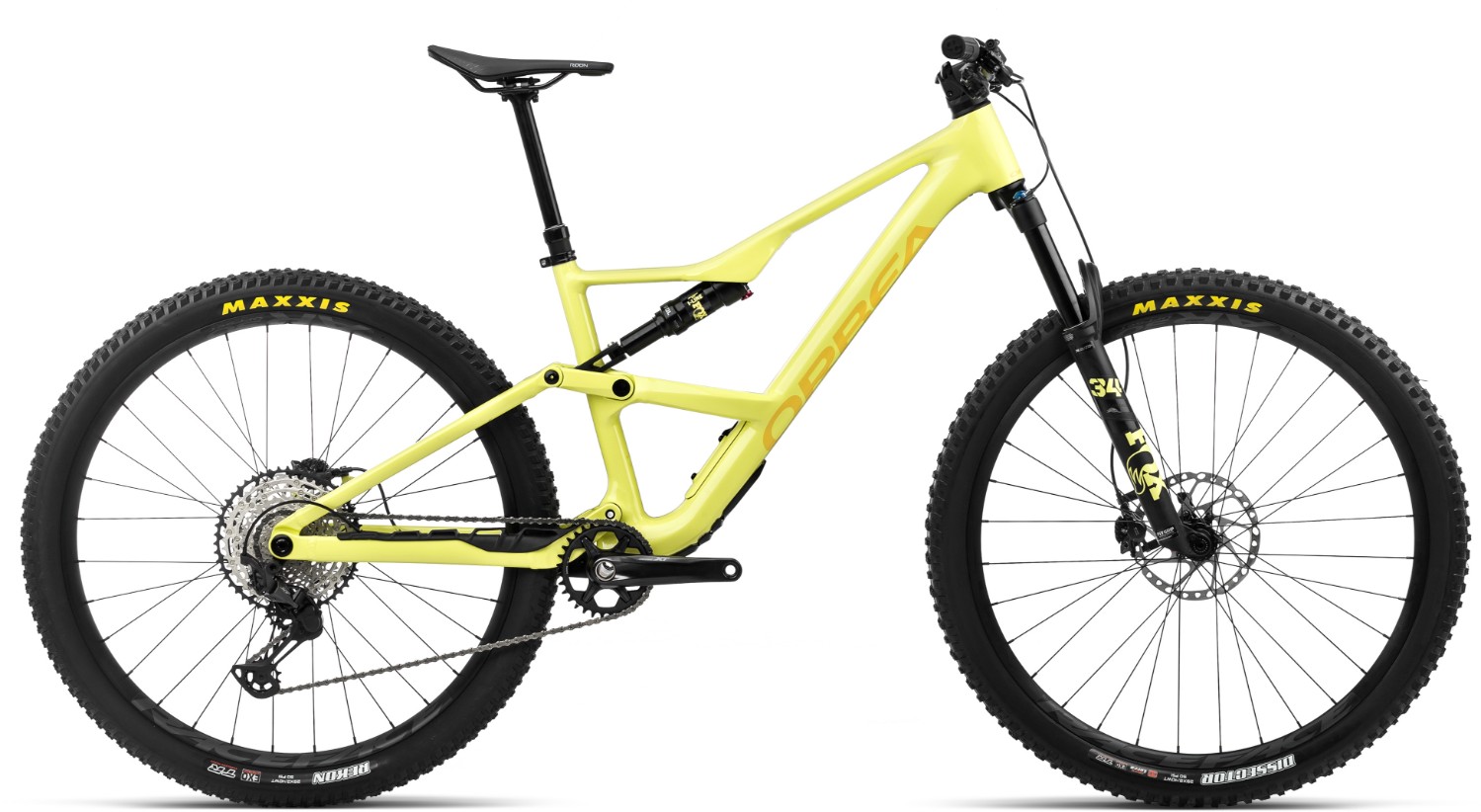

Orbea Occam SL H10 Mountain Bike 2024 - Trail Full Suspension MTB
The Orbea Occam SL H10 full-suspension MTB is your passport to trail supremacy. Expertly crafted with cycling precision, this mountain bike excels across various terrains. The Orbea Occam Hydro frame, boasting a Concentric Boost 12x148 rear axle, ensures unrivaled stability and control. Its pure trail geometry, internal cable routing, and asymmetric design optimize performance. Equipped with a Fox 34 Float Performance fork delivering 140mm of front suspension travel and a Fox Float Performance rear shock with custom tune and 210x50mm dimensions, this bike offers an incredibly smooth and responsive ride.
Key Features:
- Frame: Orbea Occam Hydro with Concentric Boost 12x148 rear axle, pure trail geometry, and internal cable routing.
- Front Suspension: Fox 34 Float Performance 140 with remote push-lock QR15x110 for precision handling.
- Rear Suspension: Fox Float Performance with remote push-lock Evol custom tune and 210x50mm dimensions.
- Drivetrain: Shimano XT M8100 components for seamless gear changes.
- Brakes: Shimano XT M8100 hydraulic disc brakes provide reliable stopping power.
- Wheels: Race Face AR 30C tubeless-ready rims ensure durability and control.
- Tyres: Maxxis Dissector 2.40" 60 TPI 3C Maxx Terra EXO TLR tires offer exceptional traction.
- Standout Feature: Versatile design for conquering diverse terrains.
- Finance Options: Available with 0% APR finance for your convenience.
The Orbea Occam SL H10 is designed for riders who demand versatility and top-tier performance. It's adaptable to both 140mm and 150mm of front and rear travel, making it a trail powerhouse. Whether you prefer an air or coil shock, this bike's progressive rear suspension has you covered.
Experience the thrill of tackling technical descents, conquering steep climbs, and navigating flowy trails with precision. With its adaptability and precision engineering, the Occam SL H10 is your ultimate trail companion.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Occam Hydro. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels. Linkage compatible with OC multitool |
| Fork | Fox 34 Float Performance 140 Remote Push-lock QR15x110 |
| Rear Shock | Fox Float Performance Remote Push-lock Evol custom tune 210x50mm |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Stem | OC Mountain Control MC20, 0º |
| Bars | OC Mountain Control MC30, Rise20, Width 800 |
| Front Brake | Shimano XT M8100 Hydraulic Disc |
| Rear Brake | Shimano XT M8100 Hydraulic Disc |
| Brake Lever | Shimano XT M8100 |
| Rear Mech | Shimano XT M8100 SGS Shadow Plus |
| Shifters | Shimano XT M8100 I-Spec EV |
| Speed | 12 |
| Rims | Race Face AR 30c Tubeless Ready |
| Front Tyre | Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR |
| Rear Tyre | Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR |
| Seat Post | OC Mountain Control MC21, 31.6mm, Dropper |
| Saddle | Fizik Terra Ridon X5 145mm |
| Chainset | Shimano XT M8120 32t |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Pedals | Resin Platform |
Orbea Occam SL 2024 Size Chart
| Size | Min Height cm | Max Height cm | Min height feet | Max height feet |
| S | 150 | 170 | 4'11" | 5'7" |
| M | 160 | 180 | 5'3" | 5'11" |
| L | 170 | 190 | 5'7" | 6'3" |
| XL | 180 | 200 | 5'11" | 6'7" |
What size frame do I need if I am between sizes? - read here
Orbea Occam SL 2024 Geometry
|
Size |
S |
M |
L |
XL |
|
Seat Tube (C-T) |
405 |
415 |
430 |
460 |
|
Top Tube (Eff) |
570 |
596 |
622 |
649 |
|
Head Tube |
95 |
100 |
110 |
120 |
|
Chainstay |
440 |
440 |
440 |
440 |
|
Bb Height |
341 |
341 |
341 |
341 |
|
Bb Drop* |
37 |
37 |
37 |
37 |
|
Wheelbase |
1191 |
1218 |
1245 |
1276 |
|
Head Angle |
65.5° |
65.5° |
65.5° |
65.5° |
|
Seat Angle |
78° |
78° |
78° |
78° |
|
Reach |
440 |
465 |
490 |
515 |
|
Stack |
611 |
615 |
624 |
633 |
|
Fork Length |
554 |
554 |
554 |
554 |
|
Rake |
44 |
44 |
44 |
44 |
|
Seatpost min insertion |
410 |
420 |
435 |
460 |
