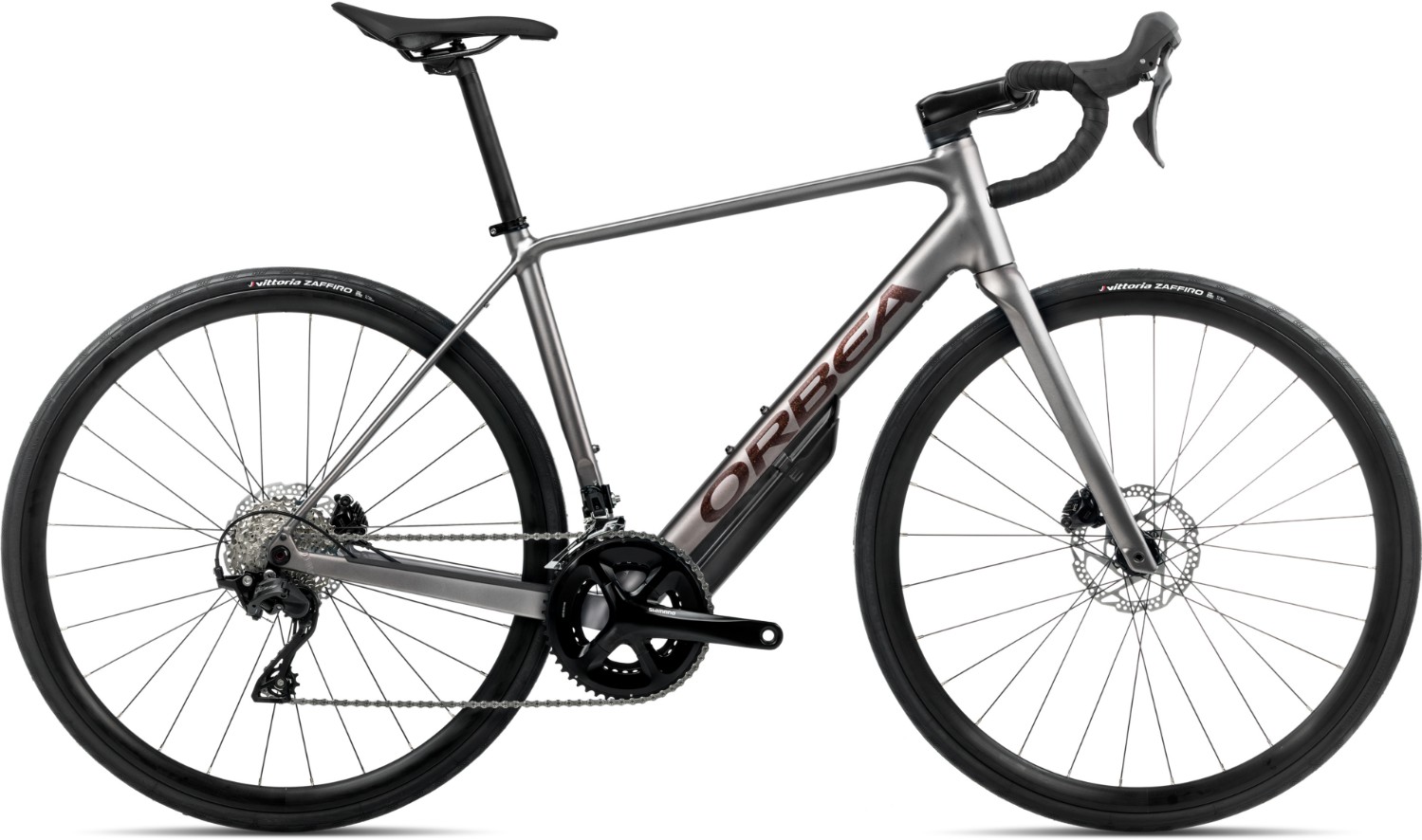

Orbea Avant H30 2025 - Road Bike
Leave the saddle bag at home with the made-to-measure Service box. There is space for necessities like tubes, CO2 cartridges, tire levers and house keys. Leave the saddle bag at home with the made-to-measure Service box. There is space for necessities like tubes, CO2 cartridges, tire levers and house keys. The OMR carbon fork saves weight, and the carbon structure we use helps absorb vibrations without compromising rigidity under braking or hard cornering.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system. |
Fork | Orbea Avant Hydro 2025, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1 |
Headset | FSA 1-1/2" Integrated Aluminium Cup |
Stem | OC Road Performance RP22, -5º |
Bars | OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125 |
Front Brake | Shimano R7170 Hydraulic Disc |
Rear Brake | Shimano R7170 Hydraulic Disc |
Front Mech | Shimano 105 R7100 |
Rear Mech | Shimano 105 R7100 |
Shifters | Shimano R7120 |
Speed | 24 |
Rims | Alloy, Tubeless, 700c, 19c, 28H |
Front Hub | Orbea Thru Axle 12x100mm M12x2 P1 Solid |
Rear Hub | Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded |
Front Tyre | Vittoria Zafiro V Rigid bead 700x28c |
Rear Tyre | Vittoria Zafiro V Rigid bead 700x28c |
Seat Post | SP 0.6, Alloy, 27.2mm, Setback 20 |
Saddle | Fizik Aliante R5 |
Chainset | Shimano RS520 34x50t |
Chain | Shimano M6100 |
Cassette | Shimano 105 R7100 11-34t 12-Speed |
Pedals | Resin Platform |
Avant Sizing
See the table below to find the right size Orbea Avant.
Size |
47 |
49 |
51 |
53 |
55 |
57 |
60 |
Height in CM |
155-160 |
160-166 |
167-172 |
173-179 |
180-185 |
186-191 |
192-207 |
Height in Inches |
61.1”-63.0” |
63.0”-65.4” |
65.7”-67.7” |
68.1”-70.5” |
70.9”-72.8” |
73.2”-75.2” |
75.6”-81.5” |
Read our bike size guide for more information on sizing.
Avant Geometry
|
47 |
49 |
51 |
53 |
55 |
57 |
60 |
Seat Tube |
410 |
440 |
470 |
490 |
510 |
530 |
560 |
Top Tube |
508 |
520 |
533 |
547 |
559 |
578 |
592 |
Head Tube |
108 |
121 |
138 |
158 |
181 |
200 |
221 |
Chainstay |
415 |
415 |
415 |
415 |
415 |
415 |
415 |
BB Height |
270 |
270 |
270 |
272 |
272 |
272 |
272 |
BB Drop |
75 |
75 |
75 |
73 |
73 |
73 |
73 |
Wheelbase |
978 |
979 |
989 |
992 |
1002 |
1013 |
1025 |
Head Angle |
71 |
71.5 |
71.9 |
72.4 |
72.6 |
72.8 |
73 |
Seat Angle |
74.5 |
74 |
73.75 |
73.5 |
73.5 |
73 |
73 |
Reach |
727.5 |
750 |
771.6 |
797.3 |
814 |
832,4 |
857,3 |
Standover |
520 |
535 |
553 |
572 |
595 |
614 |
635 |
Stack |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
Read our Road Bike Geometry Explained guide for more information on Road geometry.
