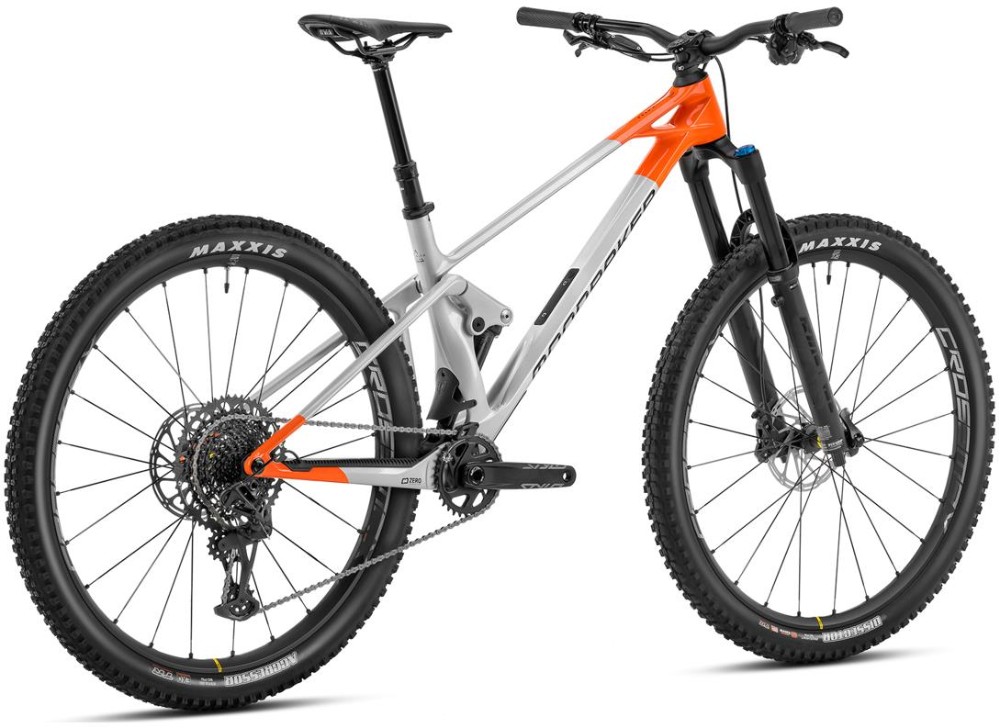

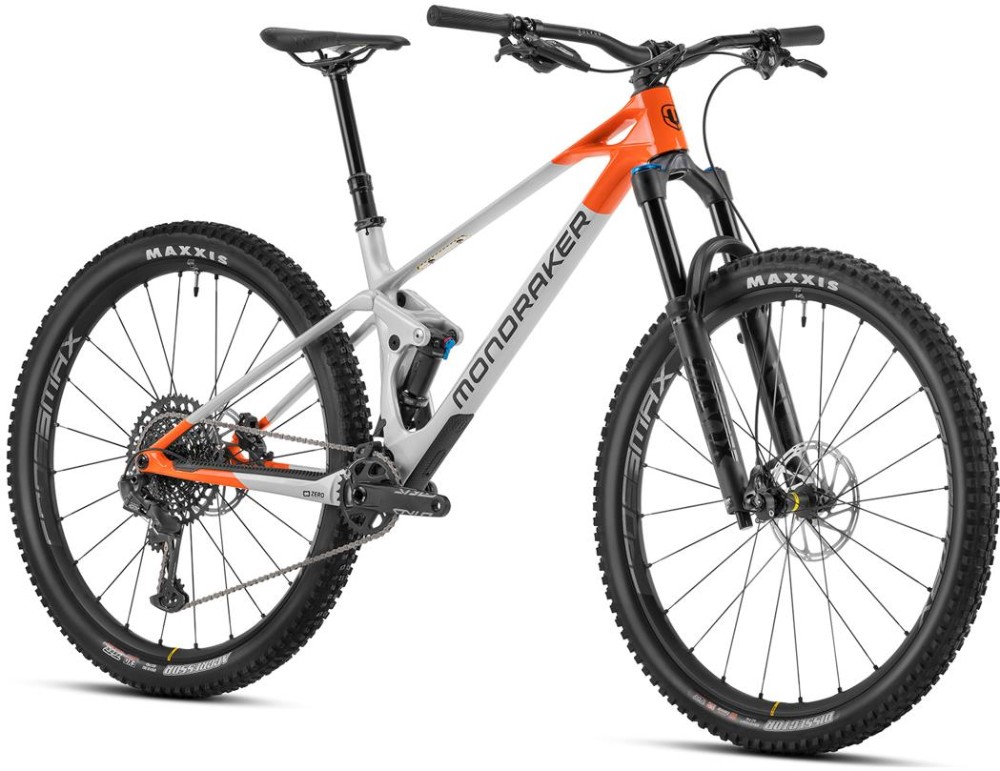

Mondraker Raze Carbon R Mountain Bike 2023 - Trail Full Suspension MTB
The Raze Carbon R full-suspension mountain bike is the ideal bike if you want an aggressive trail bike which also pedals really really well. Its standout climbing characteristics mean that the only limit to your climbs will be your legs. Its effectiveness going up is unquestionable but best of all is that when you point it downwards it’s an amazing tool for the job. Its shock absorption, lightness and rigidity make it the best all-purpose bike bar none. Mondraker’s exclusive Stealth Air Full Carbon, Zero Suspension System, forward geometry and MIND technologies are of course also present in the Carbon R.
Key features:
- Raze 29 Stealth Air full Carbon frame
- Fox 36 29 Float GRIP EVOL Performance forks with 150mm of bump soaking travel
- Fox Float DPS LV EVOL Performance shock takes care of the 130mm of rear travel
- Sram 1x12 gears give enough range to climb anything
- Sram G2 brakes offer all-weather stopping power
- Sizes: S, M, L, XL
- Colours: Silver/Orange
- The Mondraker Raze Carbon R is available with 0% APR Finance
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, dedicated 1x drivetrain design, HHG internal cable routing |
| Fork | Fox 36 29 Float GRIP EVOL Performance, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| Rear Shock | Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 30x8mm bottom bushings |
| Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Bars | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Front Brake | Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Brake Lever | Sram G2, SwingLink, tool-free reach adjust |
| Rear Mech | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Shifters | Sram Trigger NX Eagle, 12s, X-Actuation 1:1 |
| Speed | 12 |
| Rims | Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes |
| Front Hub | Infinity hub, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts |
| Spokes | 24 straight-pull double butted spokes |
| Front Tyre | Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Rear Tyre | Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead |
| Seat Post | Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
| Saddle | Fizik Antares R7 |
| Chainset | Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm . 32T, CNC-machined alloy, X-SYNC 2 |
| Bottom Bracket | Sram DUB BSA, sealed bearings, 73mm |
| Chain | Sram NX Eagle, 12s, Powerlock |
| Cassette | Sram XG-1275, 10-52T, 12s |
| Pedals | Resin Platform |
Mondraker Raze Size Chart
|
Size |
Height (cm) |
Height (feet) |
|
S |
162 – 170 cm |
5’4” – 5’7” |
|
M |
167 – 180 cm |
5’6” – 5’11” |
|
L |
175 – 187 cm |
5’9” – 6’2” |
|
XL |
185 – 198cm |
6’1” – 6’6” |
What size frame do I need if I am between sizes? - read here
