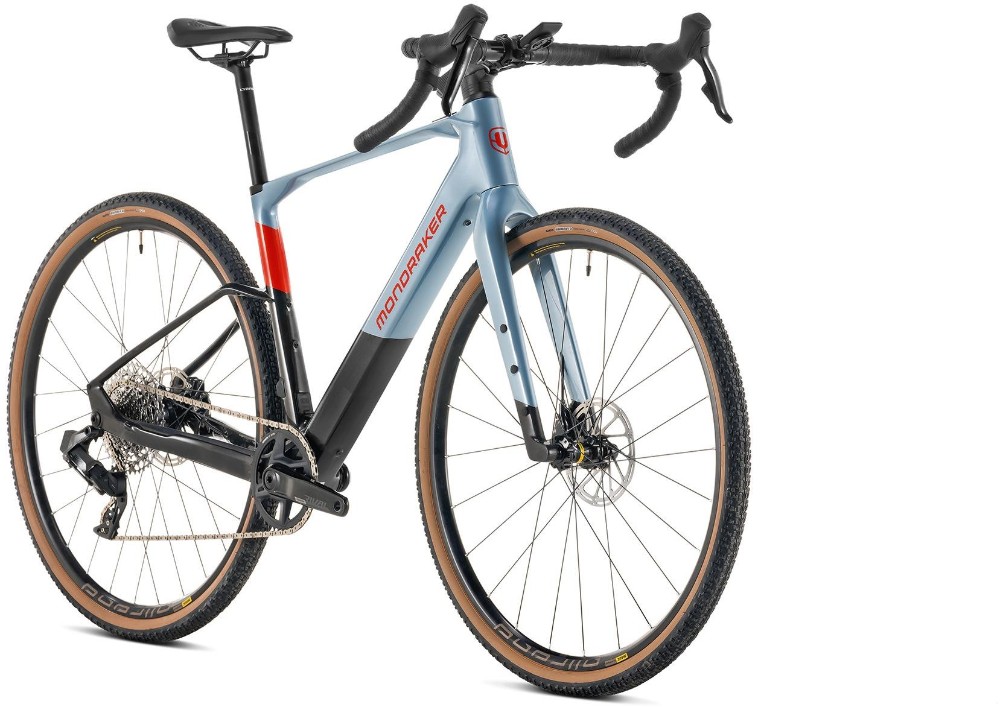

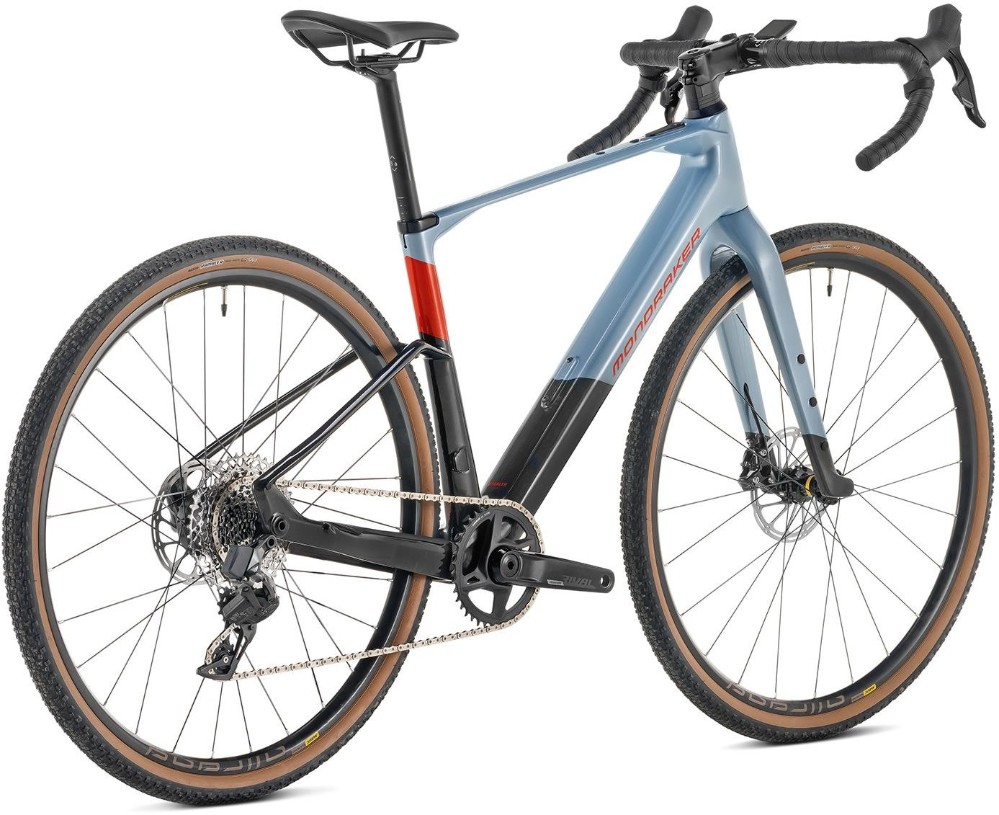

Mondraker Dusty RR 2023 - Electric Gravel Bike
The Mondraker DUSTY RR features an SRAM RIVAL ETAP 1x12 drivetrain, Mavic Allroad Disc wheels, 40mm Maxxis Rambler EXO tires and ONOFF components.
The rapid evolution of gravel bikes over the last few years hasn’t gone unnoticed at Mondraker. The Gravel category, which has seen unstoppable growth via different disciplines and different types of users, has meant a return to their origins for many people. Origins based on fun, the ability to go further, and the pleasure of pedalling over more complicated terrain. All of this with a very marked off-road character, something which is in perfect alignment with the philosophy we here at Mondraker apply to all of our mountain bikes.
The total versatility of a dusty
The DUSTY is the perfect concept of an e-Gravel bike designed to encompass the three most in-demand disciplines of gravel bikes, adventure, long distance and technical terrain riding.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Dusty Stealth Air Carbon, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor. |
| Fork | Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork |
| Headset | OnOff gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Stem | OnOff gravel 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 70mm, size L: 80mm, XL: 90mm |
| Bars | OnOff Barium gravel 18º bar flare. Width sizes S/M: 440mm, size L/XL: 460mm |
| Front Brake | Sram Rival Etap AXS 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Rival Etap AXS, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Brake Lever | Sram Rival, contact point adjustment, tooled reach adjust, plastic levers |
| Rear Mech | Sram Rival XPLR Etap AXS, 12s |
| Shifters | Sram Rival Etap AXS 12s, X-Actuation 1:1, single click |
| Speed | 12 |
| Rims | Mavic Allroad Disc, UST, 22mm internal width, hookless, infinity hubs, 24 spokes |
| Front Hub | Mavic, 12x100mm, IS 6 bolts |
| Rear Hub | Mavic X20, 12x142mm, XD ID360 Ratchet system, IS 6 bolts |
| Spokes | Steel double butted flat spokes |
| Front Tyre | Maxxis Rambler 700x40, tubeless ready, dual compound EXO protection, 60 TPI, folding bead, tan wall |
| Rear Tyre | Maxxis Rambler 700x40, tubeless ready, dual compound EXO protection, 60 TPI, folding bead, tan wall |
| Seat Post | OnOff Barium gravel carbon microadjust diameter 27.2mm, length 400mm |
| Saddle | FIZIK Terra Argo X7 150mm |
| Chainset | Sram Rival 1 DUB GLS Wide, S: 170mm, M/L: 172,5mm, XL: 175mm.. Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide, |
| Bottom Bracket | Mahle pressfit, sealed bearings, w/ torque sensor |
| Chain | Sram Rival, 12s, Powerlock |
| Cassette | Sram XG-1251 10-44T, 12s |
| Pedals | Resin Platform |
| Battery Size (WH) | Mahle X20 IX350Wh |
| Motor | Mahle X20 Drive Unit |
| User Interface | Pulsar One Wireless |
Mondraker Dusty X Unlimited Gulf 2025 Size Chart
|
Size |
Height (cm) |
Height (feet) |
|
S |
162 – 170 cm |
5’4” – 5’7” |
|
M |
167 – 180 cm |
5’6” – 5’11” |
|
L |
175 – 187 cm |
5’9” – 6’2” |
|
XL |
185 – 198cm |
6’1” – 6’6” |
Mondraker Dusty X Unlimited Gulf 2025 Geometry Chart
| Size | S | M | L | XL |
|---|---|---|---|---|
| Stack | 548 | 576 | 595 | 628 |
| Reach | 393 | 405 | 424 | 440 |
| Head Tube Length | 125 | 135 | 155 | 175 |
| Head Tube Angle | 70° | 70° | 70° | 70° |
| Seat Tube Length | 440 | 460 | 500 | 530 |
| Seat Tube Angle | 74° | 74° | 74° | 74° |
| Wheelbase | 1034 | 1056 | 1082 | 1110 |
| Top Tube Length (horizontal) | 550 | 570 | 595 | 620 |
| Chainstay Length | 425 | 425 | 425 | 425 |
| Fork Offset | 45 | 45 | 45 | 45 |
| Fork Height | 420 | 420 | 420 | 420 |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
