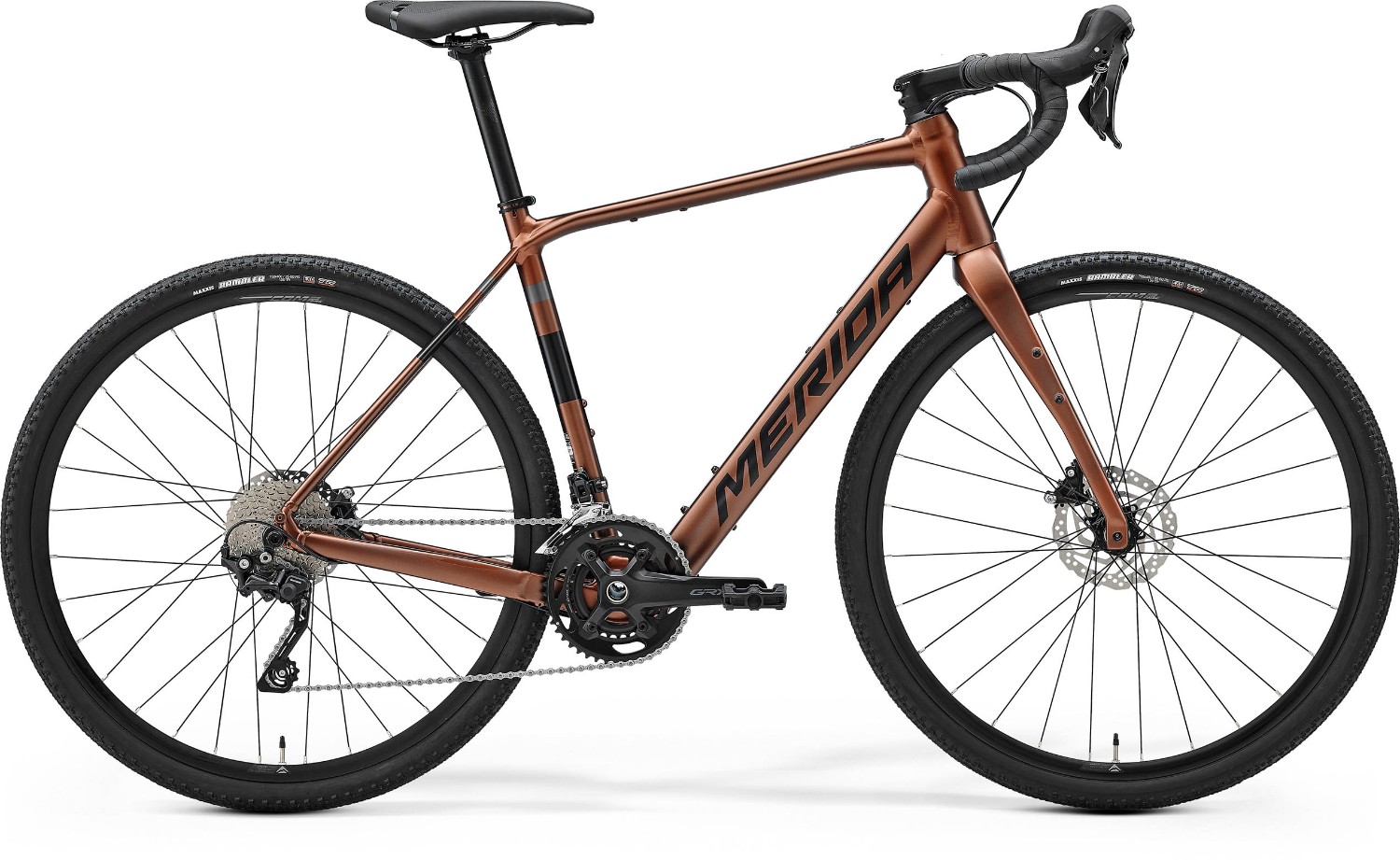

Merida eSilex 400 2024 - Electric Gravel Bike
The Merida eSilex 400 combines the capability of a gravel bike with the convenience of an e-bike. Its lightweight aluminium frame and carbon fork are paired with a MAHLE X35+ hub motor, providing 40Nm of torque for smooth, seamless assistance. Equipped with Shimano GRX components and powerful hydraulic disc brakes, it’s designed to handle everything from bikepacking adventures to daily commutes.
Key Features:
- Frame: Hydroformed 6066 triple butted aluminium with integrated battery chamber, mudguard/rack mounts.
- Fork: Merida Silex CF2 carbon fork with tapered steerer for precise handling.
- Drivetrain: Shimano GRX 400 20-speed for smooth shifting and versatility on varied terrain.
- Brakes: Shimano GRX400 hydraulic disc brakes with 160mm rotors for all-weather stopping power.
- Wheels: Merida Comp SL aluminium wheels, 700c with Maxxis Rambler 40c tyres.
- Standout feature: Multiple mounts for bikepacking and adventure, integrated battery design.
- Finance: Available with 0% APR finance.
Drive Information:
- Motor: MAHLE X35+ hub motor, 40Nm torque for smooth, efficient assistance.
- Battery: 250Wh integrated battery for long-range support, compatible with optional range extender.
- User Interface: MAHLE control with remote switch and integrated display.
The Merida eSilex 400 is perfect for riders who love to explore beyond the beaten path. Its lightweight hydroformed aluminium frame houses a fully integrated 250Wh MAHLE battery, which can be extended with an additional 208Wh range extender for those longer rides. The MAHLE X35+ hub motor offers 40Nm of torque, delivering a subtle push when you need it, without overpowering your ride.
With Shimano’s reliable GRX 400 drivetrain and brakes, this e-bike ensures smooth shifting and powerful braking on gravel roads and beyond. The wide Maxxis Rambler tyres offer excellent grip and comfort, making the eSilex 400 an ideal companion for bikepacking adventures or exploring unknown trails. Whether you're commuting or seeking a weekend escape, the eSilex 400 has the range, comfort, and versatility to take you further.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite II - Hydroformed 6066 triple butted aluminium with integrated battery chamber, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max. tyre size 700 x 45c without mudguards, 700 x 42c with mudguards |
| Fork | Merida Silex CF2; Tapered; carbon, Max. tyre size: 700 x 42c without mudguards, 700 x 35c with Mudguards. Max 27.5" x 50c |
| Headset | Merida 8158 |
| Stem | Merida Expert IR II; aluminium; 31.8mm diameter; 5 degree rise; length: 80mm all sizes |
| Bars | Merida Expert GRII; aluminium; 400mm (XS/S), 420mm (M), 440mm (L/XL) |
| Front Brake | Shimano GRX400 2 piston hydraulic disc brake caliper with Shimano RT10 160mm rotor |
| Rear Brake | Shimano GRX400 2 piston hydraulic disc brake caliper with Shimano RT26 160 mm rotor |
| Brake Lever | Shimano GRX400 |
| Front Mech | Shimano GRX400 |
| Rear Mech | Shimano GRX400 |
| Speed | 20 |
| Rims | Merida Comp SL; 17mm inner rim width; 22mm rim depth; aluminium |
| Front Hub | VP CLK170F; 100 x 12mm; 32 spokes; centerlock with Merida Expert SL axle |
| Rear Hub | MAHLE X35+ Hub motor; 40Nm |
| Spokes | Black stainless |
| Front Tyre | Maxxis Rambler 700 x 40c; Kevlar bead, folding; EXO |
| Rear Tyre | Maxxis Rambler; 700 x 40C; Kevlar bead, folding; EXO |
| Seat Post | Merida Expert; aluminium; 30.9mm diameter; in-line |
| Saddle | Merida Comp CC; V-mount |
| Chainset | Shimano GRX600; 46-30 tooth chainset with 170 mm-XS/S, 172,5 mm-M, 175 mm-L/XL crank |
| Bottom Bracket | Shimano BSA |
| Chain | KMC E10S |
| Cassette | Shimano CS-HG50; 11-36 teeth; 10 speed |
| Pedals | Resin Platform |
| Battery Size (WH) | Mahle B1-D 250Wh |
| Motor | MAHLE X35+ Hub Engine 40Nm |
Merida Silex 2024 Sizing
|
|
XS |
S |
M |
L |
XL |
|
Rider Height (Inch) |
5’3" – 5’5” |
5’4" – 5’9” |
5’7" – 5’11” |
5’10" – 6’2” |
6'1" – 6’5” |
|
Ride Height (cm) |
162 - 167 |
165 - 177 |
173 - 185 |
181 - 192 |
188 - 200 |
Merida Silex 2024 Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| TYRE SIZE | 28" | 28" | 28" | 28" | 28" |
| SEAT TUBE LENGTH | 440mm | 470mm | 500mm | 530mm | 560mm |
| TOP TUBE LENGTH | 550mm | 565mm | 580mm | 600mm | 620mm |
| CHAIN STAY LENGTH | 430mm | 430mm | 430mm | 430mm | 430mm |
| HEAD TUBE ANGLE | 69.5 deg | 69.5 deg | 69.5 deg | 69.5 deg | 69.5 deg |
| SEAT TUBE ANGLE | 74.5 deg | 74.5 deg | 74.5 deg | 74.5 deg | 74.5 deg |
| BOTTOM BRACKET DROP | 75mm | 75mm | 75mm | 75mm | 75mm |
| HEAD LENGTH | 130mm | 150mm | 170mm | 190mm | 210mm |
| FORK LENGTH | 415mm | 415mm | 415mm | 415mm | 415mm |
| REACH | 392mm | 402mm | 412mm | 426mm | 441mm |
| STACK | 570mm | 588mm | 607mm | 626mm | 645mm |
| WHEEL BASE | 1048mm | 1065mm | 1082mm | 1104mm | 1126mm |
| STAND OVER HEIGHT | 744mm | 771mm | 798mm | 825mm | 852mm |
