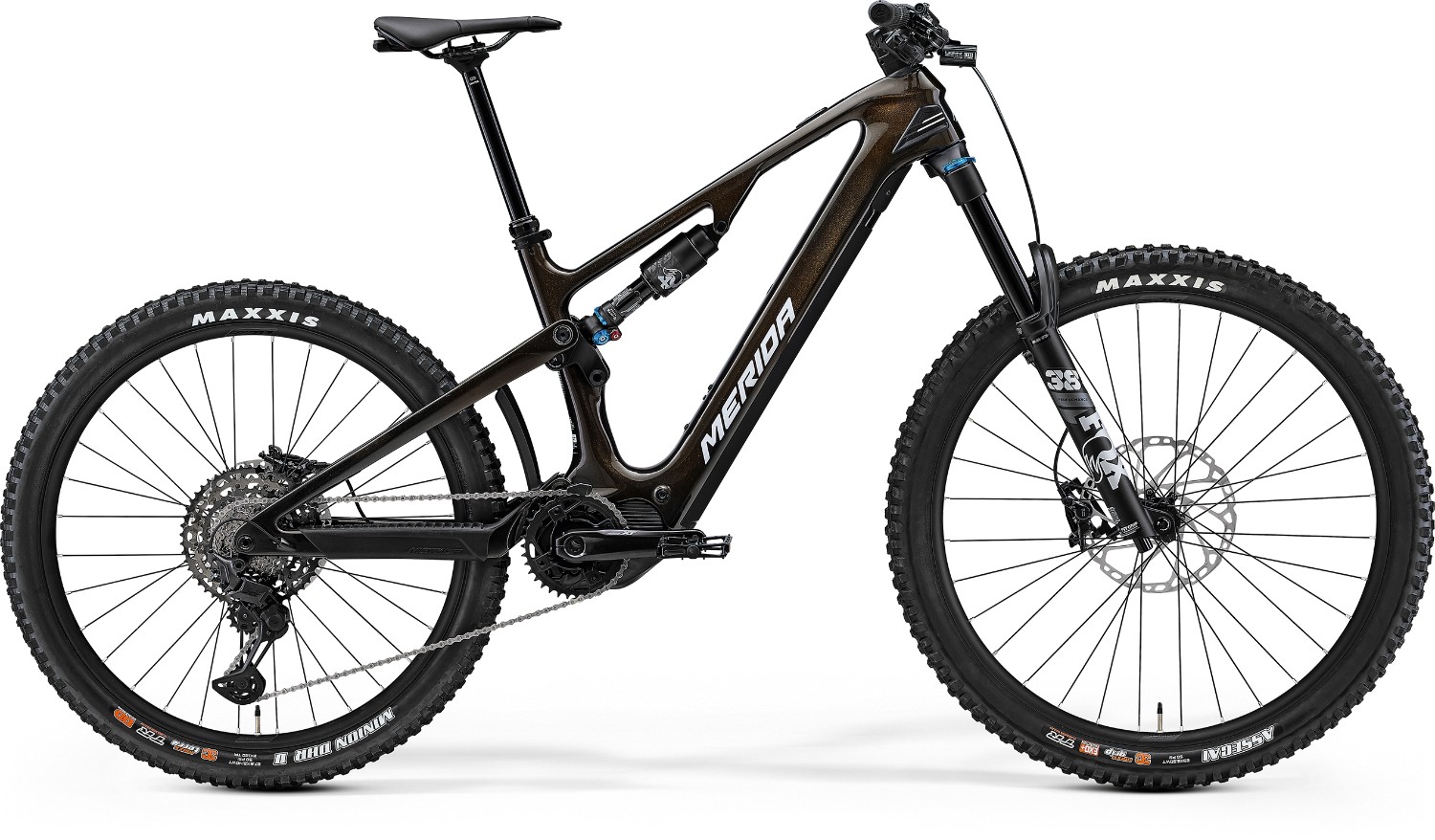

Merida eOne-Sixty CF 7000 2024 - Electric Mountain Bike
The Merida eOne-Sixty CF 7000 is a game-changer. With 170mm front travel from the Fox 38 Performance EMTB+ fork and 174mm rear travel with the Fox Float X Performance shock, this bike handles both race tracks and trail adventures with ease.
Key Features:
- Frame: Lightweight Eone-sixty CF III carbon; 160mm travel; 29” x 2.6” max. tire size; 148x12 AST; InTube battery with max. 630Wh.
- Front Suspension: Fox 38 Performance EMTB+; air; 170mm travel; 44mm fork offset; max. tyre size 29" x 2.6".
- Rear Suspension: Fox Float X Performance; 2-pos lever; 174mm travel.
- Drivetrain: Shimano XT 11-speed; Shimano XT 4-piston hydraulic disc brakes.
- Wheels: Merida Expert TR II; 28mm inner rim width; front 29", rear 27.5"; Maxxis Assegai/Minion DHR II tyres.
- Standout Feature: Merida flip chip design for versatile wheel size configurations.
- Finance Option: Available with 0% APR finance.
Drive Information:
- Motor: Shimano Steps EP801; 85Nm.
- Battery: Simplo Trend Power internal battery; 600Wh.
- User Interface: Shimano SC-EM800 display and remote switch.
The Shimano XT 4-piston hydraulic disc brakes, paired with 29"/27.5" Merida Expert TR II wheels, ensure responsive braking and superior traction. The standout feature is the Merida flip chip design, allowing for mixed wheel sizes or a full 29er setup without compromising geometry.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | eONE-SIXTY CF III; MAT carbon; 160 STR; 29” x 2,6” max. WHS; 148x12 AST; intube; max. 630 Wh |
| Fork | FOX 38 Performance eMTB+; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.6" |
| Rear Shock | FOX Float X Performance; 2 Pos Lever |
| Headset | Acros ICR Merida integrated neck w/ Blocklock |
| Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point. |
| Bars | Merida Expert eTR; 780mm wide; 20mm rise |
| Front Brake | Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor |
| Rear Brake | Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT-EM600 203mm rotor |
| Brake Lever | Shimano XT |
| Rear Mech | Shimano XT RDM8130 LinkGlide 11 speed |
| Shifters | Shimano XT M8130 and Shimano SL -MT500-IL dropper lever |
| Speed | 11 |
| Rims | Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5" |
| Front Hub | Shimano XT; 110 x 15mm; 32 spokes; Centerlock |
| Rear Hub | Shimano XT; 148 x 12mm, 32 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key |
| Spokes | Black stainless |
| Front Tyre | Maxxis Assegai; 29" x 2.5"; Kevlar bead; folding; TR EXO+ 3C MaxxGrip |
| Rear Tyre | Maxxis DHR II; 27.5" x 2.6"; Kevlar bead, folding; 3C EXO+ TR |
| Seat Post | Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel |
| Saddle | Proxim W400 T2.0 with V-mount adapter; including Merida minitool |
| Chainset | FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-E8150 165mm length crank all sizes with MRP 1x chainguide |
| Bottom Bracket | Part of Shimano Steps motor |
| Chain | Shimano LG500 |
| Cassette | Shimano LG700; 10-50 teeth; 11 speed |
| Pedals | VP Components - VPE-527 |
| Battery Size (WH) | Simplo Trend Power internal battery; 600Wh |
| Motor | Shimano Steps EP801; 85Nm |
| User Interface | Shimano SC-EM800 |
Merida eOne-Sixty Size Chart
|
Size |
Height cm |
Height feet & Inches |
|
XS |
157 – 165 |
5’1” – 5’5” |
|
S |
165 -171 |
5’5” – 5’7” |
|
M |
171 - 179 |
5’7” – 5’11” |
|
L |
179 - 187 |
5’11” – 6’2” |
|
XL |
187 - 198 |
6’2” – 6’6” |
What size frame do I need if I am between sizes? - read here
