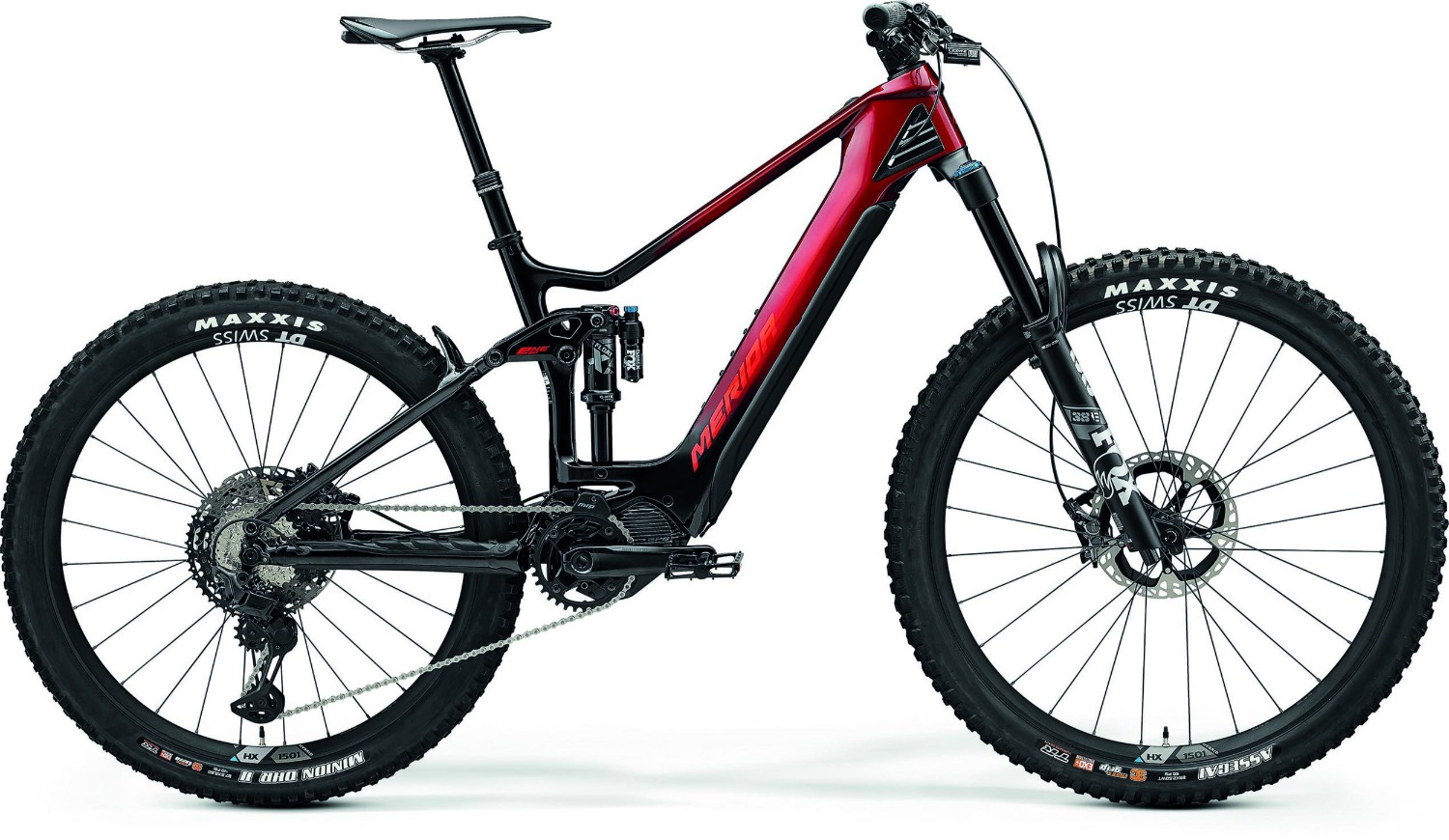

Merida eOne-Sixty 9000 2024 - Electric Mountain Bike
The Merida eOne-Sixty 9000 is designed to deliver an exceptional enduro riding experience. With its carbon frame, Shimano XT components, and mixed-wheel setup, this e-bike is engineered for precision handling, maximum traction, and ultimate durability on the toughest trails.
Key Features:
- Frame: CFA II carbon front with aluminium rear, integrated battery, and internal cable routing.
- Front Suspension: FOX 38 Elite eMTB+ Air fork, 160mm travel for smooth and controlled descents.
- Rear Suspension: FOX Float DPX2 Elite rear shock for responsive and stable handling.
- Drivetrain: Shimano XT 11-speed for precise and reliable shifting on challenging trails.
- Brakes: Shimano XT 4-piston hydraulic disc brakes with 203mm rotors for powerful stopping power.
- Wheels: DT Swiss Spline HX1501 ONE 30 boost wheels with Maxxis Assegai/DHR II tyres.
- Standout Feature: Shimano e-Tube app allows customisation of power delivery for tailored performance.
- Finance: Available with 0% APR finance options.
Drive Information:
- Motor: Shimano Steps DU-EP801, 85 Nm torque for powerful assistance on steep climbs.
- Battery: Shimano BT-EN806, 630 Wh capacity for extended trail adventures.
- User Interface: Shimano SC-EM800 display with remote switch for easy control and monitoring.
The Merida eOne-Sixty 9000 is the pinnacle of enduro e-MTB design, built to handle the most demanding trails with ease. Its carbon front triangle, combined with an aluminium rear, provides the perfect balance of lightweight agility and rugged durability. The bike's geometry, designed around the compact Shimano Steps motor, offers short chainstays for a nimble and natural ride feel, akin to a regular mountain bike.
The FOX 38 Elite eMTB+ fork with 160mm of travel ensures that you can tackle rough descents with confidence, while the FOX Float DPX2 Elite rear shock provides stability and traction, keeping you grounded and in control. The mixed-wheel setup, with a 29" front and 27.5" rear, is designed to maximise grip and rolling efficiency, making it perfect for technical and steep terrains.
One of the standout features of the eOne-Sixty 9000 is the Shimano e-Tube app, which allows you to tailor the motor’s power delivery to suit your riding style. Whether you’re looking for aggressive power on climbs or a more subdued assist for cruising, you can set up two distinct profiles to switch between on the fly.
The bike is also equipped with a robust Shimano XT drivetrain and hydraulic disc brakes, ensuring that shifting is crisp and braking is powerful and consistent, even in the most demanding conditions. The DT Swiss Spline HX1501 wheels, paired with Maxxis Assegai and DHR II tyres, offer the perfect combination of durability, traction, and precision handling.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | CFA II Carbon front with 6016 aluminium rear. Integrated battery. Satellite on/off switch, on-bike charging port, thermo gate. Internal cable routing. Tapered head tube, Internal Block. 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8". |
| Fork | FOX 38 Elite eMTB+ Air; 160mm travel; Tapered; 51mm fork offset. Max. tyre size: 29" x 2.6" |
| Rear Shock | FOX Float DPX2 Elite; platform |
| Headset | Merida-8152 |
| Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point. |
| Bars | Merida Expert eTR; 780mm wide; 20mm rise |
| Front Brake | Shimano XT; 4 piston hydraulic disc brake caliper with Shimano RT-MT900; 203mm rotor |
| Rear Brake | Shimano XT; 4 piston hydraulic disc brake caliper with Shimano RT-EM910; 203mm rotor |
| Brake Lever | Shimano XT |
| Rear Mech | Shimano XT RDM8130 Shadow+ 11 |
| Shifters | Shimano XT M8130 and Shimano SL -MT800-IL dropper lever |
| Speed | 11 |
| Rims | DT Swiss Spline HX1501 ONE 30 boost; 30mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves included) |
| Front Hub | Part of wheelset - DT Swiss Spline HX1501 ONE 30 boost; 110x15mm; center lock |
| Rear Hub | Part of wheelset - DT Swiss Spline HX1501 ONE 30 boost; 148x12mm; center lock; Merida Expert TR axle; including removable lever, 6/4mm allen key |
| Spokes | part of wheelset |
| Front Tyre | Maxxis Assegai; 29 x 2.5"; Kevlar bead, folding; TR EXO+ 3C MaxxGrip |
| Rear Tyre | Maxxis DHR II; 27.5" x 2.6"; Kevlar bead, folding; 3C EXO+ TR |
| Seat Post | Merida Expert TR; 30.9mm diameter; in-line; Drop: 100mm (XS), 125mm (S), 150mm (M), 170mm (L/XL) |
| Saddle | Merida Expert CC; V-mount including Merida multitool |
| Chainset | Shimano CRE80-B; 34 tooth chainring with Shimano FCEM900; hollow crank 165mm all sizes; MRP 1x chain device |
| Bottom Bracket | Part of Shimano Steps motor |
| Chain | CNLG500 |
| Pedals | VP Components, VPE-527 |
| Battery Size (WH) | Shimano BT-EN806; 630Wh internal battery, |
| Motor | Shimano Steps DU-EP801; 85Nm |
| User Interface | Shimano SC-EM800 |
Merida eOne-Sixty Size Chart
|
Size |
Height cm |
Height feet & Inches |
|
XS |
157 – 165 |
5’1” – 5’5” |
|
S |
165 -171 |
5’5” – 5’7” |
|
M |
171 - 179 |
5’7” – 5’11” |
|
L |
179 - 187 |
5’11” – 6’2” |
|
XL |
187 - 198 |
6’2” – 6’6” |
