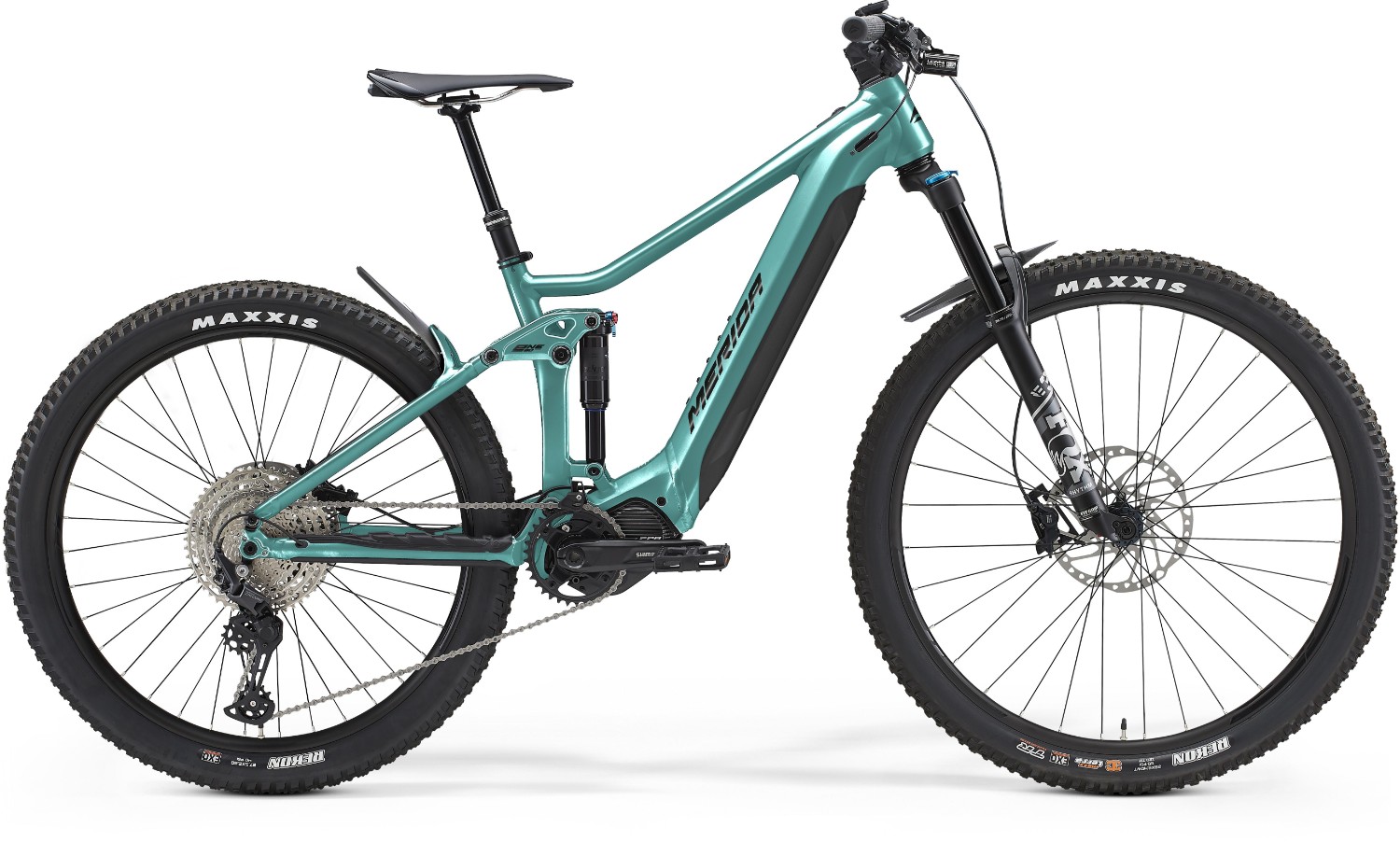

Merida eOne-Forty 500 2023 - Electric Mountain Bike
If you are looking for top descending performance that doesn't sacrifice the 'all day' riding abilities, then the Shimano STEPS EP8 powered Merida eOne-Forty with integrated battery technology is the perfect full suspension e-bike for you. A modern mountain bike geometry, inspired by its bigger brother, the eOne-Sixty, but with an even lower stand over height, steeper seat angle and slightly steeper head angle, combined with a balanced reach and a low bottom bracket, gives the bike maximum agility and fantastic climbing characteristics. Exactly what you are looking for in an all-day full suspension e-MTB.
Key features:
- Hydroformed 6061 double butted aluminium with intergrated battery frame
- Marzocchi Z2 eMTB+ forks with 140mm of bump soaking travel
- Suntour RS-Edge shock takes care of the 140mm of rear travel
- Shimano 1x11 gears give enough range to climb anything
- Shimano brakes offer all weather stopping power
- Sizes: M (41.5cm) , L (43cm) , XL (45cm) , XXL (47cm)
- Colours: Teal/Black
- The Merida EOne-Forty 500 is available with 0% APR finance
Drive information:
- Motor: Shimano E8036; 630Wh internal battery, Shimano Steps EP8; 85Nm
- Battery: 630 Wh (S frame size 540Wh)
- Interface: Shimano SC-E5003A
The eOne-Forty shares exactly the same frame and design features but has different ride characteristics.
The shock stroke on the eOne-Forty is shorter, reducing rear travel to 133mm and creating a steeper seat angle. The shorter 140mm fork extends the reach, delivering a slightly steeper head angle. In combination these small changes make the eOne-Forty more agile and playful; a highly competent climber that's perfect for all day riding.
The mixed wheel size set up is carried over, to give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, a 29er front wheel with a 2.5" tyre is combined with a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction.
All eOne-Forty models use the powerful Shimano EP8 85NM motor and bigger 630Wh battery (with the exception of frame size - S which uses 504Wh).
Shimano's e-Tube app allows you to tailor power delivery to suit your riding style; you can set two profiles; one for shredding and one for cruising.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite III - Hydroformed 6061 double butted aluminium with intergrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8". |
| Fork | Marzocchi Z2 eMTB+; Air; 140mm travel; Tapered; 51mm fork offset. Max. tyre size: 29" x 2.6" |
| Rear Shock | Suntour RS-Edge-TR-LO-R8-M6; lockout |
| Headset | Merida-8152 |
| Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm (all sizes). GoPro & Supernova mount point. |
| Bars | Merida Expert eTR; 780mm wide; 20mm rise |
| Front Brake | Shimano M4204; 4 piston hydraulic disc brake caliper with Shimano RT30; 203 mm rotor |
| Rear Brake | Shimano M4204; 4 piston hydraulic disc brake caliper with Shimano RTEM300; 203 mm rotor |
| Brake Lever | Shimano M4204 |
| Rear Mech | Shimano Deore RDM5100 11 |
| Shifters | Shimano Deore M5100 and Shimano SL-MT500-IL dropper post lever |
| Speed | 11 |
| Rims | Merida Comp TR; 29mm inner rim width; Aluminium |
| Front Hub | Shimano MT400-B; 110x15mm; 32 spokes; Center lock |
| Rear Hub | Shimano MT400-B; 148x12mm; 36 spokes; Center lock; including removable lever with 4/6mm Allen key |
| Spokes | Black stainless |
| Front Tyre | Maxxis Rekon; 29" x 2.4"; Dual; wire bead |
| Rear Tyre | Maxxis Rekon; 27.5" x 2.6"; EXO; wire bead |
| Seat Post | Merida Comp TR; 30.9mm diameter; in-line; Drop: 100mm (S), 125mm (M/L), 150mm (XL/XXL) |
| Saddle | Merida Comp SL; V-mount |
| Chainset | Shimano CRE70-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank |
| Bottom Bracket | Part of Shimano Steps motor |
| Chain | KMC e11S EPT |
| Cassette | Shimano M5100 11-51 teeth |
| Pedals | VP Components, VPE-537 |
| Battery Size (WH) | Shimano E8036; 630Wh internal battery |
| Motor | Shimano Steps EP8; 85Nm |
| User Interface | Shimano SC-E5003A |
Merida eOne-Forty Size Chart
|
Size |
Height cm |
Height feet & Inches |
|
S (41cm) |
157 – 166 |
5’1” – 5’5” |
|
M (42cm) |
166 -173 |
5’5” – 5’8” |
|
L (43cm) |
173 - 180 |
5’8” – 5’11” |
|
XL (45cm) |
180 - 186 |
5’11” – 6’1” |
|
XXL (47cm) |
186 - 198 |
6’1” – 6’6” |
Merida eOne-Forty Geometry
|
Frame Size |
S |
M |
L |
XL |
XXL |
|
Tire Sizes |
29/27.5" |
29/27.5" |
29/27.5" |
29/27.5" |
29/27.5" |
|
Frame Size cm |
41 |
42 |
43 |
45 |
47 |
|
St Seat Tube mm |
405 |
415 |
430 |
450 |
470 |
|
Top Tube mm |
561 |
581 |
603 |
624 |
645 |
|
Chain Stay Length mm |
439.5 |
439.5 |
439.5 |
439.5 |
439.5 |
|
Head Tube Angle |
66.5° |
66.5° |
66.5° |
66.5° |
66.5° |
|
Seat Tube Angle |
76.5° |
76.5° |
76.5° |
76.5° |
76.5° |
|
Bottom Bracket Drop mm |
25 |
25 |
25 |
25 |
25 |
|
Head Tube mm |
110 |
115 |
120 |
125 |
130 |
|
Fork Length mm |
551 |
551 |
551 |
551 |
551 |
|
Reach mm |
410 |
430 |
450 |
469 |
489 |
|
S Stack mm |
622 |
627 |
631 |
635 |
640 |
|
Wheelbase mm |
1160 |
1182 |
1204 |
1226 |
1248 |
|
Stand Over Height mm |
729 |
730 |
727 |
733 |
747 |
What size frame do I need if I am between sizes? - read here
