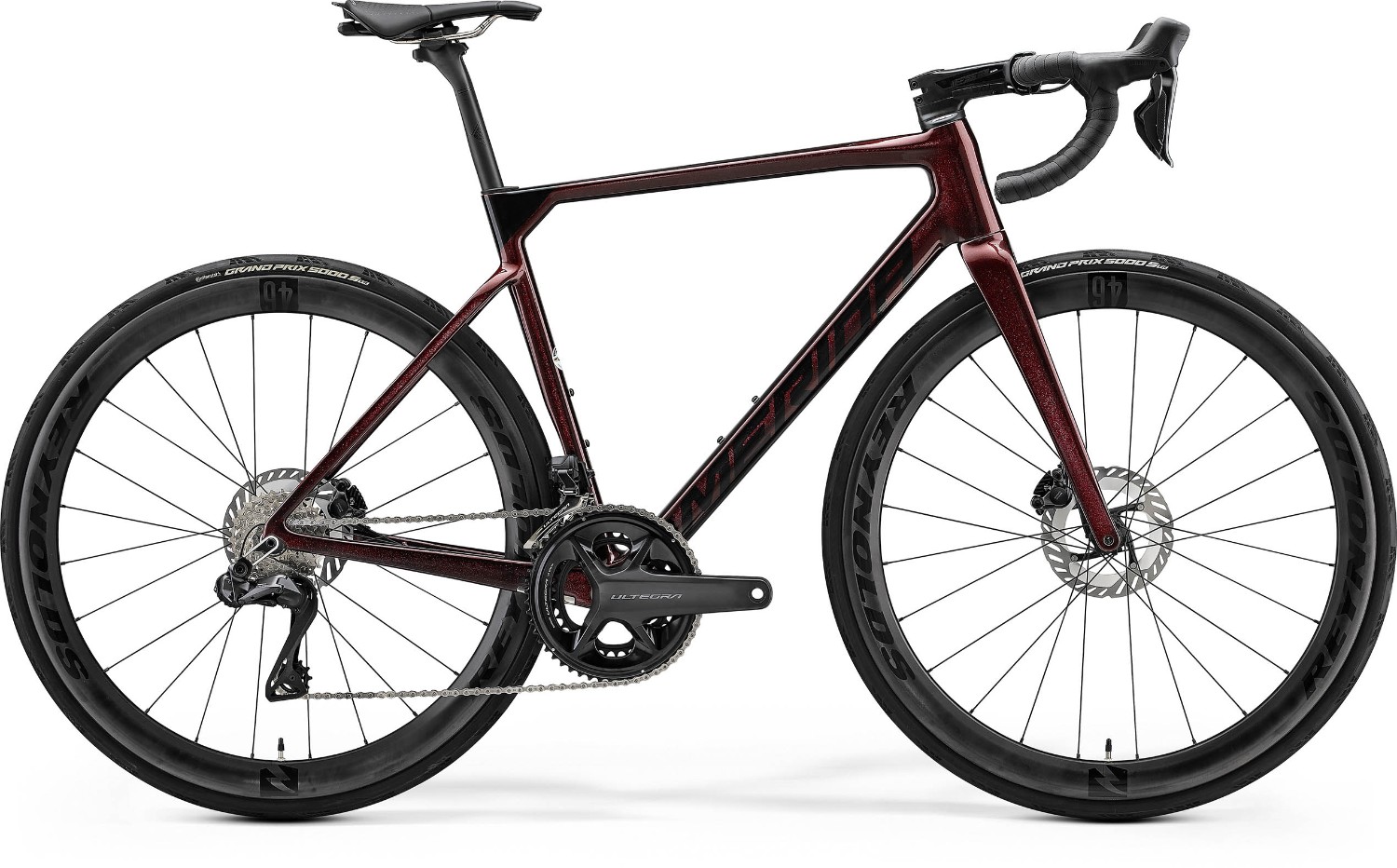

Merida Scultura 8000 2024 - Road Bike
The Merida Scultura 8000 delivers a winning combination of speed, agility, and comfort. Engineered with Gen 5 technology, it features a CF3 carbon frame with race geometry, internal cable routing, and flat mount rear brakes, offering maximum performance and control on every ride.
Key Features:
- Advanced Frame: CF3 carbon frame with race geometry and internal cable routing for enhanced aerodynamics and clean aesthetics.
- Full Carbon Fork: Scultura CF3 Disc fork with disc cooler technology, providing precise handling and optimal braking performance.
- Efficient Drivetrain: Shimano Ultegra Di2 electronic drivetrain with smooth and reliable shifting, ensuring seamless transitions between gears.
- Powerful Brakes: Shimano Ultegra hydraulic disc brakes for reliable stopping power and control in all conditions.
- High-Performance Wheels: Reynolds AR 46 DB carbon wheels with tubeless-ready Continental Grand Prix 5000s TR tires, offering low rolling resistance and enhanced grip.
- Comfortable Components: Merida Expert SLII aluminum handlebar and Prologo Scratch M5 saddle for a comfortable and responsive ride experience.
- Finance Option: Available with 0% APR finance
Shimano Ultegra Di2 electronic drivetrain ensures smooth and precise shifting, while the hydraulic disc brakes provide reliable stopping power in any weather conditions. Paired with Reynolds AR 46 DB carbon wheels and Continental Grand Prix 5000s TR tires, this bike offers exceptional traction and control, allowing you to push your limits with confidence. Whether you're racing competitively or exploring new routes with friends, the Merida Scultura 8000 is the ultimate companion for your road cycling adventures.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | CF3 carbon, race geometry. Internal cable routing, 12mm through axles, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Max tyre - 30c |
| Fork | Scultura CF3 Disc; full carbon; Max tyre size: 700 x 30c; Disc cooler technology |
| Headset | FSA ACR |
| Stem | FSA SMR ACR; aluminium; -6 degree rise. Length 90mm (XXS,XS), 100mm (S), 110mm (M) 120mm (L,XL) |
| Bars | Merida Expert SLII; aluminium; Width 380mm (XXS), 400mm (XS), 420mm (S,M,L), 440mm (XL) |
| Front Brake | Shimano Ultegra hydraulic disc brake caliper with Shimano CL800 160mm rotor |
| Rear Brake | Shimano Ultegra hydraulic disc brake caliper with Shimano CL800 160mm rotor |
| Brake Lever | Shimano Ultegra |
| Front Mech | Shimano Ultegra Di2; FD-R8150 |
| Rear Mech | Shimano Ultegra Di2; RD-R8150 |
| Shifters | Shimano Ultegra disc Di2 |
| Speed | 24 |
| Rims | Part of wheelset - Reynolds AR 46 DB, 21mm inner rim width; 41mm rim depth; carbon; Tubeless ready (tubeless tape and valves included) |
| Front Hub | Part of wheelset - Reynolds AR 46 DB, 100x12mm; Centerlock with Merida Expert SL axle |
| Rear Hub | Part of wheelset - Reynolds AR 46 DB, 142x12mm; Centerlock with Merida Expert SL axle including removable 6/4mm allen key |
| Spokes | part of wheelset |
| Front Tyre | Continental Grand Prix 5000S TR; 700 x 28c; Kevlar bead, folding; tubeless ready |
| Rear Tyre | Continental Grand Prix 5000S TR; 700 x 28c; Kevlar bead, folding; tubeless ready |
| Seat Post | Merida Team SL; 27.2mm diameter; 15mm lay back; Carbon; S-Flex |
| Saddle | Prologo Scratch M5 with V-mount adapter; including Merida minitool |
| Chainset | Shimano Ultegra; 52-36 tooth chainset. Crank length: 165mm (XXS), 170mm (XS), 172.5mm (S,M), 175mm (L,XL) |
| Bottom Bracket | Shimano BB72-41B, Pressfit 86.5 |
| Chain | Shimano CN-M6100-12 |
| Cassette | Shimano CS-R8101; 11-30 teeth; 12 speed |
| Pedals | Resin Platform |
Merida Scultura Size Chart
| FRAME SIZE | HEIGHT (cm) | HEIGHT (ft) |
| XXS | 150 - 158 | 4'11" - 5'2" |
| XS | 159 - 165 | 5'3" - 5'5" |
| S | 166 - 173 | 5'5" - 5'8" |
| M | 174 - 182 | 5'9" - 5'11" |
| L | 183 - 189 | 6'0" - 6'2" |
| XL | 190 - 200 | 6'3" - 6'7" |
What size frame do I need if I am between sizes? - read here
