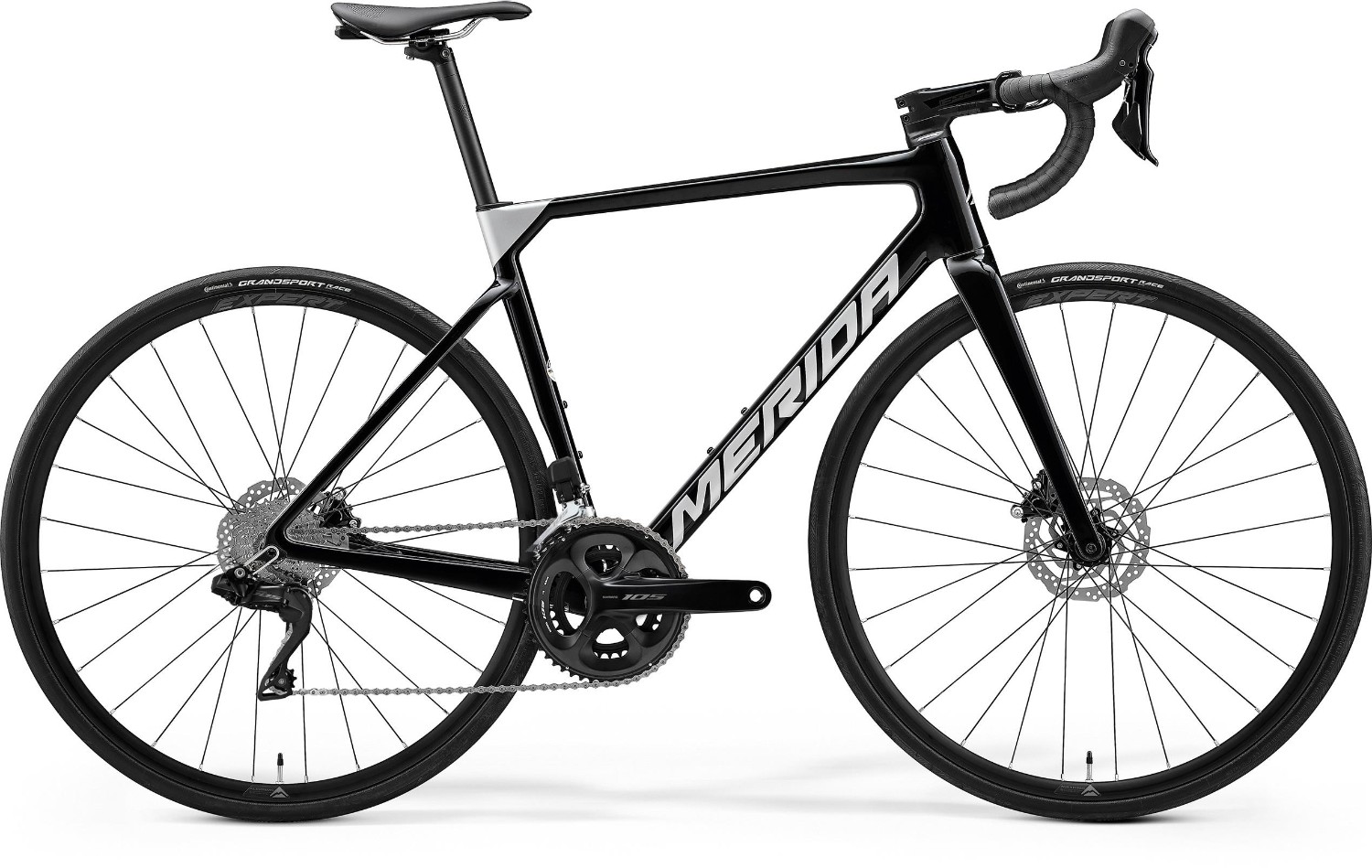

Merida Scultura 6000 Di2 2023 - Road Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | CF3 carbon, race geometry. Internal cable routing, 12mm through axles, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Max tyre - 30c |
| Fork | Scultura CF3 Disc; Material - carbon; Max. tyre size: 700 x 30c; Disc cooler technology |
| Headset | FSA ACR |
| Stem | FSA SMR ACR; aluminium; -6 degree rise. Stem length: 90mm (XXS/XS), 100mm (S), 110mm (M), 120mm (L/XL) |
| Bars | Merida Expert SL; aluminium; Width: 380mm (XXS), 400mm (XS), 420mm (S-M-L), 440mm (XL) |
| Front Brake | Shimano 105; hydraulic disc brake caliper with Shimano RT64; 160mm rotor |
| Rear Brake | Shimano 105; hydraulic disc brake caliper with Shimano RT64; 160mm rotor |
| Brake Lever | Shimano 105 DI2 |
| Front Mech | Shimano 105 Di2 |
| Rear Mech | Shimano 105 Di2 |
| Shifters | Shimano 105 disc Di2 |
| Speed | 24 |
| Rims | Merida Expert SL; 17mm inner rim width; 22mm depth; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Front Hub | VP CLK170F; 100x12mm; 28 spokes, Center lock. With Merida Expert SL axle |
| Rear Hub | VP CLK270R; 142x12mm; 28 spokes; Center lock. With Merida Expert SL axle; including removable lever; 6/4mm allen key |
| Spokes | Double Butted Black stainless |
| Front Tyre | Continental Grand Sport Race; 700 x 28c; Kevlar bead, folding; |
| Rear Tyre | Continental Grand Sport Race; 700 x 28c; Kevlar bead, folding; |
| Seat Post | Merida Expert CC; Carbon; 27.2mm diameter; 15mm lay back |
| Saddle | Merida Expert SL; V-mount; including Merida minitool |
| Chainset | Shimano 105; FCR7100, 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS), 172.5mm (S/M), 175mm (L,XL) |
| Bottom Bracket | Shimano SM-BB71-41B, Pressfit 86.5 |
| Chain | Shimano CN-M6100-12s |
| Cassette | Shimano CS-R7100; 11-34 teeth; 12 speed |
| Pedals | Resin Platform |
| Weight | 10.53 |
Merida Scultura Size Chart
| FRAME SIZE | HEIGHT (cm) | HEIGHT (ft) |
| XXS | 150 - 158 | 4'11" - 5'2" |
| XS | 159 - 165 | 5'3" - 5'5" |
| S | 166 - 173 | 5'5" - 5'8" |
| M | 174 - 182 | 5'9" - 5'11" |
| L | 183 - 189 | 6'0" - 6'2" |
| XL | 190 - 200 | 6'3" - 6'7" |
What size frame do I need if I am between sizes? - read here
