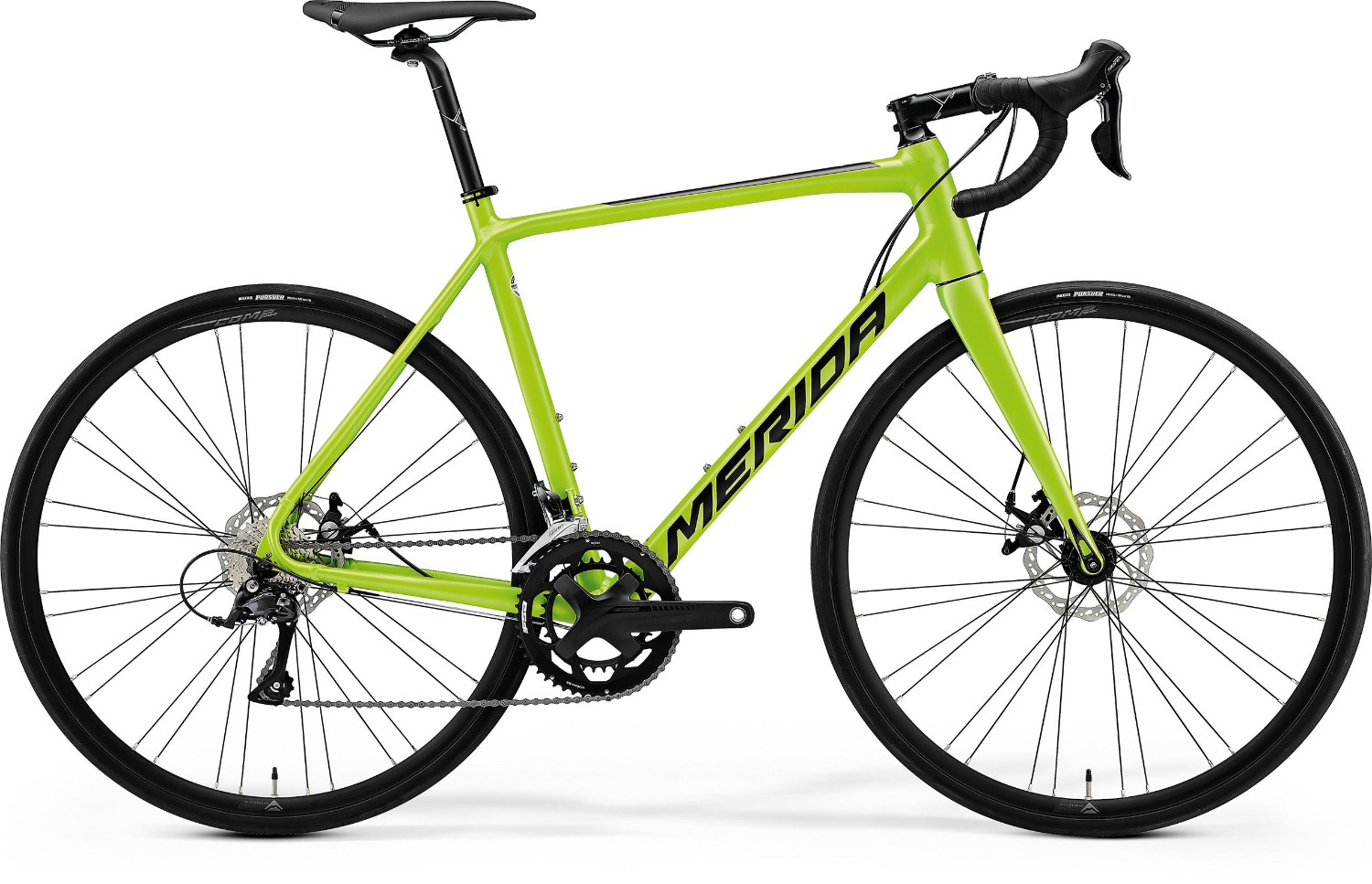

Merida Scultura 200 2023 - Road Bike
The Merida Scultura 200 is an ideal choice for any beginner cyclists, or riders looking for an entry-level road bike for training, commuting or leisure riding.
The Scultura incorporates a smaller aerodynamically optimised tube profile, which enables perfect airflow at the lowest possible weight, ensuring this bike can go as fast as possible.
Key Features:
- Lite Hydroformed 6066 Aluminium frameset with smooth welding
- Scultura Rim CF2 full carbon fork delivers precise steering
- Shimano Sora 9 Speed groupset offers reliable shifting
- Shimano Sora Dual Pivot Rim brakes are easy to maintain
- Maxxis Pursuer 700c tyres ensure confident grip
- Colour: Green/Black
- Sizes: XX Small (47cm), X Small (50cm), Small (52cm), Medium (54cm), Large (56cm), X Large (59cm)
Hydroforming System
In the manufacturing process, tubes are inserted into negative moulds and a hot emulsion of water and oil is forced through at pressure, enabling them to be formed into complex shapes.
X-Taper Headtube
X-Tapered headtube offers the space for a tapered fork to be fitted. Tapered forks offer superb stiffness and deliver confidence-inspiring steering.
Internal Cable Routing
Cables are routed through the frame, entering and exiting through smooth sockets. The bike looks neat, whilst the cables are protected from moisture and dirt.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite - Hydroformed triple butted 6066 aluminium with smooth welding. Tapered head tube, Pressfit BB Standard, 142 x 12mm axle standard. Max. tyre size 700 x 28c |
| Fork | Scultura CF2 Disc; Full carbon; tapered steerer. Max. tyre size: 700 x 28c |
| Headset | Merida M2339 Neck |
| Stem | Merida Comp CC; aluminium; 31.8mm diameter; -6 degree rise - Stem length: 80mm (XXS/XS), 90mm (S), 100mm (SM/ML), 110mm (L/XL) |
| Bars | Merida Expert SL, aluminium; Width: 380mm(XXS), 400mm (XS-S), 420mm (S/M-M/L), 440mm (L-XL) |
| Front Brake | Promax DSK-330R; Mechanical disc brake caliper with Promax 160G; 160mm rotor |
| Rear Brake | Promax DSK-330R; Mechanical disc brake caliper with Promax 160G; 160mm rotor |
| Brake Lever | Shimano Sora |
| Front Mech | Shimano Sora |
| Rear Mech | Shimano Sora; GS |
| Shifters | Shimano Sora |
| Speed | 18 |
| Rims | Merida Comp SL; 17mm inner rim width; 22mm depth; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Front Hub | Joytech D981SB; 100x12mm; 28 Spokes, 6 bolt |
| Rear Hub | Joytech D982TSE-R; 142x12mm; 28 spokes; 6 bolt |
| Spokes | Black stainless |
| Front Tyre | Maxxis Pursuer; 700 x 25C; Kevlar bead; folding |
| Rear Tyre | Maxxis Pursuer; 700 x 25C; Kevlar bead; folding |
| Seat Post | Merida Comp CC; aluminium; 27.2mm diameter; 5mm lay back |
| Saddle | Merida Comp SL; V-mount |
| Chainset | FSA Omega; 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS,S), 172.5mm (S/M,M/L), 175mm (L/XL) |
| Bottom Bracket | FSA BB-AL86/Ø19 |
| Chain | KMC M99 |
| Cassette | Microshift CS-9S 11-28 teeth |
| Pedals | Resin Platform |
Merida Scultura Size Chart
| FRAME SIZE | HEIGHT (cm) | HEIGHT (ft) |
| XXS | 150 - 158 | 4'11" - 5'2" |
| XS | 159 - 165 | 5'3" - 5'5" |
| S | 166 - 173 | 5'5" - 5'8" |
| M | 174 - 182 | 5'9" - 5'11" |
| L | 183 - 189 | 6'0" - 6'2" |
| XL | 190 - 200 | 6'3" - 6'7" |
