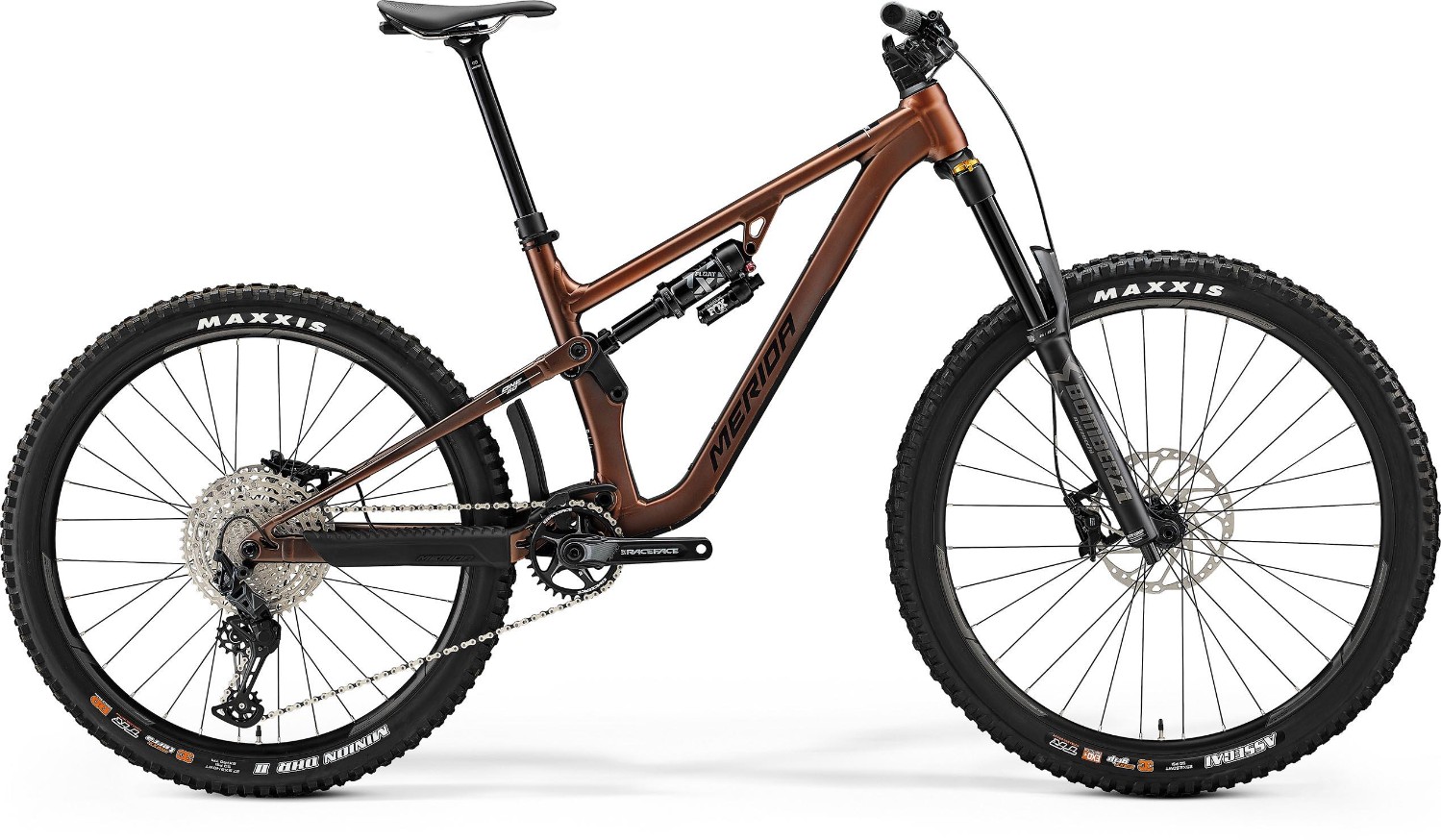

Merida One-Sixty 700 Mountain Bike 2023 - Enduro Full Suspension MTB
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Lite Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5" |
Fork | Marzocchi Z1; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size: 29" x 2.6" |
Rear Shock | FOX Float X Performance; platform |
Headset | Merida 8158 1-1/8"-1.5" cartridge bearing |
Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point. |
Bars | Merida Team; TR; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise |
Front Brake | Shimano SLX M7120; 4 piston hydraulic disc brake caliper brake with Shimano RT64; 203mm rotor |
Rear Brake | Shimano SLX M7120; 4 piston hydraulic disc brake caliper brake with Shimano RT64; 203mm rotor |
Brake Lever | Shimano SLX M7120 |
Rear Mech | Shimano SLX M7100 Shadow+; SGS |
Shifters | Shimano XT; Multi Release and Shimano SL-MT500-IL dropper post lever |
Speed | 12 |
Rims | Merida Expert TR; 29mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); Rear 27.5" for XS/S & M, 29" for L & XL |
Front Hub | Shimano SLX; 110x15mm; 32 spokes; Center lock |
Rear Hub | Shimano SLX; 148x12mm, 32 spokes; Center lock. With Merida Expert TR axle including removable lever, 6/4mm allen key |
Spokes | Double Butted Black stainless |
Front Tyre | Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR DD 3C MaxxGrip |
Rear Tyre | Maxxis DHR II; 27.5" x 2.4" for XS/S & M; 29" x 2.4" for L & XL; Kevlar bead, folding; TR DD 3C MaxxTerra |
Seat Post | Merida Team TR; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel |
Saddle | Merida Expert SL; V-mount; including Merida minitool |
Chainset | Race Face Aeffect; 32 tooth chainset. Merida Expert TR ISCG05 chainguide. Crank length: 170mm |
Bottom Bracket | Race Face BSA 68/73 – 24mm |
Chain | KMC X12 |
Cassette | KMC X12 |
Pedals | Resin Platform |
Merida Full Suspension MTB Size Chart
Frame Size |
Height cm |
Height Feet / Inches |
S |
< 173 cm |
<5’8” |
M |
167 - 183 cm |
5’6” – 6’0” |
L |
177 - 190 cm |
5’10” – 6’3” |
XL |
> 187 cm |
>6’2” |
What size frame do I need if I am between sizes? - read here
