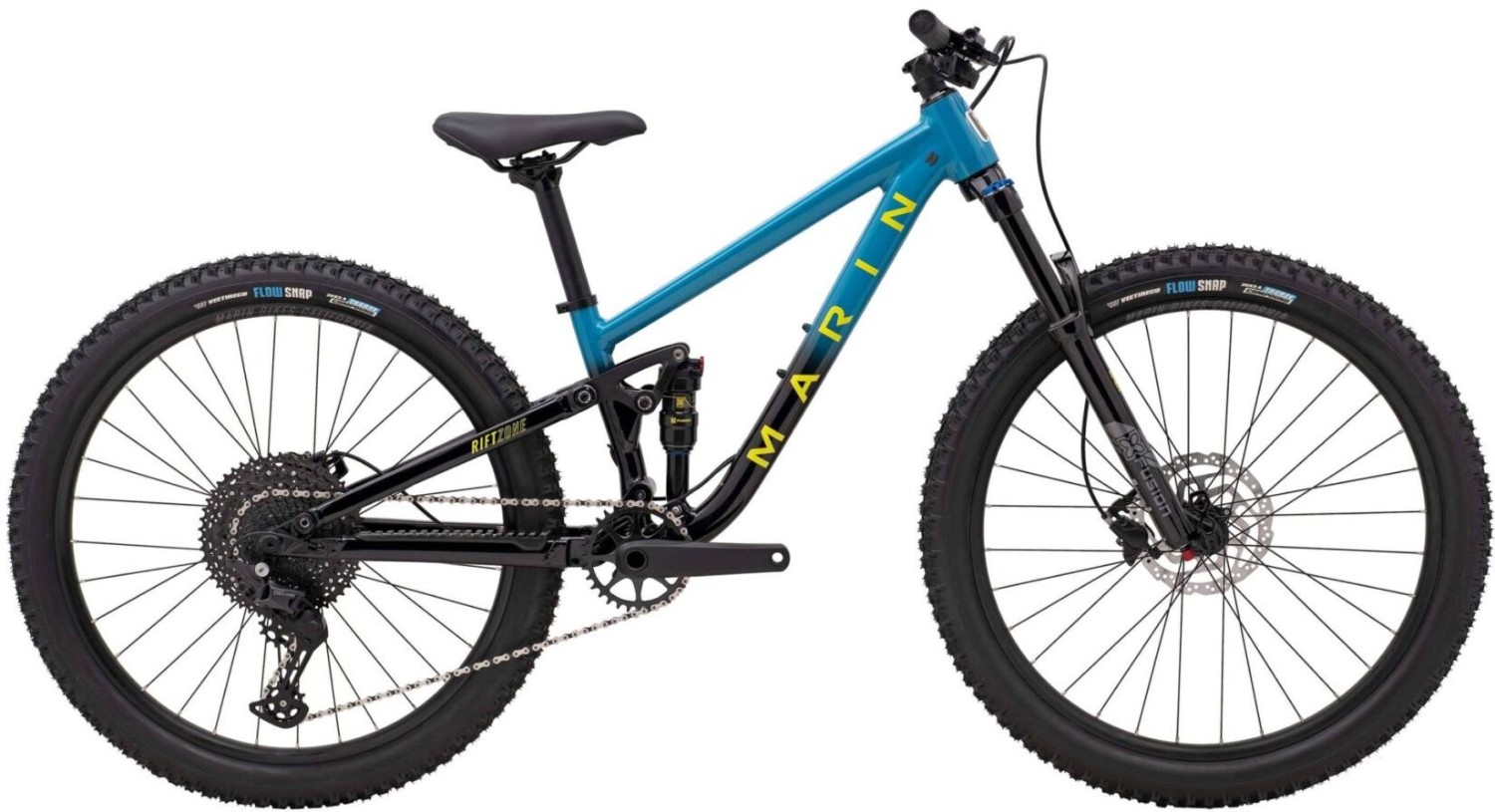

Marin Rift Zone JR 26 2024 - Junior Full Suspension Bike
![Rift Zone JR 26 2024 - Junior Full Suspension Bike image 0](https://tredz.azureedge.net/prodimg/262247/1/resize=width:1000.jpg)
![Rift Zone JR 26 2024 - Junior Full Suspension Bike image 1](https://tredz.azureedge.net/prodimg/262247/2/resize=width:1000.jpg)
![Rift Zone JR 26 2024 - Junior Full Suspension Bike image 2](https://tredz.azureedge.net/prodimg/262247/3/resize=width:1000.jpg)
![Rift Zone JR 26 2024 - Junior Full Suspension Bike image 3](https://tredz.azureedge.net/prodimg/262247/4/resize=width:250.jpg)
![Rift Zone JR 26 2024 - Junior Full Suspension Bike image 4](https://tredz.azureedge.net/prodimg/262247/5/resize=width:250.jpg)
![Rift Zone JR 26 2024 - Junior Full Suspension Bike image 5](https://tredz.azureedge.net/prodimg/262247/6/resize=width:250.jpg)
![Rift Zone JR 26 2024 - Junior Full Suspension Bike image 6](https://tredz.azureedge.net/prodimg/262247/7/resize=width:250.jpg)
![Rift Zone JR 26 2024 - Junior Full Suspension Bike image 1](https://tredz.azureedge.net/prodimg/262247/2/resize=width:1000.jpg)
![Rift Zone JR 26 2024 - Junior Full Suspension Bike image 2](https://tredz.azureedge.net/prodimg/262247/3/resize=width:1000.jpg)
![Rift Zone JR 26 2024 - Junior Full Suspension Bike image 3](https://tredz.azureedge.net/prodimg/262247/4/resize=width:250.jpg)
![Rift Zone JR 26 2024 - Junior Full Suspension Bike image 4](https://tredz.azureedge.net/prodimg/262247/5/resize=width:250.jpg)
![Rift Zone JR 26 2024 - Junior Full Suspension Bike image 5](https://tredz.azureedge.net/prodimg/262247/6/resize=width:250.jpg)
![Rift Zone JR 26 2024 - Junior Full Suspension Bike image 6](https://tredz.azureedge.net/prodimg/262247/7/resize=width:250.jpg)
The Marin Rift Zone JR 26 brings adult-level performance to a junior package, making it an ideal choice for young adventurers. With a lightweight aluminium frame, 130mm travel front and rear suspension, and Shimano 11-speed drivetrain, this bike is designed to offer endless fun and capability on the trails.
Key Features:
- Frame: Series 3 6061 Aluminium, 130mm travel, MultiTrac Suspension
- Front Fork: XFusion Velvet RLC, 130mm travel
- Drivetrain: Shimano Deore, 11-speed
- Brakes: Shimano MT-201 hydraulic disc brakes
- Wheels: 26" Marin double wall alloy, tubeless compatible
- Tyres: Vee Tire Co Flow Snap 24x2.4", Tackee Compound
- Other Standout Feature: Convertible frame for 24" wheels
- Finance: Available with 0% APR finance
The Marin Rift Zone JR 26 is designed for young riders who are ready to take on more challenging trails. The Series 3 6061 aluminium frame is lightweight and durable, featuring 130mm of MultiTrac suspension travel for a smooth and controlled ride. The XFusion Velvet RLC fork with 130mm of travel and adjustable compression and rebound settings ensures that young riders can tackle rough terrain with ease.
Equipped with a Shimano Deore 11-speed drivetrain, the Rift Zone JR 26 offers a wide range of gears for tackling various trail conditions. The Shimano MT-201 hydraulic disc brakes provide reliable stopping power, ensuring safety and control on steep descents and technical sections.
The bike's 26" Marin double wall alloy rims are tubeless compatible, allowing for better traction and fewer punctures. Paired with Vee Tire Co Flow Snap tyres, the Rift Zone JR 26 offers excellent grip and durability on a variety of surfaces. The frame's convertible design allows it to accommodate 24" wheels, making it a versatile option that can grow with your child or serve as a perfect hand-me-down.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | All New Series 3 6061 Aluminum Frame, 24" Wheel w/ Clearance for 26", 130mm Travel, MultiTrac Suspension Platform, 135mm Open Dropout (Upgradeable to 142x12mm Thru-Axle), 73mm Threaded BB |
Fork | X-Fusion Velvet RLC 26", 130mm Travel, Compression and Rebound Adjustment, 100x15mm Thru-Axle |
Rear Shock | X-Fusion O2 Pro R, 190x51mm, Custom Tune, M8x22.2mm Hardware |
Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
Stem | Marin 3D Forged Alloy, 35mm |
Bars | Marin Mini-Riser, 6061 Double Butted Aluminum, 12mm Rise, 720mm Width, 4º Up, 9º Back |
Front Brake | Shimano MT-201 Hydraulic Disc, 180mm Rotor |
Rear Brake | Shimano MT-201 Hydraulic Disc, 160mm Rotor |
Brake Lever | Shimano BL-MT201 Hydraulic |
Rear Mech | Shimano Deore, 11 Speed, SGS |
Shifters | Shimano Deore, 11-Speed, SL-5100R |
Speed | 11 |
Rims | Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible |
Front Hub | Forged Alloy, 100x15mm, Centerlock Disc, 32H |
Rear Hub | Forged Alloy, 135mm, Quad Sealed Bearings, Centerlock Disc, 32H |
Spokes | 14G Stainless Steel |
Front Tyre | Vee Tire Co, Flow Snap 24x2.4", Tackee Compound, Wire Bead |
Rear Tyre | Vee Tire Co, Flow Snap 24x2.4", Tackee Compound, Wire Bead |
Seat Post | Marin Alloy, 30.9mm |
Saddle | Marin Speed Concept |
Chainset | Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring, Direct Mount Type |
Bottom Bracket | External Sealed Cartridge Bearings |
Chain | KMC X-11 Silver and Black |
Cassette | Sunrace, 11-Speed, 11-51T, ED Black |
Pedals | Resin Platform |
Marin Rift Zone 2024 Size Chart
Size |
Height (cm) |
Height (Feet) |
S |
160 – 168 |
5’3” – 5’6” |
M |
168 - 178 |
5’6” – 5’10” |
L |
178 – 188 |
5’10” – 6’2” |
XL |
188 - 193 |
6’2” – 6’4” |
What size frame do I need if I am between sizes? - read here
Marin Rift Zone 2024 Geometry
Size |
S |
M |
L |
XL |
Stack mm |
623.6 |
628.2 |
637.3 |
641.8 |
Reach mm |
435 |
460 |
485 |
515 |
Head Tube Angle |
65.5° |
65.5° |
65.5° |
65.5° |
Head Tube Length mm |
110 |
115 |
125 |
130 |
Seat Tube Angle |
77° |
77° |
77° |
77° |
Seat Tube Length mm |
390 |
400 |
425 |
430 |
Top Tube Effective mm |
579 |
605 |
632.1 |
663.2 |
BB Height mm |
343 |
343 |
343 |
343 |
BB Drop mm |
35 |
35 |
35 |
35 |
Chain Stay mm |
430 |
430 |
430 |
430 |
Wheel Base mm |
1170 |
1205.1 |
1234.4 |
1266.3 |
Stand Over Height mm |
690.2 |
691.2 |
701.7 |
700.5 |
Fork Offset mm |
44 |
44 |
44 |
44 |
Seat Post Diameter mm |
30.9 |
30.9 |
30.9 |
30.9 |
Handlebar Width mm |
780 |
780 |
780 |
780 |
Stem Length mm |
35 |
35 |
35 |
35 |
Crank Length mm |
170 |
170 |
170 |
170 |
