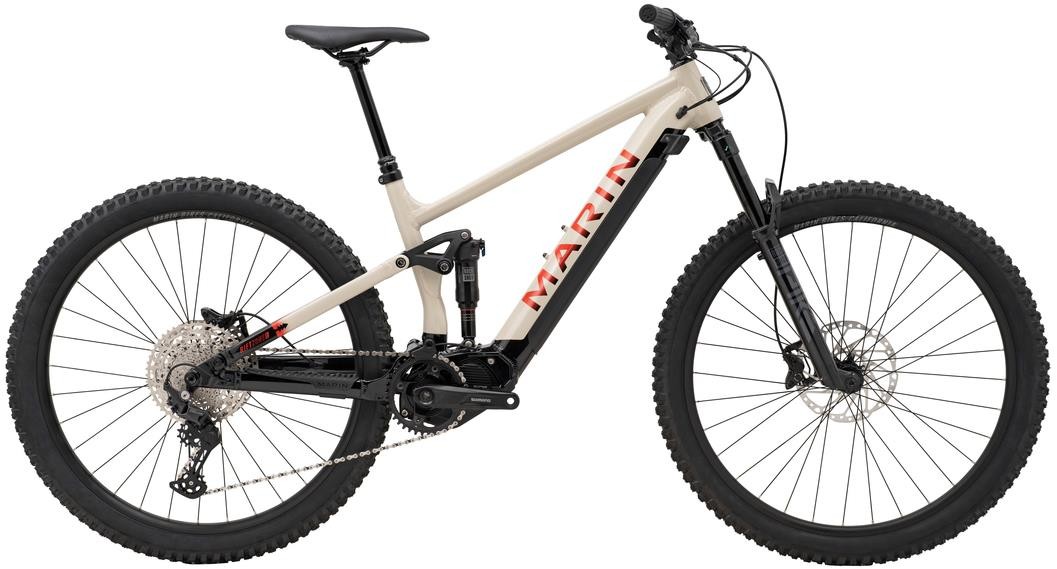

Marin Rift Zone E1 29" 2025 - Electric Mountain Bike
![Rift Zone E1 29" 2025 - Electric Mountain Bike image 0](https://tredz.azureedge.net/prodimg/262208/1/resize=width:1000.jpg)
![Rift Zone E1 29" 2025 - Electric Mountain Bike image 1](https://tredz.azureedge.net/prodimg/262208/2/resize=width:1000.jpg)
![Rift Zone E1 29" 2025 - Electric Mountain Bike image 1](https://tredz.azureedge.net/prodimg/262208/2/resize=width:1000.jpg)
Marin’s mid-price, mid-tier Rifty E, the Marin Rift Zone E1 is beautifully balancing performance and value. RockShox handles the suspension, Shimano Deore brings a tough, reliable 11-speed drivetrain and Shimano’s brand-new STEPS EP6 drive unit powers you up, along and down. A 630WH battery is supplied as standard for maximum range and we’ve included CushCore tyre inserts and Marin tubeless sealant straight out of the box.
Key Features:
- Series 4 alloy frame with fully integrated battery pack
- RockShox Deluxe Select+ shock controls the 140mm of Multitrac suspension travel
- RockShox Pike fork delivers 140mm of plush suspension travel up front
- Shimano Deore 11-speed drivetrain offers reliable gear shifting over a wide range
- TRP Slate Evo 4-Piston brakes for confident speed control
- Cush Core tyre inserts and tubeless sealant included
- Sizes: S, M, L, XL
- Colours: Gloss Grey/ Red
- The Marin Rift Zone E 1 29" is Available with 0% APR finance
Drive Information:
- Motor: Shimano Steps EP6, 250W, 85Nm max torque
- Battery: Shimano 630Wh internal, removable
- User Interface: Shimano SC-E600 display & remote switch
- Connectivity: Bluetooth, ANT+
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free cycle insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Series 4 Alloy Frame, 15N/Amm Multitrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor |
Fork | RockShock Pike Base 29", Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset |
Rear Shock | RockShox Deluxe Select+, Compreson and Rebound Adjustment, 210x50, 25xM8 Lower and Upper Mount |
Headset | FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
Stem | Marin 3D Forged Alloy, 35mm |
Bars | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
Front Brake | TRP Slate Evo, 4-Piston Hydraulic Disc, Brake 203mm Rotor |
Rear Brake | TRP Slate Evo, 4-Piston Hydraulic Disc, Brake 203mm Rotor w/ Speed Sensor |
Brake Lever | TRP Slate Evo |
Rear Mech | Shimano Deore, Direct Attachment, 11-Speed, SGS |
Shifters | Shimano Deore, 11-Speed |
Speed | 11 |
Rims | Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible |
Front Hub | Shimano MT-410B, 110x15mm, Centerlock Disc, 32H |
Rear Hub | Shimano HB-MT400B, 148x12mm, Centerlock Disc, Standard Freehub Body |
Spokes | 14g Black Stainless Steel |
Front Tyre | Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing |
Rear Tyre | Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing |
Seat Post | TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm |
Saddle | Marin E-MTB Saddle |
Chainset | Aluminum, 160mm Length, 38t Chainring |
Chain | KMC X-10E, Silver |
Cassette | SunRace 11-Speed, 11-51T |
Pedals | Marin MTB Plastic |
Battery Size (WH) | 630 |
Motor | Shimano |
User Interface | Shimano SC-E600 |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
