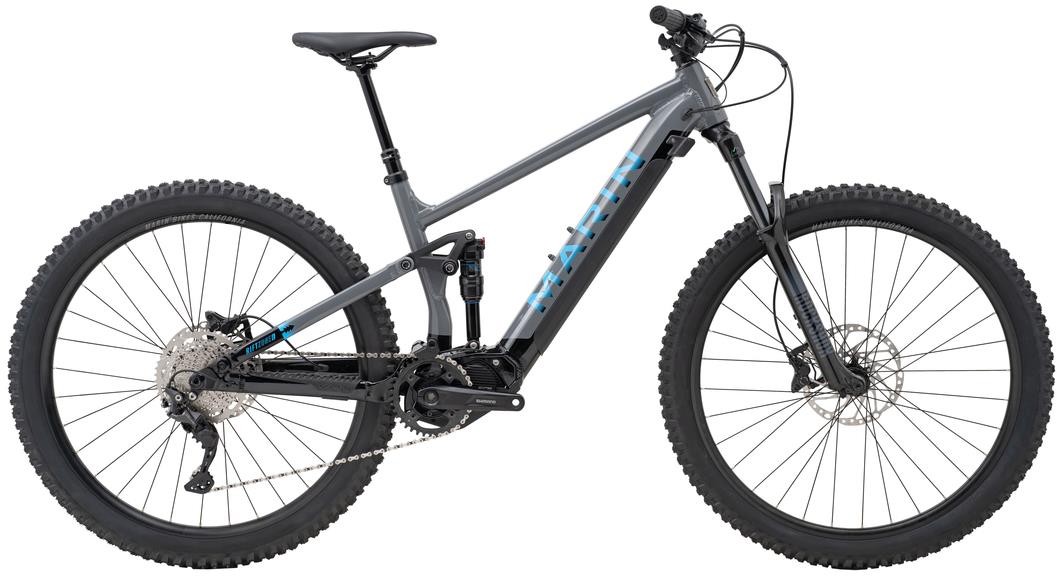

Marin Rift Zone E 29" 2025 - Electric Mountain Bike
One of the very best value eMTB’s around, the base model Marin Rift Zone E packs a crazy-powerful punch without busting the bank. RockShox and X-Fusion handle the suspension, Shimano Deore brings a tough, reliable 10-speed drivetrain and Shimano’s brand-new STEPS EP6 drive unit powers you up, along and down. A 504WH battery is supplied as standard, with the option to upgrade to a beefy 630WH for even more range.
Key Features:
- Series 4 alloy frame with fully integrated battery pack
- X-Fusion O2 Pro shock controls the 140mm of Multitrac suspension travel
- RockShox 35 Silver fork offers 140mm of smooth front suspension travel
- Shimano Deore 10-speed drivetrain offers reliable gear shifting
- TRP Slate Evo 4-Piston brakes for confident speed control
- Sizes: S, M, L, XL
- Colours: Gloss Grey/Blue
- The Marin Rift Zone E 29" is Available with 0% APR finance
Drive Information:
- Motor: Shimano Steps EP6, 250W, 85Nm max torque
- Battery: Shimano 504Wh internal, removable
- User Interface: Shimano SC-E600 display & remote switch
- Connectivity: Bluetooth, ANT+
Marin Rift Zone E Review
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free cycle insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Series 4 Alloy Frame, 15N/Amm Multitrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor |
| Fork | RockShock 35 Silver R 29", Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset |
| Rear Shock | X-Fusion 02 PRO R, Compression and Rebound Adjustment, Custom Tune, 210x50 25xM8 Lower Mount & Upper Mount |
| Headset | FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Stem | Marin 3D Forged Alloy, 35mm |
| Bars | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Front Brake | TRP Slate Evo, 4-Piston Hydraulic Disc, Brake 203mm Rotor |
| Rear Brake | TRP Slate Evo, 4-Piston Hydraulic Disc, Brake 203mm Rotor w/ Speed Sensor |
| Brake Lever | TRP Slate Evo |
| Rear Mech | Shimano Deore, Direct Attachment, 10-Speed SGS |
| Shifters | Shimano Deore, 10-speed |
| Speed | 10 |
| Rims | Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible |
| Front Hub | Shimano MT-410B, 110x15mm, Centerlock Disc, 32H |
| Rear Hub | Shimano HB-MT400B, 148x12mm, Centerlock Disc, Standard Freehub Body |
| Spokes | 14g Black Stainless Steel |
| Front Tyre | Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing |
| Rear Tyre | Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing |
| Seat Post | TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm |
| Saddle | Marin E-MTB Saddle |
| Chainset | Aluminum, 160mm Length, 38t Chainring |
| Chain | KMC X-10E, Silver |
| Cassette | Shimano Deore 10-speed 11-46T |
| Pedals | Marin MTB Plastic |
| Battery Size (WH) | 504 |
| Motor | Shimano |
| User Interface | Shimano SC-E600 |
Marin Rift Zone Size Chart
|
Size |
Height (cm) |
Height (Feet) |
|
S |
160 – 168 |
5’3” – 5’6” |
|
M |
168 - 178 |
5’6” – 5’10” |
|
L |
178 – 188 |
5’10” – 6’2” |
|
XL |
188 - 193 |
6’2” – 6’4” |
What size frame do I need if I am between sizes? - read here
