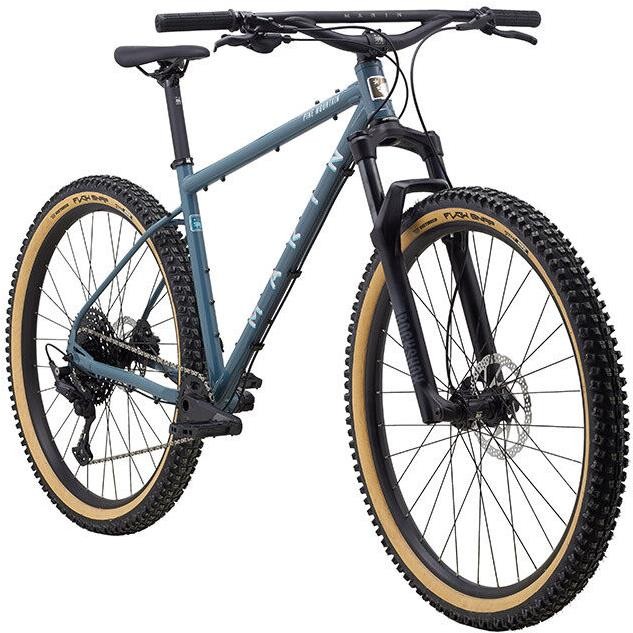

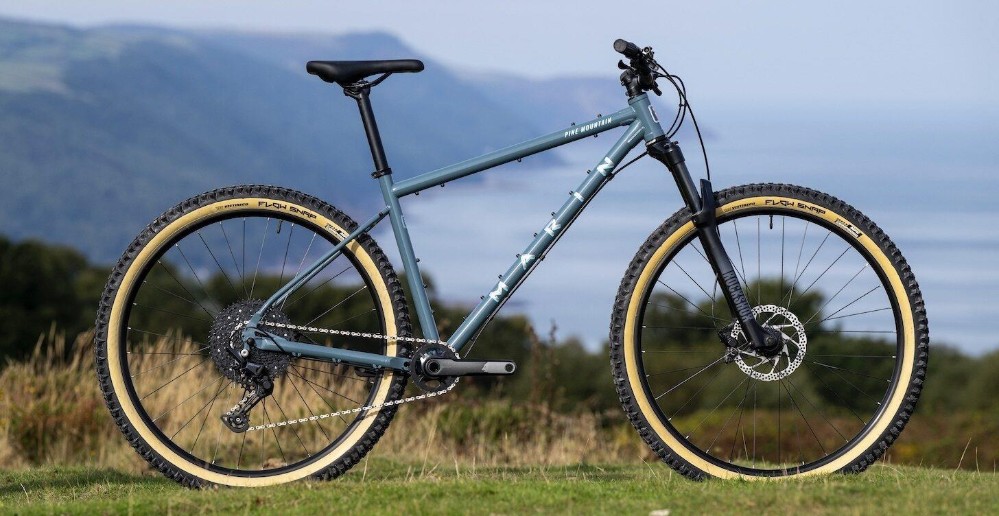

Marin Pine Mountain 1 Mountain Bike 2024 - Hardtail MTB
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Series 2 Double Butted CrMo, 29" Wheels, Boost 141x9mm Open Dropout, 73mm Threaded BB, Plentiful Gear Mounts |
| Fork | RockShox Recon RL, 120mm Travel, Compression and Rebound Adjustment, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset |
| Headset | FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Stem | Marin 3D Forged Alloy, 35mm |
| Bars | Marin Bedroll Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep |
| Front Brake | Tektro HDM535, 4-Piston, Hydraulic, 180mm Rotor |
| Rear Brake | Tektro HDM535, 4-Piston, Hydraulic, 160mm Rotor |
| Brake Lever | Tektro Hydraulic |
| Rear Mech | Shimano Deore, RDM5100, 11-Speed |
| Shifters | Shimano Deore, SLM5100, 11-Speed |
| Speed | 11 |
| Rims | Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible |
| Front Hub | Forged Alloy, 110x15mm, Disc, 32H |
| Rear Hub | Forged Alloy, 141x9mm, Disc, 32H |
| Spokes | 14g Black Stainless Steel |
| Front Tyre | Vee Tire Flow Snap, 29x2.6", Wire Bead |
| Rear Tyre | Vee Tire Flow Snap, 29x2.6", Wire Bead |
| Seat Post | Marin Alloy, 30.9mm |
| Saddle | Marin Pine Mountain Trail |
| Chainset | Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring, 76mm BCD |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Chain | KMC X11 |
| Cassette | SunRace 11-Speed, 11-51T |
| Pedals | Nylon Platform |
Pine Mountain Sizing
See the table below to find the right size Marin Pine Mountain.
|
Size |
S (27.5+”) |
M (27.5+”) |
L (27.5+”) |
XL (27.5+”) |
XXL (27.5+”) |
|
Rider Height Range |
5’4” – 5’7” |
5’7” – 5’10” |
5’10” – 6’0” |
6’0” – 6’2” |
6’2” – 6’4” |
Read our bike size guide for more information on sizing.
Pine Mountain Geometry
|
Size |
S |
M |
L |
XL |
XXL |
|
Stack (mm) |
604 |
604 |
609 |
623 |
651 |
|
Reach (mm) |
391 |
419 |
441 |
448 |
459 |
|
Headtube Angle |
69 |
69 |
69 |
69 |
69 |
|
Headtube Length |
100 |
100 |
105 |
120 |
150 |
|
Seat Tube Angle Virtual |
73.5 |
73.5 |
73.5 |
73.5 |
73.5 |
|
Seat Tube Angle Actual |
72.5 |
72.5 |
72.5 |
72.5 |
72.5 |
|
Seat Tube Length (mm) |
381 |
431 |
482 |
520 |
559 |
|
Top Tube Actual (mm) |
5396 |
561.5 |
586.1 |
609.3 |
631.6 |
|
Top Tube Effective (mm) |
570 |
598 |
621 |
644 |
664 |
|
Bottom Bracket Height (mm) |
311 |
311 |
311 |
311 |
311 |
|
Bottom Bracket Drop (mm) |
55 |
55 |
55 |
55 |
55 |
|
Chainstay (mm) |
437 |
437 |
437 |
437 |
437 |
|
Wheelbase (mm) |
1085 |
1118 |
1141 |
1154 |
1176 |
|
Standover Height (mm) |
704 |
744 |
777 |
815 |
856 |
|
Fork Offset (mm) |
51 |
51 |
51 |
51 |
51 |
|
Seatpost Diameter (mm) |
27.2 |
27.2 |
27.2 |
27.2 |
27.2 |
|
Handlebar Width (mm) |
780 |
780 |
780 |
780 |
780 |
|
Stem Length (mm) |
60 |
60 |
60 |
60 |
60 |
|
Crank Length (mm) |
170 |
175 |
175 |
175 |
175 |
Read our Mountain Bike Geometry Explained guide for more information on MTB geometry.
