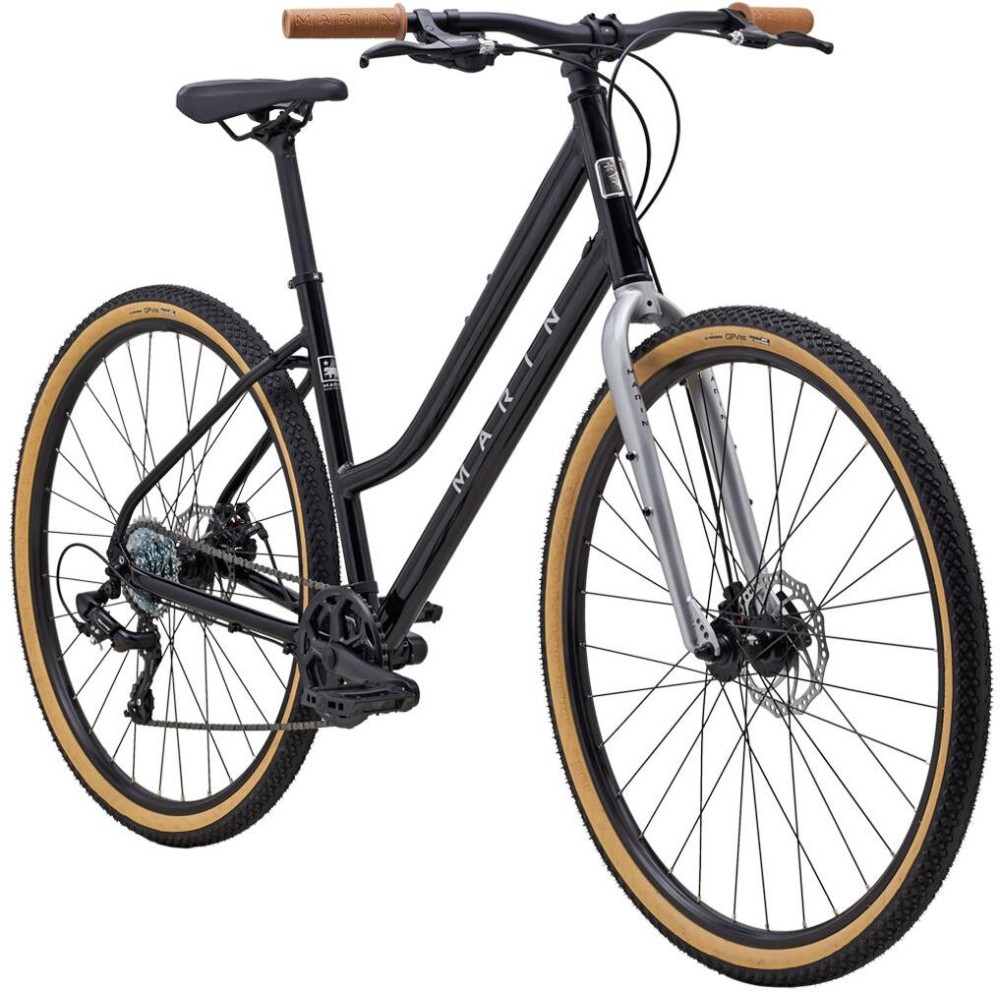

Marin Kentfield 1 Stepthrough 2024 - Hybrid Sports Bike
Perfect for your daily trips and further-afield exploration on the weekend, it blends the best bits of a hybrid commuter and a go-anywhere MTB with a dash of retro-modern style. The Kentfield has an upright and comfy ride position, multi-surface tires and stacks of rack and fender mounts. Roads, bike paths, back alleys and even a little bit of dirt, the Kentfield gets you where you need to go, day in and day out.
Our Series 1 aluminum frame is lightweight and responsive, and wide-range, 1x gearing is simple to use and efficient up, along and down. The Kentfield is available in standard and step-through styles to help find your perfect daily runaround.
The Kentfield ST1 is the step-through version of our most-affordable Kentfield. Designed to be affordable, comfortable and reliable it’ll go the distance, every day of the week.
Our Series 1 aluminum frame is lightweight and responsive, and comes decked out with plenty of rack and fender mounts to suit your setup. There’s a Shimano 7-speed drivetrain, Vee Tire tires, Clark’s mechanical disc brakes and plenty of reliable Marin components.
Why choose a step-through bicycle frame? Traditionally designed for female riders wearing skirts, the step-through has evolved to suit anyone that prefers a frame that’s far easier to swing a leg over. They’re ideal for less flexible riders, slow-speed urban cycling and riders that need to load their bike up with bags or kids.
Key Features:
- Series 1 Aluminum Frame
The Kentfield features a Series 1 6061 aluminum frame with disc brake mounts and rack and fender eyelets and fast rolling, multi-surface capable 700c wheels with either a standard horizontal toptube or a step-through frame design. - Crmo Bmx Inspired Fork
The stylish CrMo BMX style fork has straight blades, disc mounts, and BMX inspired dropouts. - Hybrid Geometry
The Kentfield features upright seated hybrid geometry that mixes the upright position of a mountain bike with the efficiency of a pavement bike. - Wide-range Gearing
Wide-range, 1x gearing is simple to use and offers as large if not larger of a gear range than multi-chainring bikes of the past.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Series 1 6061 Aluminum, 700C Wheels, Step Through Design, Kickstand Mount, Fender and Rack Mounts |
| Fork | Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets |
| Headset | FSA 888 Threadless |
| Stem | Marin Aluminum, 31.8mm Clamp |
| Bars | Marin Alloy, 30mm Rise, 12˚ Backsweep |
| Front Brake | Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor |
| Rear Brake | Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor |
| Brake Lever | Aluminum Lever |
| Front Mech | N/A |
| Rear Mech | Shimano Tourney 7-Speed |
| Shifters | Shimano Altus 7-Speed RapidFire |
| Speed | 7 |
| Rims | Marin Aluminum Double Wall, Disc Specific |
| Front Hub | Forged Aluminum Alloy, 32H |
| Rear Hub | Forged Aluminum Alloy, 32H |
| Spokes | 14g Black Stainless Steel |
| Front Tyre | Vee Tire, GPVee, 700x40, Wire Bead, Flat Protection, Mixed Terrain Ready |
| Rear Tyre | Vee Tire, GPVee, 700x40, Wire Bead, Flat Protection, Mixed Terrain Ready |
| Seat Post | Marin Alloy, 27.2mm |
| Saddle | Marin Adventure Plush |
| Chainset | Forged Alloy Crank, Steel 38T Chainring, Ring Guard |
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
| Chain | KMC Z8 |
| Cassette | SunRace 7-Speed, 11-34T |
Marin Kentfield 2024 Size Chart
|
|
Height (cm) |
Height (in) |
|
S |
152 - 163 |
4' 11" - 5' 4" |
|
M |
163 - 173 |
5' 4" - 5' 8" |
|
L |
173 - 180 |
5' 8" - 5' 11" |
|
XL |
180 - 188 |
5' 11" - 6' 2" |
What size frame do I need if I am between sizes? - read here
Marin Rift Zone 2024 Geometry (mm)
|
|
S |
M |
L |
XL |
|
Stack |
633.60 |
648.40 |
666.50 |
685.30 |
|
Reach |
380 |
400 |
415 |
430 |
|
Headtube angle |
70° |
70° |
70° |
70° |
|
Headtube length |
190 |
205 |
225 |
245 |
|
Seat tube angle (effective) |
73.5° |
73.5° |
73.5° |
73.5° |
|
Seat tube length |
422 |
462 |
495 |
528 |
|
Top tube (effective) |
567.70 |
591.90 |
612.40 |
633 |
|
BB height |
294.50 |
294.50 |
294.50 |
294.50 |
|
BB drop |
70 |
70 |
70 |
70 |
|
Chainstay |
450 |
450 |
450 |
450 |
|
Wheelbase |
1082.90 |
1108 |
1130 |
1151.70 |
|
Standover |
718.86 |
754.41 |
784.94 |
815.14 |
|
Fork offset |
50 |
50 |
50 |
50 |
|
Seatpost diameter |
27.2 |
27.2 |
27.2 |
27.2 |
|
Handlebar width |
680 |
740 |
740 |
740 |
|
Stem length |
45 |
45 |
45 |
45 |
|
Crank length |
170 |
170 |
175 |
175 |
