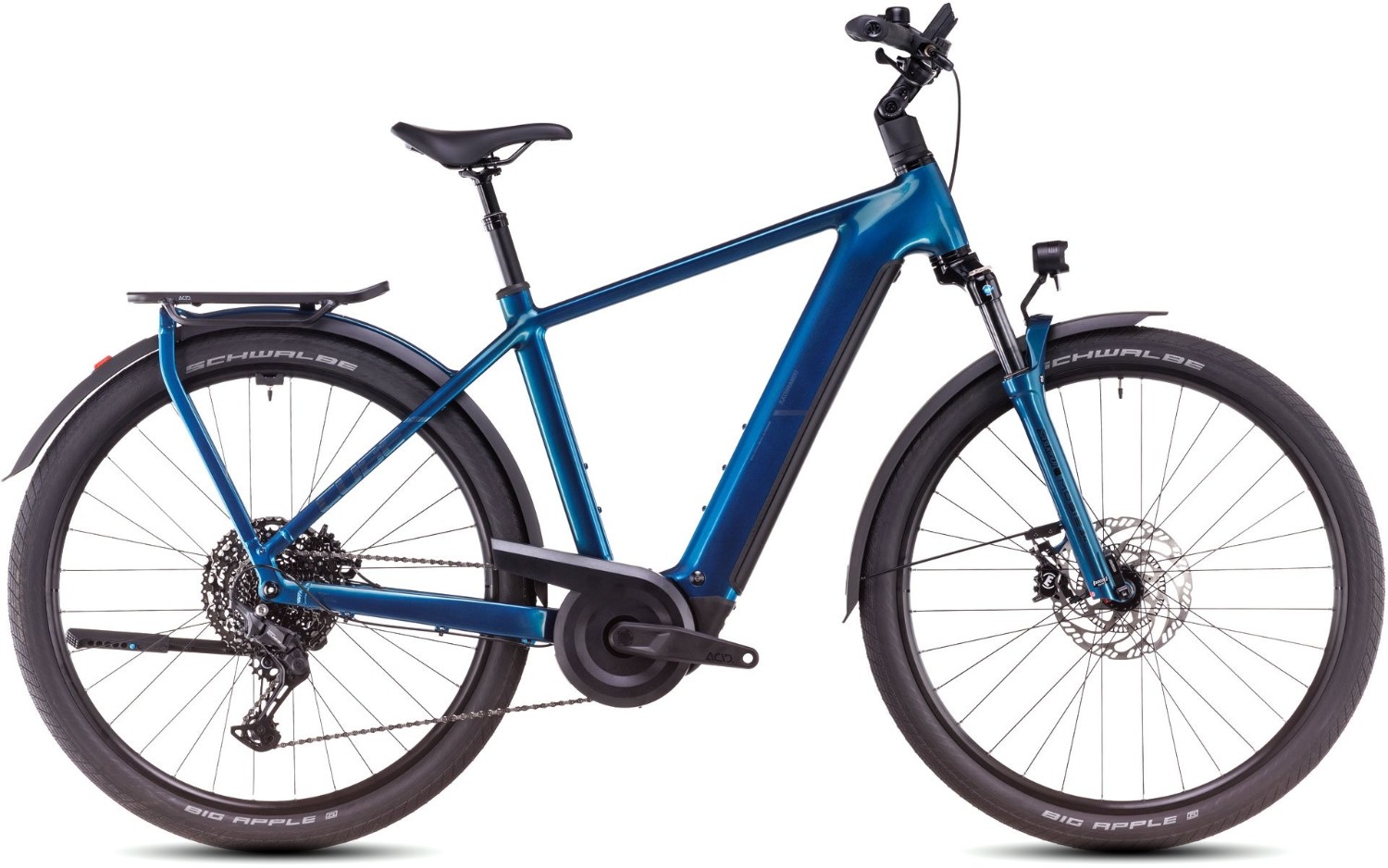

Cube Kathmandu Hybrid EX 800 2025 - Electric Hybrid Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube |
Fork | SR Suntour Mobie 35 EQ Air, ABS, Tapered, 15x110mm, 100mm |
Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC |
Stem | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
Bars | CUBE Comfort Trail Bar, 700mm |
Front Brake | Magura MT C ABS, Hydr. Disc Brake (203/203) |
Rear Brake | Magura MT C ABS, Hydr. Disc Brake (203/203) |
Rear Mech | Shimano Cues RD-U6000-GS, 11-Speed |
Shifters | Shimano Cues SL-U6000, Rapidfire-Plus |
Rims | CUBE EX25, 32H, Disc, Tubeless Ready |
Front Hub | CUBE Engineered By Newmen, 15mm, Boost, 6-Bolt |
Rear Hub | CUBE Engineered By Newmen, 12mm, Boost, 6-Bolt |
Front Tyre | Schwalbe Big Apple, Active, 55-622 |
Rear Tyre | Schwalbe Big Apple, Active, 55-622 |
Seat Post | CUBE Suspension Seatpost HD, 31.6mm |
Saddle | ACID Sequence Pro Plus |
Chainset | Acid MTB Hybrid Pro |
Chain | KMC eGlide |
Cassette | Shimano Cues CS-LG400, 11-50T |
Pedals | ACID PP MTB |
Battery Size (WH) | Bosch PowerTube 800 |
Motor | Bosch Drive Unit Performance Line CX, Smart System |
User Interface | Bosch Kiox 300 |
Cube Kathmandu Hybrid Size Chart
Frame Size |
Height (cm) |
Height (feet) |
46cm |
165 - 170 |
5’5” – 5’7” |
50cm |
170 - 175 |
5’7” – 5’9” |
54cm |
175 – 180 |
5’9” – 5’11” |
58cm |
180 - 190 |
5’11” – 6’3” |
62cm |
190 - 195 |
6’3” – 6’5” |
What size frame do I need if I am between sizes? - read here
