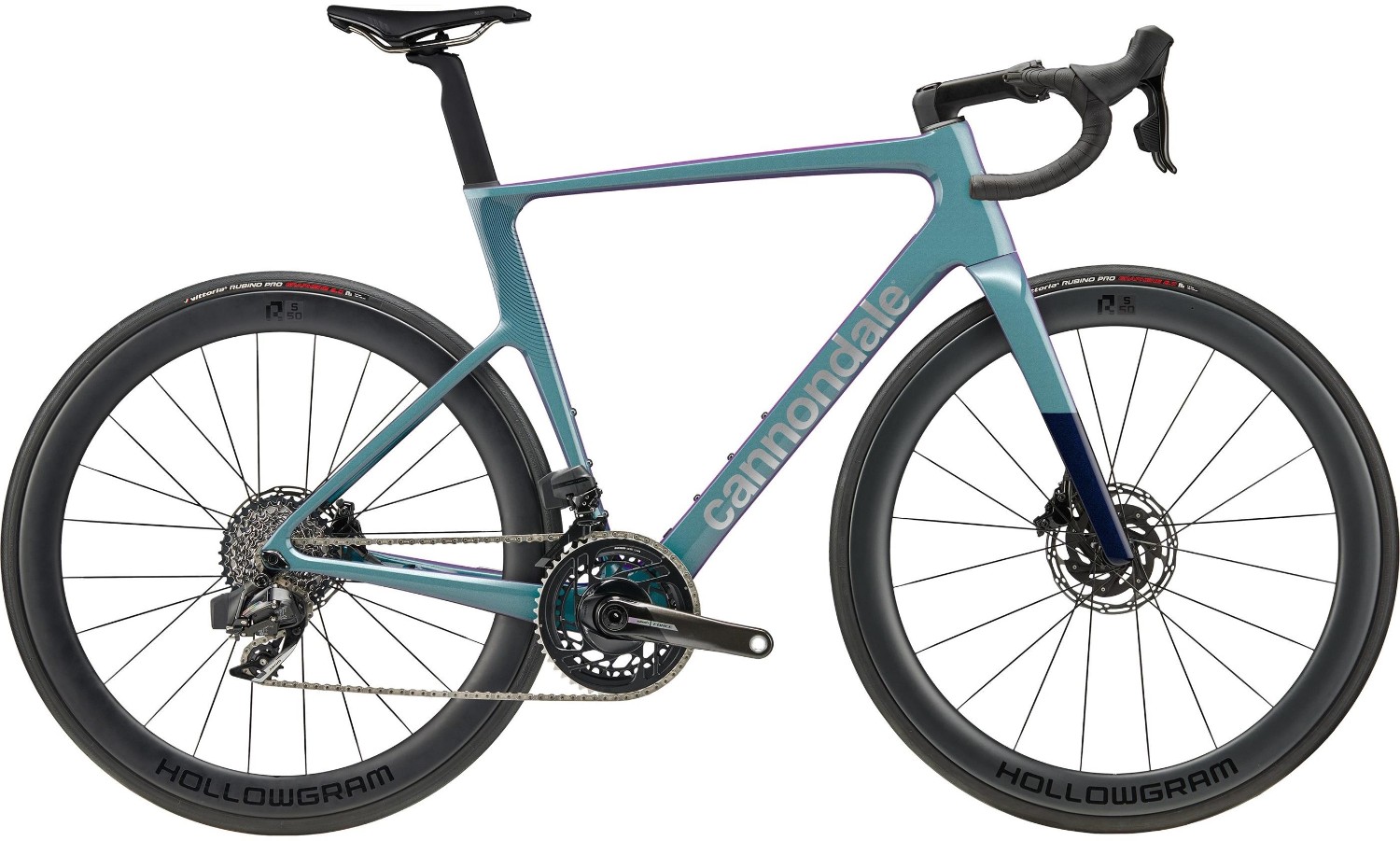

Cannondale SuperSix EVO 1 2023 - Road Bike
- Lightweight, low-drag SuperSix EVO carbon frameset – the ideal blend of speed, handling and comfort.
- SRAM Force AXS 12-speed – exceptional wireless electronic shifting from SRAM’s penultimate road group
- HollowGram R-S 50 carbon wheelset - a light and fast 50mm deep road race wheelset
- Vision Trimax Carbon Aero bars and Cannondale C1 Conceal stem - ergonomic, low-drag cockpit with hidden cables
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | SuperSix EVO Carbon,integrated cable routing w/ Switchplate, 12x142 Syntace thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense compatible |
| Fork | SuperSix EVO Carbon, integrated crown race, 12x100mm Syntace thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm) |
| Headset | Integrated, 1-1/8" - 1-1/4" |
| Stem | Cannondale C1 Conceal, Alloy, 31.8, -6° |
| Bars | Vision Trimax Carbon Aero |
| Front Brake | SRAM Force AXS Hydraulic Disc, 160/160mm PaceLine Rotors |
| Rear Brake | SRAM Force AXS Hydraulic Disc, 160/160mm PaceLine Rotors |
| Brake Lever | SRAM Force AXS hydraulic disc |
| Front Mech | SRAM Force AXS, braze-on |
| Rear Mech | SRAM Force AXS |
| Shifters | SRAM Force AXS, 12-speed |
| Speed | 24 |
| Rims | HollowGram 50 R-S, Carbon, 20h front, 24h rear, 50mm deep, 21mm IW, tubeless ready |
| Front Hub | HollowGram, sealed bearing 12x100mm centerlock |
| Rear Hub | HollowGram, 12x142mm centerlock w/ DT Swiss 350 internals |
| Spokes | Formula Grand Forza, Double Butted, straight-pullv |
| Front Tyre | Vittoria Rubino Pro Bright Black, 700 x 25c, reflective strip |
| Rear Tyre | Vittoria Rubino Pro Bright Black, 700 x 25c, reflective strip |
| Seat Post | Cannondale C1 Aero 40 Carbon, 0mm offset (44-48cm), 20mm offset (51-61cm) |
| Saddle | Prologo Dimension TiRox NDR, Titanium Rails |
| Chainset | SRAM Force, DUB, 48/35 |
| Bottom Bracket | SRAM DUB BSA |
| Chain | SRAM Force, 12-speed |
| Cassette | SRAM XG-1270, 10-33, 12-speed |
| Pedals | Resin Platform |
Cannondale SuperSix EVO 2024 Sizing
|
Size |
Height (cm) |
Height (inches) |
| 44 | 154 - 165 | 5'1" - 5'5" |
| 48 | 160 - 170 |
5'3" - 5'7" |
| 51 | 165 - 175 |
5'5 - 5'9 |
| 54 | 170 - 180 | 5'7 - 5'11 |
| 56 | 177 - 185 |
5'10 - 6'1 |
| 58 | 182 - 193 |
6'0 - 6'4 |
| 61 | 190 - 200 | 6'3 - 6'7" |
Cannondale SuperSix EVO 2024 Geometry
| 44 | 48 | 51 | 54 | 56 | 58 | 60 | |
| Seat Tube Length (cm) | 40 | 43.8 | 47.7 | 51.5 | 53.4 | 56.7 | 60 |
| Top Tube Horizontal (cm) | 51.2 | 52 | 52.8 | 54.6 | 56.2 | 57.8 | 60 |
| Top Tube Actual (cm) | 46.9 | 47.9 | 48.9 | 50.9 | 52.3 | 54.1 | 56.4 |
| Head Tube Angle | 70.9 | 71.2 | 71.2° | 71.2° | 73.0° | 73.0° | 73.0° |
| Seat Tube Angle Effective | 74.3 | 74.3 | 74.3° | 73.3° | 73.3° | 72.9° | 72.3° |
| Standover (cm) | 69.8 | 72.7 | 75.6 | 78.8 | 80.7 | 83.6 | 86.6 |
| Head Tube Length (cm) | 10 | 11.4 | 13 | 15.4 | 16.5 | 18.8 | 22 |
| Wheelbase (cm) | 98.1 | 98.7 | 99.6 | 101 | 99.4 | 100.7 | 102.4 |
| Front Center (cm) | 58.2 | 58.9 | 59.8 | 61.1 | 59.4 | 60.7 | 62.4 |
| Chain Stay Length (cm) | 41 | 41 | 41 | 41 | 41 | 41 | 41 |
| Bottom Bracket Drop (cm) | 7.4 | 7.4 | 7.4 | 7.2 | 7.2 | 6.9 | 6.9 |
| Bottom Bracket Height (cm) | 26.8 | 26.8 | 26.8 | 27.1 | 27.1 | 27.3 | 27.3 |
| Fork Rake (cm) | 5.5 | 5.5 | 5.5 | 5.5 | 4.5 | 4.5 | 4.5 |
| Trail (cm) | 6 | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 |
| Stack (cm) | 50.5 | 52 | 53.5 | 55.5 | 57.5 | 59.5 | 62.5 |
| Reach (cm) | 37 | 37.4 | 37.8 | 38.4 | 38.9 | 39.5 | 40.3 |
What size frame do I need if I am between sizes? - read here
