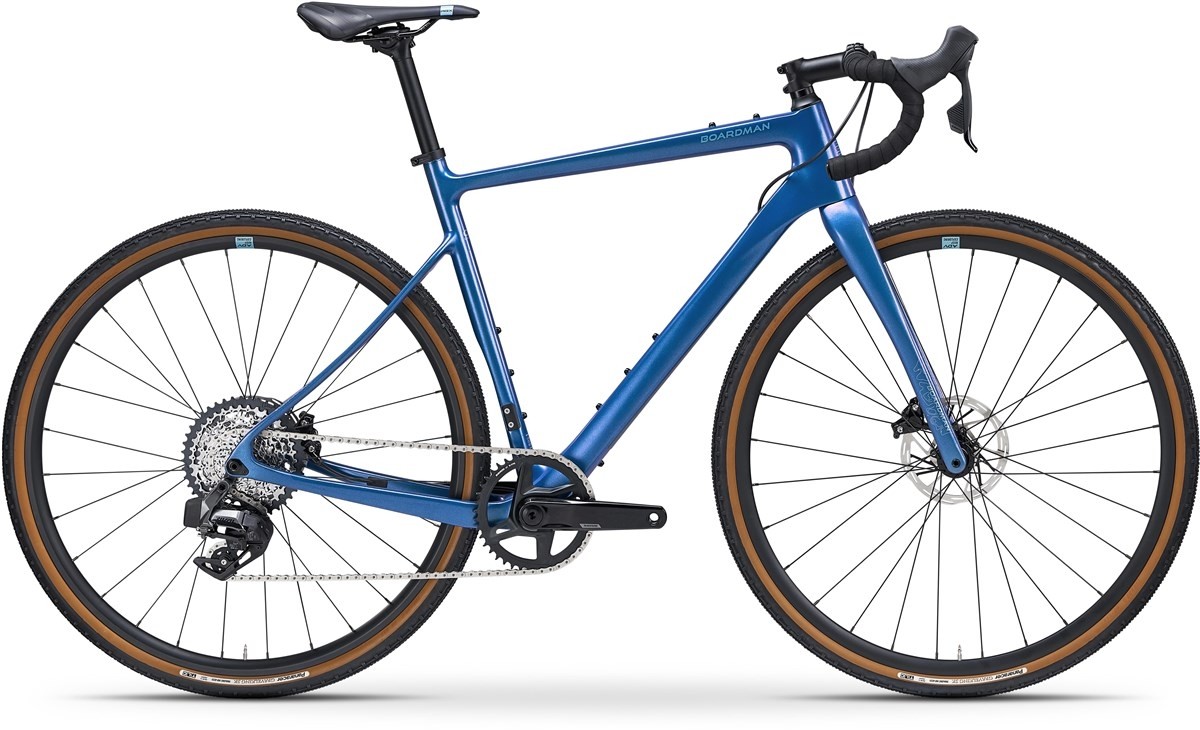

Boardman ADV 9.4 - Nearly New - M 2023 - Gravel Bike
![ADV 9.4 - Nearly New - M 2023 - Gravel Bike image 0](https://tredz.azureedge.net/prodimg/270167/1/resize=width:1000.jpg)
![ADV 9.4 - Nearly New - M 2023 - Gravel Bike image 1](https://tredz.azureedge.net/prodimg/270167/2/resize=width:1000.jpg)
![ADV 9.4 - Nearly New - M 2023 - Gravel Bike image 2](https://tredz.azureedge.net/prodimg/270167/3/resize=width:1000.jpg)
![ADV 9.4 - Nearly New - M 2023 - Gravel Bike image 3](https://tredz.azureedge.net/prodimg/270167/4/resize=width:250.jpg)
![ADV 9.4 - Nearly New - M 2023 - Gravel Bike image 1](https://tredz.azureedge.net/prodimg/270167/2/resize=width:1000.jpg)
![ADV 9.4 - Nearly New - M 2023 - Gravel Bike image 2](https://tredz.azureedge.net/prodimg/270167/3/resize=width:1000.jpg)
![ADV 9.4 - Nearly New - M 2023 - Gravel Bike image 3](https://tredz.azureedge.net/prodimg/270167/4/resize=width:250.jpg)
This ADV 9.4 - Nearly New - M gravel bike is rated the highest possible grade which reflects that the bike is in excellent condition and can be reasonably considered to be like new. Having never been ridden, the only minor cosmetic marks are on the seatpost and fork.
To ensure this bike meets our high standards for quality, it has undergone a thorough inspection by our professional mechanics. As with all our bikes, it comes with a 12-month Tredz warranty, plus any additional manufacturer warranty which may apply.
The Boardman ADV 9.4 is designed to shine on the U.K.'s network of bridleways, fire roads and towpaths, not to mention those pothole-ridden lanes. The all-new 9.4 adds SRAM's wireless Rival XPLR eTap AXS 12 speed groupset onboard the award-winning carbon ADV frameset, giving outstanding comfort, control and performance on a variety of surfaces.
Key Features:
- Boardman ADV C10 Carbon frame delivers a confidence-inspiring ride
- C10 Carbon fork absorbs road and trail vibrations for comfortable compliance
- SRAM Rival Hydraulic Brakeset for powerful braking
- SRAM Rival eTap 12 Speed drivetrain for slick shifting
- Sizes: Small, Medium, Large, X Large
- Colours: Blue
- The Boardman ADV 9.4 is available with 0% APR finance
At the heart of the ADV is the all-new C10 Carbon frame - light and efficient at 990g, but with geometry and features to make off-road or rough-road riding fun and confidence-inspiring. A contoured seat tube and bow-curved seat stays add compliance, absorbing impacts and reducing fatiguing vibration. Stable handling comes from slack head angles and a low 73mm bottom bracket drop, but short stems offer agility and responsive steering across the size range. Long top tubes still allow an efficient position for fast rides too. With clearance for 42mm 700c tyres, hidden mudguard mounts and multiple mounting points for bottles and accessories inside the front triangle as well as under the down tube and top tube, the 9.4 is ready to go anywhere your imagination (and legs) can take you.
SRAM's Rival XPLR eTap AXS groupset is the most affordable gravel-specific electronic groupset and offers impressive performance. Wireless shifts across the 12 speed 10-44t cassette are fast and smooth and combined with a single 42t chainring up front; there's a massive range of gears for off-road climbing right through to fast road descents. A 1X system brings simplicity to shifting; simply press the left shift paddle for an easier gear or the right one for a harder gear, leaving you free to stay in the moment as you explore. Powerful hydraulic disc brakes make the 9.4 easy to control on loose surfaces, with plenty of stopping power on tap when you need it.
Tyre choice is critical when it comes to mixed-terrain riding; too aggressive and you'll struggle on the road, not aggressive enough, and you could find yourself the wrong side up when the terrain gets tricky. For that reason, the ADV 9.4 comes with Panaracer's 38mm GravelKing SK tyres. A closely packed centre tread rolls fast on compacted surfaces, while the blocky, more widely spaced edge knobs give plenty of bite for cornering on looser, muddier surfaces. A supple, 120tpi tubeless-ready casing enhances grip and comfort. Wheels are a custom-built Boardman ADV set up, with through-axle hubs laced with 28 Sapim Race spokes to 20mm internal width alloy rims. They come taped for tubeless and with valves supplied; it's just a case of adding sealant to reap all the benefits of ditching inner tubes!
A Prologo Akero AGX saddle is a comfortable, lightweight perch designed for rough riding. The Boardman ADV handlebars have a 6-degree flare to the drops, offering a wider stance for better control when descending off-road and a bit of extra space if you wanted to fit a bar bag.
All Tredz bikes are :
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on baskets over £99
- 365 day no hassle returns
- UK price match promise
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Boardman ADV - C10 Carbon 142x12mm Thru Axle |
Fork | C10 Carbon with Tapered Steerer - 100x12mm Thru Axle |
Headset | FSA Orbit C-40 ACB, 1 1/8” - 1.5” Tapered, Integrated. |
Stem | Boardman Alloy, 31.8mm |
Bars | Boardman Alloy, 31.8mm clamp, 70mm reach, 120mm drop, 6 degree flare |
Front Brake | SRAM Rival Hydraulic Disc Brakes - 160mm Rotor |
Rear Brake | SRAM Rival Hydraulic Disc Brakes - 160mm Rotor |
Brake Lever | SRAM Rival eTap AXS |
Rear Mech | SRAM Rival XPLR eTap AXS |
Shifters | SRAM Rival eTap AXS |
Speed | 12 |
Rims | Boardman ADV Tubeless Ready |
Front Hub | Boardman ADV Tubeless Ready |
Rear Hub | Boardman ADV Tubeless Ready |
Front Tyre | Panaracer Gravel King SK, 700x38mm - Tubeless Ready |
Rear Tyre | Panaracer Gravel King SK, 700x38mm - Tubeless Ready |
Seat Post | Boardman Alloy, 27.2mm |
Saddle | Prologo Akero AGX |
Chainset | SRAM Rival 1 Wide - 42T |
Bottom Bracket | SRAM DUB for BB386 |
Chain | SRAM RIVAL |
Cassette | SRAM Rival XPLR XG-1251 12 Speed - 10-44t |
Pedals | Wellgo alloy with straps, 9/16” |
Typical Bike Size Chart
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
