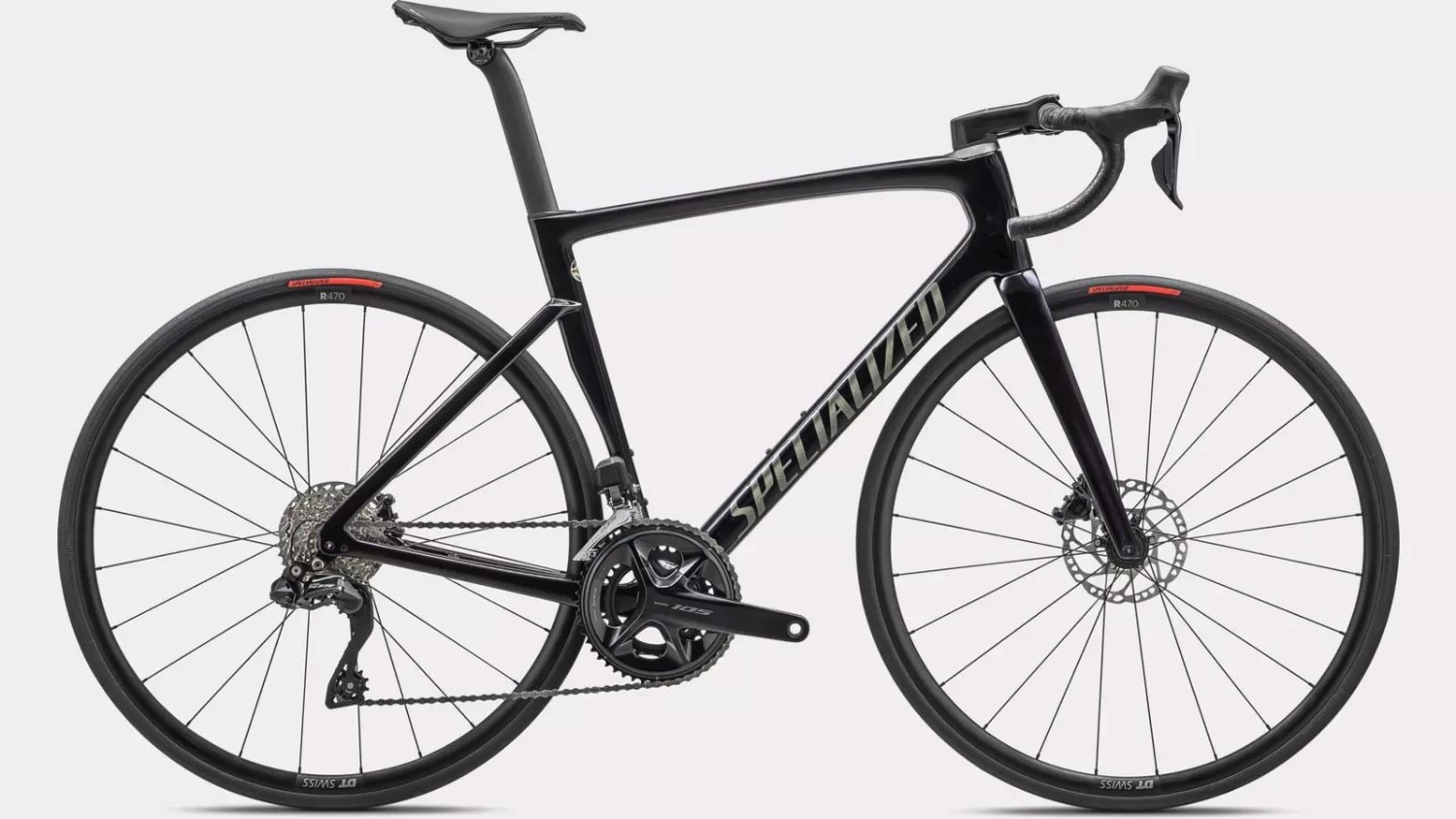

Specialized Tarmac SL7 Comp 105 Di2 2023 - Road Bike
The new Tarmac is designed to go fast there's no if's and's or but's about that—but it represents so much more than just aerodynamic prowess. With a light-weight Rider-First Engineered™ frame it delivers the best-possible ride characteristics no matter the size. So no matter what you have planned for your new Tarmac its ready to help you achieve your goals—PRs KOMs or podium top-steps. One bike to rule them all.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Tarmac SL7 FACT 10r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc |
| Fork | FACT carbon, 12x100mm thru-axle, flat-mount disc |
| Stem | Tarmac integrated stem, 6-degree |
| Bars | Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp |
| Front Brake | Shimano 105 R7170, hydraulic disc |
| Rear Brake | Shimano 105 R7170, hydraulic disc |
| Brake Lever | Shimano 105 R7170 |
| Front Mech | Shimano 105 R7170, braze-on |
| Rear Mech | Shimano 105 R7170, 12-speed |
| Shifters | Shimano 105 R7170, 12-speed |
| Speed | 24 |
| Rims | DT R470 Disc |
| Front Hub | DT R470 Disc |
| Rear Hub | DT R470 Disc |
| Front Tyre | Turbo Pro, 700x26 |
| Rear Tyre | Turbo Pro, 700x26 |
| Seat Post | 2021 S-Works Tarmac Carbon seat post, FACT Carbon, 20mm offset |
| Saddle | Body Geometry Power Sport, steel rails |
| Chainset | Shimano 105, 12-speed, 50/34T |
| Bottom Bracket | Shimano Threaded BSA BB |
| Chain | Shimano SLX M7100, 12-speed w/ quick link |
| Cassette | Shimano 105, 12-speed, 11-34t |
| Pedals | Resin Platform |
Specialized Tarmac 2021 Sizing & Geometry
|
Size |
Height (cm) |
Height (inches) |
|
44 |
142 - 155 |
4’8 – 5’1” |
|
49 |
155 - 163 |
5’1 – 5’4” |
|
52 |
163 - 170 |
5’4 – 5’7” |
|
54 |
170 - 175 |
5’7 – 5’9” |
|
56 |
175 - 180 |
5’9 – 5’11” |
|
58 |
180 - 188 |
5’11 – 6’2” |
|
61 |
188 - 196 |
6’2 – 6’5” |
Specialized Tarmac 2021 SL7 Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|---|
| CRANK LENGTH | 165mm | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| STEM LENGTH | 70mm | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm |
| SEATPOST LENGTH | 300 | 300 | 300 | 380 | 380 | 380 | 380 |
| SADDLE WIDTH | 155mm | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| HANDLEBAR WIDTH | 360mm | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| REACH | 369mm | 378mm | 383mm | 387mm | 398mm | 405mm | 411mm |
| TOP TUBE LENGTH, HORIZONTAL | 496mm | 509mm | 531mm | 541mm | 563mm | 577mm | 595mm |
| STACK | 491mm | 504mm | 517mm | 534mm | 555mm | 581mm | 602mm |
| WHEELBASE | 970mm | 973mm | 975mm | 978mm | 991mm | 1006mm | 1013mm |
| CHAINSTAY LENGTH | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm |
| FRONT CENTER | 572mm | 574mm | 577mm | 579mm | 592mm | 606mm | 613mm |
| BB DROP | 74mm | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm |
| BB HEIGHT | 266mm | 266mm | 266mm | 268mm | 268mm | 268mm | 268mm |
| SEAT TUBE ANGLE | 75.5° | 75.5° | 74° | 74° | 73.5° | 73.5° | 73° |
| HEAD TUBE ANGLE | 70.5° | 71.75° | 72.5° | 73° | 73.5° | 73.5° | 74° |
| SEAT TUBE LENGTH | 435mm | 447mm | 458mm | 475mm | 496mm | 517mm | 547mm |
| HEAD TUBE LENGTH | 93mm | 102mm | 113mm | 131mm | 151mm | 178mm | 198mm |
| BIKE STANDOVER HEIGHT | 723mm | 735mm | 746mm | 768mm | 786mm | 808mm | 834mm |
| FORK RAKE/OFFSET | 47mm | 47mm | 47mm | 44mm | 44mm | 44mm | 44mm |
| FORK LENGTH, FULL | 366mm | 366mm | 366mm | 366mm | 366mm | 366mm | 366mm |
| TRAIL | 71mm | 63mm | 58mm | 58mm | 55mm | 55mm | 52mm |
What size frame do I need if I am between sizes? - read here
