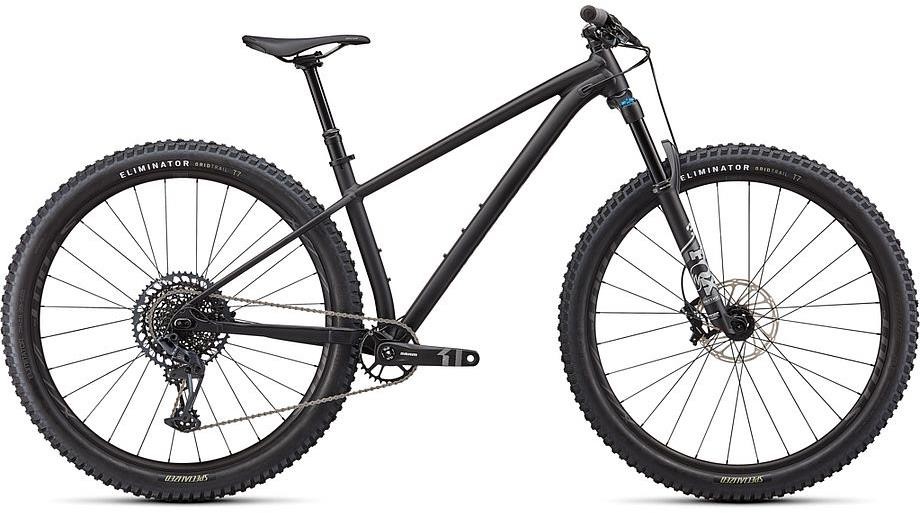

Specialized Fuse Expert 29" Mountain Bike 2022 - Hardtail MTB
FEATURES
The Fuse Expert 29 thriving on the kind of technical trails that make other hardtails cry. The top-shelf Fuse Expert 29 brings all of that to play with its light-yet-burly M4 aluminium chassis and a component package that takes a beating and comes back for more.
ROWDY BY DESIGN
The Fuse is loaded with smart touches. The wide-diameter down tube boosts stiffness. The low-slung top tube gives you the clearance to throw the bike around on tight trails. And while this Fuse’s 29x2.6 tires give it a precise, nimble feel, the frame is also compatible with 27.5+ wheels and tires.
PERFECTLY DIALED
If you fail to nail the geometry, advanced materials and innovative designs still amount to nothing out on the trail. Fuse gets it right. The long reach gives you even weight distribution. The slack head angle lends confidence on sketchy descents. The steep seat angle makes quick work of steep climbs.
- 130-millimeters of plush suspension courtesy of a Fox Float 34 Rythm fork.
- SRAM GX Eagle 12-speed drivetrain gives you single-ring simplicity yet lets you tackle big climbs without coughing up a lung.
- Stout Trail SL wheelset is light yet fends off abuse.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Specialized M4 Premium Aluminum, 148mm thru-axle, adjustable dropout, SS compatible, tapered head tube, internal cable routing |
| Fork | FOX FLOAT 34 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 44mm offset, 130mm of travel |
| Stem | Stout 3D-forged alloy, 31.8mm, 6-degree rise |
| Bars | Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm |
| Front Brake | SRAM G2, 4-piston, 200/180mm |
| Rear Brake | SRAM G2, 4-piston, 200/180mm |
| Rear Mech | SRAM GX Eagle, 12-speed |
| Shifters | SRAM GX Eagle, 12-speed |
| Speed | 12 |
| Rims | Specialized Alloy, Tubeless Ready, 29mm internal width, 28h |
| Front Hub | Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h |
| Rear Hub | Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h |
| Spokes | Stainless, 14g |
| Front Tyre | Eliminator, GRID TRAIL casing, GRIPTON T7 compound, 2Bliss Ready, 29x2.6" |
| Rear Tyre | Eliminator, GRID TRAIL casing, GRIPTON T7 compound, 2Bliss Ready, 29x2.6" |
| Seat Post | TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm |
| Saddle | Bridge Comp, Hollow Cr-mo rails, 155/143mm |
| Chainset | SRAM, X1 Alloy Eagle, 12-speed, 32T |
| Bottom Bracket | SRAM DUB, BSA 73mm, threaded |
| Chain | SRAM, NX Eagle, 12-speed |
| Cassette | SRAM XG-1275, 12-speed, 10-52t |
| Pedals | Resin Platform |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
