With Future Shock suspension front and rear you’ll be riding farther and faster over chunkier terrain than you believed possible. And the Diverge STR does this without the weight, sluggish pedal response, and inefficiency of other suspension systems. The Diverge STR Expert starts with our FACT 11r carbon frameset with front and rear Future Shock suspension. It’s built with a mix of SRAM’s Rival and GX AXS components for fast, efficient shifting with a 10-50 cassette to ensure you have the gearing to tackle any ride. The bike rolls on the Roval Terra C wheels with 42mm Tracer Pro tires. Adventure Gear alloy handlebars, an S-Works carbon seatpost, and Power Expert saddle complete the package making the Diverge STR the most capable Diverge ever.

The new Diverge doesn’t just have gorgeous lines, it has perfect curves too. Future Shock Rear puts 30mm of rear travel in the ideal path to smooth out rough road. Its hydraulic damping controls travel to eliminate “bobbing” under power and ensure big hits never catapult you from the saddle, all without compromising fit or pedaling efficiency.

By suspending the rider with damped, tunable travel—20mm front/30mm rear—Future Shock Technology absorbs bump forces to boost your control and capability while retaining the efficiency and responsiveness of a rigid frame. Because as far as power transfer goes, it is a rigid frame. Power to the pedals makes the bike jump like a scared cat. You’re efficient, you’re comfortable, you’re in control. Your bike is light, nimble, and responsive.

Born from decades of innovation and our Smoother is Faster philosophy, Future Shock was created to develop bikes that win on cobblestones, but it’s found its purest expression on gravel. It’s 20mm of adjustable, damped front travel that keeps you in control and on target, all while protecting your hands, arms, and shoulders from the battering.

More capability means more confidence, more confidence means more rides, more rides mean more fun, and it all starts at the contact patch. Nothing unlocks capability like tire clearance, and we’re feeling generous. 47mm on a 700c wheel and 2.1” on 650B. Diverge STR is the most capable gravel bike we’ve ever made, so it’s the most fun. We did the math.

Occasionally, without notice, manufacturers change product design and/or specifications.

Frame	Diverge FACT 11r carbon frameset with front and rear Future Shock suspension, SWAT™ Door integration, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
Fork	Future Shock 3.2 w/ Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount
Stem	Future Stem, Comp
Bars	Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Front Brake	SRAM Rival eTAP AXS, hydraulic disc
Rear Brake	SRAM Rival eTAP AXS, hydraulic disc
Brake Lever	SRAM RIVAL
Rear Mech	SRAM GX Eagle AXS, w/ battery cover
Shifters	SRAM Rival eTap AXS
Speed	12
Rims	Roval Terra C, 25mm inner width carbon rim, 32mm depth
Front Hub	DT 370 hub, 24h
Rear Hub	DT 370 Star Ratchet hub
Spokes	DT Swiss Comp Race spokes
Front Tyre	Tracer Pro 2BR, 700x42
Rear Tyre	Tracer Pro 2BR, 700x42
Seat Post	S-Works Carbon Seat Post, 20mm Offset
Saddle	Body Geometry Power Expert
Chainset	SRAM Rival 1 Wide. 40T
Bottom Bracket	SRAM DUB BSA 68
Chain	SRAM GX Eagle, 12-speed
Cassette	SRAM NX Eagle PG-1230, 12-speed, 11-50t
Pedals	Resin Platform
Weight	9.93 kg

Size	Height (cm)	Height (Inches)
49cm	152 - 163	5'0" - 5'4"
52cm	163 - 170	5'4" - 5'7"
54cm	170 - 178	5'7 - 5'10"
56cm	175 - 180	5'9" - 6'0"
58cm	180 - 188	5'11" - 6'2"
61cm	188 - 196	6'2" - 6'5"

Frame Size (cm)	49	52	54	56	58	61
Crank length	165	170	172.5	172.5	175	175
Stem length	60	70	80	90	100	100
Handlebar width	380	400	420	420	440	440
Seatpost length	350	350	350	350	350	350
Saddle width	155	155	143	143	143	143
Stack	569	576	593	609	633	659
Reach	365	374	383	392	401	410
Head tube length	100	100	115	130	155	182
Head tube angle	70	70.5	71.25	71.75	71.75	71.75
BB height	270	265	265	265	265	265
BB drop	80	85	85	85	85	85
Trail	69	66	61	57	57	57
Fork length	390	390	390	390	390	390
Fork rake/offset	55	55	55	55	55	55
Front center	607	612	619	629	645	663
Chainstay length	429	429	429	429	429	429
Wheelbase	1023	1027	1034	1044	1060	1078
Top tube length	527	540	556	570	586	602
Bike standover height	704	730	753	778	804	833
Seat tube length	390	430	470	500	530	560
Seat tube angle	74.5	74.25	74	74	74	74

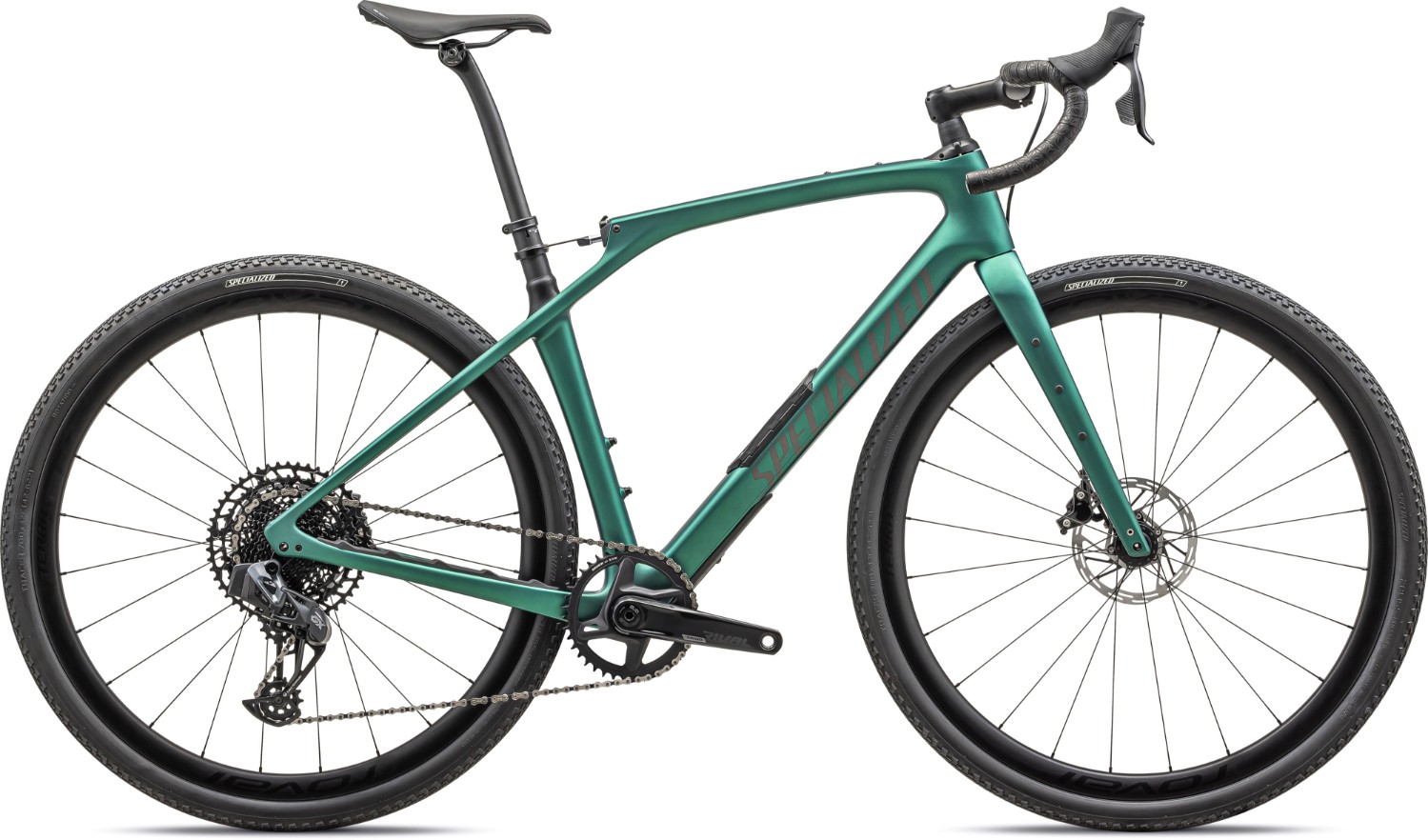

Specialized Diverge STR Expert 2024 - Gravel Bike

Specialized Diverge STR 2024 Size Chart

Specialized Diverge STR 2024 Geometry Chart
