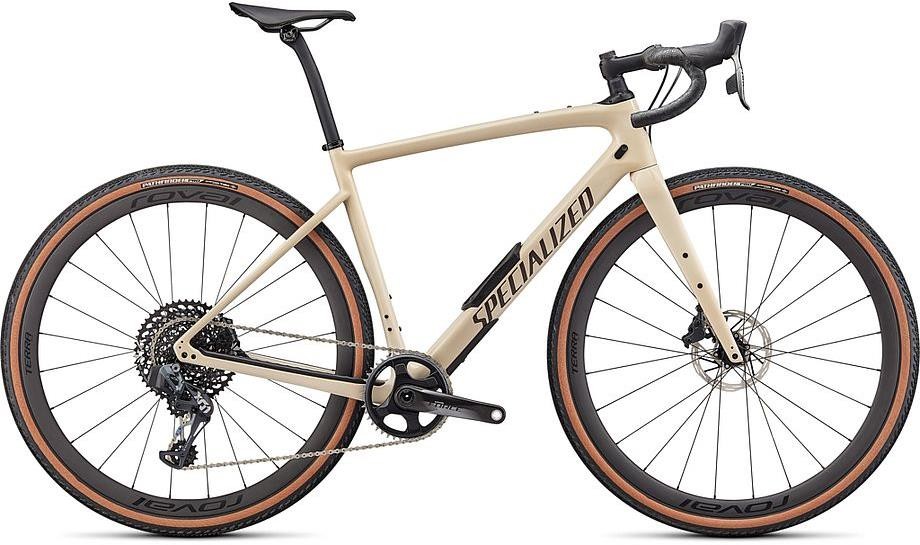

Specialized Diverge Pro Carbon 2023 - Gravel Bike
FEATURES
Whether your goal is to escape on gravel back roads, far from cars and crowds, or drop the hammer at the front of your favourite gravel race, no bike does it better than the new Diverge. It’s quite simply the fastest, most capable - and just maybe the most fun - bike we’ve ever made, delivering a ride that’s quick and lively under power, but stable and confidence inspiring when the terrain gets rough. From Future Shock 2.0 and all-new gravel geometry, to internal storage and category leading tire clearance, the new Diverge represents everything we’ve learned over more than 40 years of riding road, gravel and dirt. The Diverge writes an entirely new chapter in the gravel bike category, so you can dream up entirely new rides. It’s the ultimate getaway vehicle.
Imagine your biggest ride, dream of gravel racing glory, Diverge Pro’s your partner in crime. It all starts with a FACT 9r carbon frame and Future Shock 2.0 for a light and lively ride that’s incredibly stable and confidence inspiring. A huge range of gears, flawless shifts in any terrain, and a simple, wireless 1x set-up is provided by SRAM’s Force AXS eTap group and SRAM’s Orbit fluid clutch. Roval’s ultralight and super tough Terra CL wheels with Kanza winning Pathfinder Pro 38mm tires deliver the most versatile and capable combination for mixed surface and challenging terrain, while a Roval Terra seat post ensures the Diverge Pro is perfectly balanced for the ultimate ride.
- With a FACT 9r carbon frame, the Diverge Expert frame is incredible capable and race bike light. Pin it for your local dirt climb KOM, or grind up a giant back country peak, the light and lively Diverge will get you there faster.
- Speed, control and confidence - Future Shock 2.0 is the ultimate technology for the gravel rider. With 20mm of axial compliance and a hydraulic damper, Future Shock 2.0 suspends the rider not the bike. This keeps you confident and in control, able to keep the power down and stay off the brakes over rough dirt roads and in thick loose gravel, all while keeping your hands, arms and neck fresh. Since Future Shock 2.0’s damper is adjustable, you’ll be ready for the rough stuff and efficient on smooth pavement.
- We tossed gravel geometry ‘status-quo’ out the window. The new Diverge has the most progressive geometry we’ve ever created for a drop bar bike, giving riders a capable and stable bike in the dirt, that still feels responsive and nimble on the road. We’ve increased the frame’s reach, introduced a slacker head tube and a longer offset fork. All this creates incredible confidence with a planted feeling in the dirt, while spec’ing shorter stems keeps the overall cockpit length the same and the steering lively. We’ve kept the bike’s BB low to increase stability, but high enough to utilize with 650b wheels if that’s your jam.
- We’ve given the Diverge plenty of rack mounts, including fork and top tube mounts, to ensure you can take what you need, no matter how far you plan to go, or how long you plan to stay out.
- Nothing unlocks a bike’s capability like tire clearance, so we gave the new Diverge a whopping 47mm of tire clearance with a 700c wheel and 2.1” with a 650b wheel. Thanks to a drive side chain stay utilizing a solid beam of carbon behind the chain rings we’ve created clearance without using a fragile dropped chain stay design or increasing chain stay length.
- The more capable your bike, the bigger your rides get, so Diverge borrows SWAT internal storage from the legendary Stumpy. The SWAT door lets you utilize space in the down tube to store tools, a flat kit, nutrition and even our SWAT Jacket. It keeps weight off your body, low in the bike for better handling, and makes you more self-sufficient, so get out there. SWAT’s got your back.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Specialized Diverge FACT 9r carbon, SWAT Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc |
| Fork | Future Shock 2.0 w/ Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount |
| Stem | Future Stem, Pro |
| Bars | Roval Terra, carbon, 103mm drop x 70mm reach x 12 flare |
| Front Brake | SRAM Force, hydraulic disc, 160mm Paceline rotor |
| Rear Brake | SRAM Force, hydraulic disc, 160mm Paceline rotor |
| Rear Mech | SRAM X01 Eagle AXS |
| Shifters | SRAM Force eTap AXS |
| Speed | 12 |
| Rims | Roval Terra CL |
| Front Hub | Tubeless ready |
| Rear Hub | DT for Roval 350 hub |
| Front Tyre | PATHFINDER PRO 2BR, TAN SIDEWALL, 700x42 |
| Rear Tyre | PATHFINDER PRO 2BR, TAN SIDEWALL, 700x42 |
| Seat Post | Roval Terra Carbon Seat Post, 20mm Offset |
| Saddle | Body Geometry Power Pro, hollow titanium rails |
| Chainset | SRAM Force 1 42T |
| Bottom Bracket | SRAM DUB BSA 68 |
| Chain | SRAM X01 Eagle, 12-speed |
| Cassette | SRAM XG-1275 Eagle, 12-speed, 10-50t |
| Pedals | Resin Platform |
Specialized Diverge 2023 Size Chart
| Size | Height (cm) | Height (Inches) |
| 44cm | 142 - 152 | 4'8 - 5'0" |
| 49cm | 152 - 163 | 5'0" - 5'4" |
| 52cm | 163 - 170 | 5'4" - 5'7" |
| 54cm | 170 - 178 | 5'7" - 5'10" |
| 56cm | 175 - 180 | 5'9" - 6'0" |
| 58cm | 180 - 188 | 5'11" - 6'2" |
| 61cm | 188 - 196 | 6'2" - 6'5" |
Specialized Diverge 2023 Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|---|
| Crank Length | 165 | 165 | 170 | 172.5 | 172.5 | 175 | 175 |
| Handlebar Width | 360 | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem Length | 60 | 60 | 70 | 80 | 90 | 100 | 100 |
| Saddle Width | 155 | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 350 | 350 | 350 | 400 | 400 | 400 | 400 |
| Stack | 529 | 545 | 561 | 578 | 599 | 618 | 635 |
| Reach | 357 | 365 | 374 | 383 | 392 | 401 | 410 |
| Head Tube Length | 110 | 125 | 140 | 155 | 175 | 195 | 213 |
| Head Tube Angle | 69.5 | 70 | 70.5 | 71.25 | 71.75 | 71.75 | 71.75 |
| BB Height | 270 | 270 | 270 | 270 | 270 | 270 | 270 |
| BB Drop | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Trail | 72 | 69 | 66 | 61 | 57 | 57 | 57 |
| Fork Length Trail | 390 | 390 | 390 | 390 | 390 | 390 | 390 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Front Center | 589 | 589 | 608 | 615 | 626 | 641 | 656 |
| Chainstay Length | 432 | 432 | 432 | 432 | 432 | 432 | 432 |
| Wheelbase | 1008 | 1017 | 1027 | 1035 | 1046 | 1061 | 1076 |
| Top Tube Length | 504 | 521 | 538 | 554 | 570 | 584 | 598 |
| Bike Standover Height | 680 | 703 | 723 | 763 | 789 | 808 | 834 |
| Seat Tube Length | 363 | 390 | 430 | 470 | 500 | 530 | 560 |
| Seat Tube Angle | 74.5 | 74 | 73.75 | 73.5 | 73.5 | 73.5 | 73.5 |
