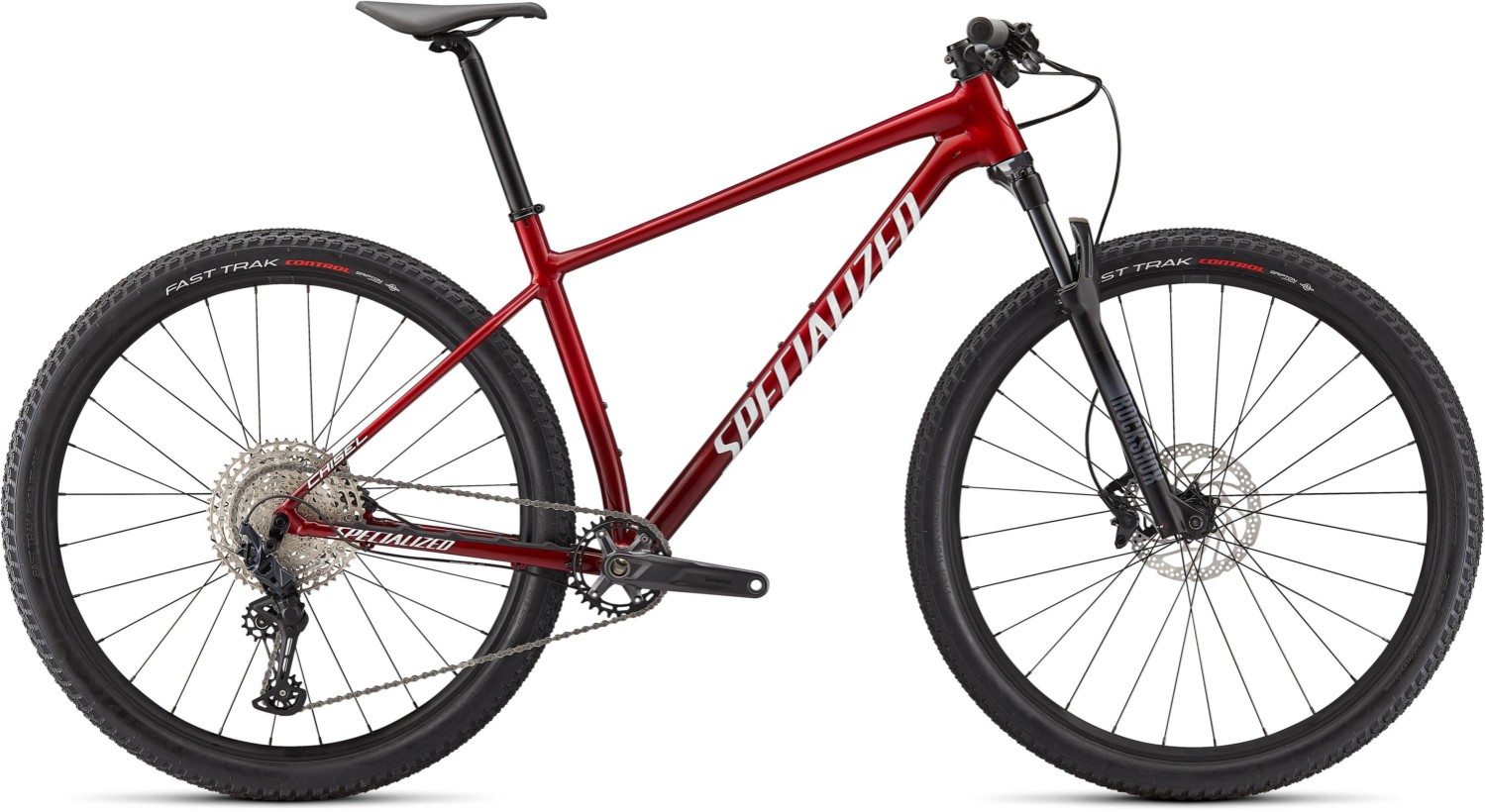

Specialized Chisel Comp 29" Mountain Bike 2021 - Hardtail MTB

The all-new Chisel Comp is the perfect bike to begin your journey into XC riding and racing, with all of the features to get you to that elusive "top step" at a price that leaves some jingle jangle left over for race entries.
This Chisel comes dressed with Shamano's crisp-shifting SLC 1x12 drivetrain and powerful M6100 hydraulic disc brakes, a 100mm (Size XS: 80mm) RockShox Judy Gold fork, and 25mm internal width alloy wheels wrapped in 2.3 Fast Track Control casing tires.
- The Chisel's all-new frame utilizes our D'Aluisio Smartweld technology that moves the hydroformed tube joints away from the areas of the highest stress, making the finished frame's balance of strength, rigidity, and weight more pronounced than any alloy frame in history. This not only makes the Chisel one of the lightest alloy hardtail frames coming in as light as 1,400g, but it also allows for tuned frame stiffness across all sizes.
- The new Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible |
Fork | RockShox Judy Gold, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel) |
Stem | Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise |
Bars | Stout XC, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm |
Front Brake | Shimano M6100, 2-piston caliper, hydraulic disc |
Rear Brake | Shimano M6100, 2-piston caliper, hydraulic disc |
Rear Mech | Shimano SLX M7100, SGS, 12-speed |
Shifters | Shimano SLX, M7100, 12spd |
Speed | 12 |
Rims | Alloy, Offset Design, Tubeless Ready, 25mm internal width, 28h |
Front Hub | Shimano MT410-B, Centerlock 28h, 15x110 Boost |
Rear Hub | Shimano MT410-B, Centerlock 28h, 12x148 Boost, Microspline |
Spokes | Stainless, 14g |
Front Tyre | Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3" |
Rear Tyre | Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3" |
Seat Post | Specialized Alloy, Single Bolt, 30.9mm |
Saddle | Body Geometry Power Sport, steel rails |
Chainset | Shimano MT511, 32T chainring |
Bottom Bracket | Shimano, BB52, Threaded |
Chain | Shimano Deore M6100, 12spd w/quick link |
Cassette | Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t |
Pedals | Resin Platform |
Specialized Chisel 2021 Size Chart
Size |
Height (cm) |
Height (inches) |
XS |
148 – 158 |
4’10”- 5’2” |
S |
158 – 165 |
5’2”- 5’5” |
M |
165 - 178 |
5’5”- 5’10” |
L |
178 – 185 |
5’10”- 6’1” |
XL |
185 – 193 |
6’1”- 6’4” |
XXL |
191 - 200 |
6’3”- 6’6” |
What size frame do I need if I am between sizes? - read here
Specialized Chisel 2021 Geometry
Size |
XS |
S |
M |
L |
XL |
Crank Length |
170mm |
170mm |
175mm |
175mm |
175mm |
Stem Length |
60mm |
60mm |
70mm |
70mm |
70mm |
Seatpost Length |
350mm |
400mm |
400mm |
400mm |
400mm |
Saddle Width |
155mm |
155mm |
143mm |
143mm |
143mm |
Handlebar Width |
750mm |
750mm |
750mm |
750mm |
750mm |
Reach |
385mm |
405mm |
430mm |
455mm |
480mm |
Top Tube Length, Horizontal |
555mm |
578mm |
603mm |
632mm |
661mm |
Stack |
591mm |
605mm |
605mm |
619mm |
633mm |
Wheelbase |
1070mm |
1099mm |
1124mm |
1154mm |
1185mm |
Chainstay Length |
432mm |
432mm |
432mm |
432mm |
432mm |
Front Center |
647mm |
674mm |
699mm |
730mm |
760mm |
Bb Drop |
68mm |
63mm |
63mm |
63mm |
63mm |
Bb Height |
304mm |
309mm |
309mm |
309mm |
309mm |
Seat Tube Angle |
74° |
74° |
74° |
74° |
74° |
Head Tube Angle |
68° |
68° |
68° |
68° |
68° |
Seat Tube Length |
367mm |
400mm |
430mm |
470mm |
520mm |
Head Tube Length |
95mm |
95mm |
95mm |
110mm |
125mm |
Bike Standover Height |
732mm |
762mm |
792mm |
816mm |
847mm |
Fork Rake/Offset |
44mm |
44mm |
44mm |
44mm |
44mm |
Fork Length, Full |
486mm |
506mm |
506mm |
506mm |
506mm |
Trail |
103mm |
103mm |
103mm |
103mm |
103mm |
