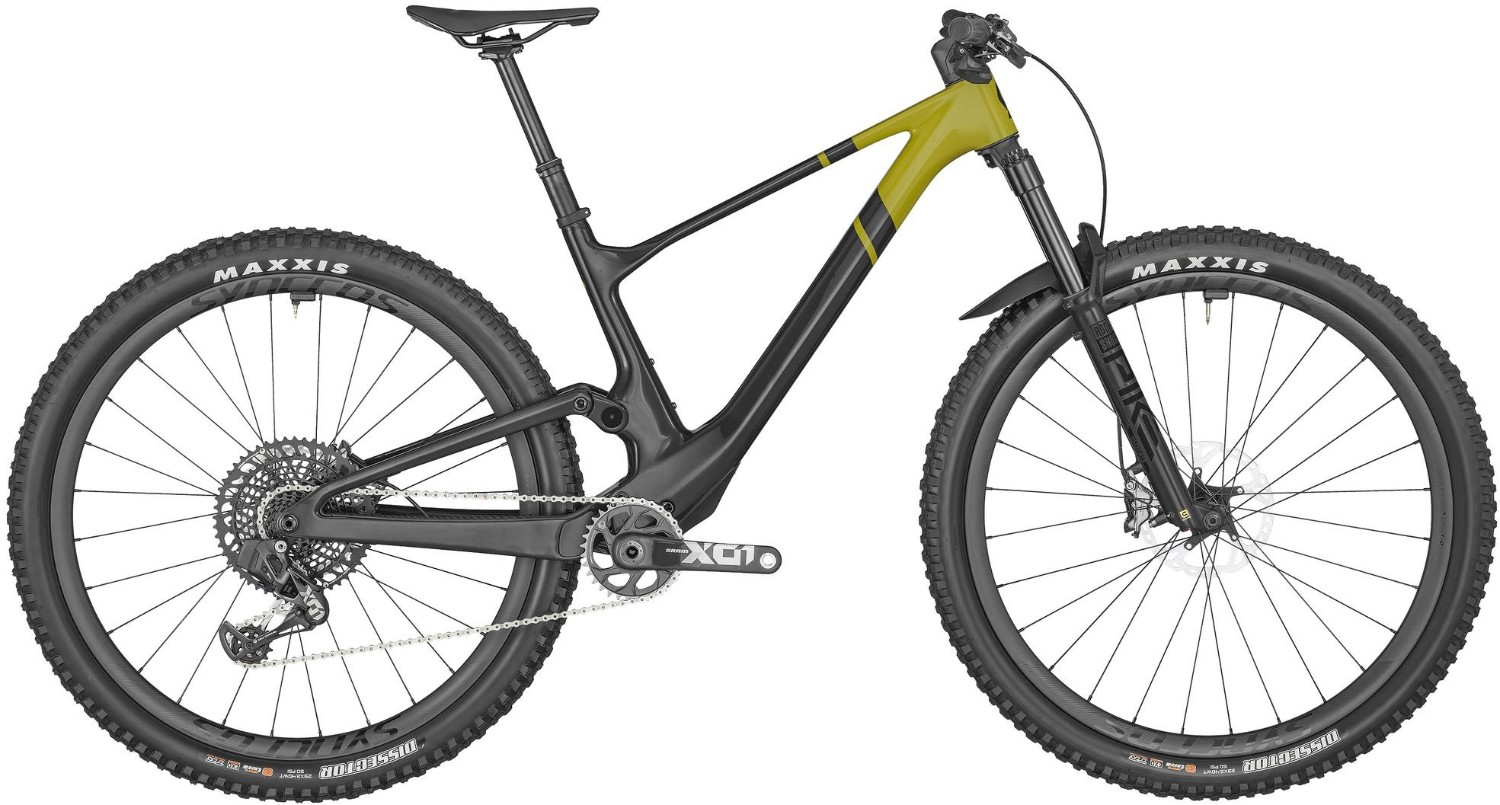

Scott Spark ST 900 Tuned Mountain Bike 2023 - Trail Full Suspension MTB

Our Spark ST line of bikes takes a classic Spark 900 vibe and adds suspension components for those aiming to spend a bit more time losing elevation. Now with a custom Float x NUDE from FOX, this short travel trail bike is as capable as ever.
Please note that bike specifications are subject to change without prior notice.
Please note that bike specifications are subject to change without prior notice.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Spark ST Carbon HMF, Integrated Suspension Technology, Flex Pivot / Adjustable head angle, Syncros Cable Integration System, BB92 / UDH Interface / 12x148mm with 55mm Chainline |
Fork | RockShox Pike Ultimate Air, Charger 3 RC2 w/Butter Cups Damper, HSC-LSC-LSR adjustable / 15x110mm Maxle Lite, 44mm offset / Tapered steerer, Lockout / Reb. Adj. / 140mm travel |
Rear Shock | FOX FLOAT X NUDE PE EVOL Piggy Back Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Climb-Traction Control-Descend, Custom large Air volume / Comp & Reb. Adj., Travel 120-80-Climb / T165X45mm |
Headset | Syncros - Acros Angle adjust & Cable Routing HS System, Stainless / +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
Bars | Syncros Fraser iC SL DC Carbon, 0° rise / back sweep 8° / mini Rise / 780mm |
Front Brake | Shimano XTR M9120 4 Piston Disc. F/R: Shimano SM-RT76 / 6 Bolt / 180 mm |
Rear Brake | Shimano XTR M9120 4 Piston Disc. F/R: Shimano SM-RT76 / 6 Bolt / 180 mm |
Brake Lever | Shimano XTR M9120 |
Rear Mech | SRAM X01 Eagle AXS / 12 Speed, Wireless Electronic Shift System |
Shifters | SRAM GX Eagle AXS Rocker Controller |
Speed | 12 |
Rims | Syncros Silverton 1.0-30 6 Bolt, F: 15x110mm, R: 12x148mm, 30mm Tubeless ready Carbon rim 28H |
Front Hub | 15x110mm |
Rear Hub | DT Swiss Ratchet Hubs / XD Driver, SRAM TyreWiz / Syncros SL Axle w/Removable Lever, with 6mm Allen, T30 and T25 Tools |
Front Tyre | Maxxis Dissector / 2.4WT" / 60TPI Foldable, Tubeless Ready / EXO 3C maxx Terra |
Rear Tyre | Maxxis Dissector / 2.4WT" / 60TPI Foldable, Tubeless Ready / EXO 3C maxx Terra |
Seat Post | Syncros Duncan Dropper Post 1.5, 31.6mm / S size 125mm / M size 140mm / L size 150mm / XL size 150mm |
Saddle | Syncros Tofino 1.5 Regular, Titanium rails |
Chainset | SRAM X01 DUB Eagle Carbon crankarm, 55mm CL / 32T |
Bottom Bracket | SRAM DUB PF 92 MTB Wide / shell 41x92mm |
Chain | SRAM CN X01 Eagle |
Cassette | SRAM X01 XG1295 / 10-52 T |
Pedals | Resin Platform |
Scott Spark Sizing
Frame Size |
Height (cm) |
Height (in) |
S |
< 165 - 172 |
< 5' 5” - 5' 8” |
M |
167 - 180 |
5' 6” - 5' 11” |
L |
178 - 188 |
5' 10” - 6' 2” |
XL |
185 - > 195 |
6' 1” - > 6' 5” |
What size frame do I need if I am between sizes? - read here
