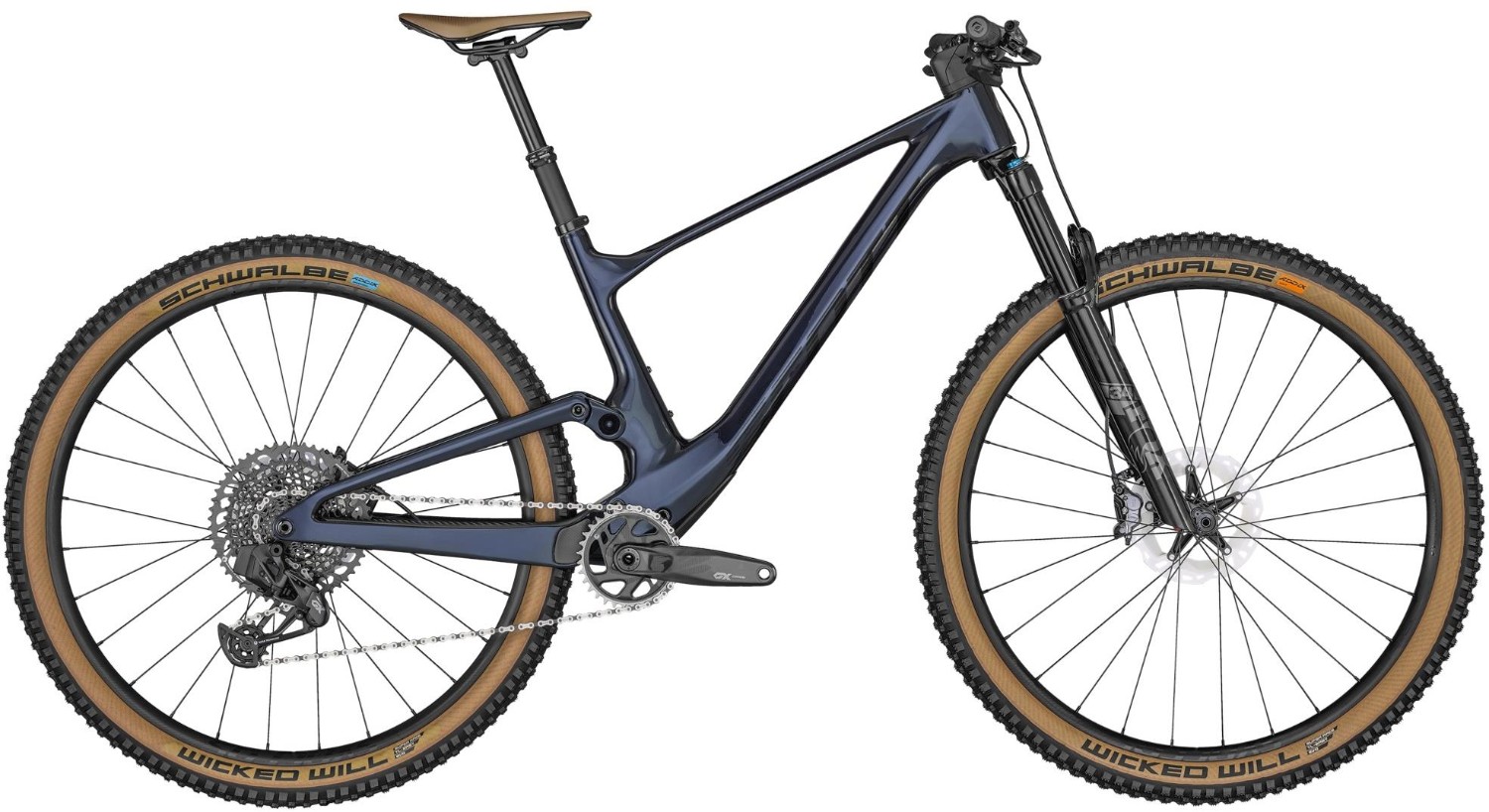

Scott Spark 900 AXS 29" Mountain Bike 2022 - Trail Full Suspension MTB
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Spark Carbon HMF#Integrated Suspension Technology#Flex Pivot / Adjustable head angle#Syncros Cable Integration System#BB92 / UDH Interface / 12x148mm with 55mm Chainline |
| Fork | FOX 34 Float Performance Elite Air FIT4#3-Modes with low Speed adj. / Kabolt 15x110mm axle#44mm offset / tapered steerer / Reb. Adj. / Lockout#130mm travel |
| Rear Shock | FOX NUDE 5T EVOL Trunnion#SCOTT custom w. travel / geo adj.#3 modes: Lockout-Traction Control-Descend#Custom large Air volume / DPS / Reb. Adj.#Travel 120-80-Lockout / T165X45mm |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System#+-0.6° head angle adjustment#ZS56/28.6 – ZS56/40 MTB |
| Bars | Syncros Fraser iC SL DC Carbon#0° rise / back sweep 8° / mini Rise / 760mm#Syncros Pro lock-on grips |
| Front Brake | Shimano XT M8120 4 Piston Disc, Shimano RT-MT800 CL / F&R 180mm |
| Rear Brake | Shimano XT M8120 4 Piston Disc, Shimano RT-MT800 CL / F&R 180mm |
| Rear Mech | SRAM GX Eagle AXS / 12 Speed#Wireless Electronic Shift System |
| Shifters | SRAM GX Eagle AXS Rocker Controller |
| Speed | 12 |
| Rims | Syncros Silverton 1.5-30 CL#F: 15x110mm, R: 12x148mm#30mm Tubeless ready rim 28H / XD Driver#Syncros Axle w/Removable Lever#with 6mm Allen, T30 and T25 Tools |
| Front Tyre | Schwalbe Wicked Will 29x2.4" EVO#Super Race / TLE / 67EPI / Addix Speed Soft |
| Rear Tyre | Schwalbe Wicked Will 29x2.4" EVO#Super Race / TLE / 67EPI / Addix Speed Grip |
| Seat Post | FOX Transfer Performance Elite Dropper Post#31.6mm / S & M size 125mm / L & XL size 150mm |
| Saddle | Syncros Tofino 1.5 Regular#Titanium rails |
| Chainset | SRAM GX Eagle DUB#55mm CL / 32T |
| Bottom Bracket | SRAM DUB PF 92 MTB Wide / shell 41x92mm |
| Chain | SRAM CN GX Eagle |
| Cassette | SRAM XG1275 / 10-52 T |
| Pedals | Resin Platform |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Scott Spark 900 AXS 29" Mountain Bike 2022 - Trail Full Suspension MTB.
This product is no longer available.
