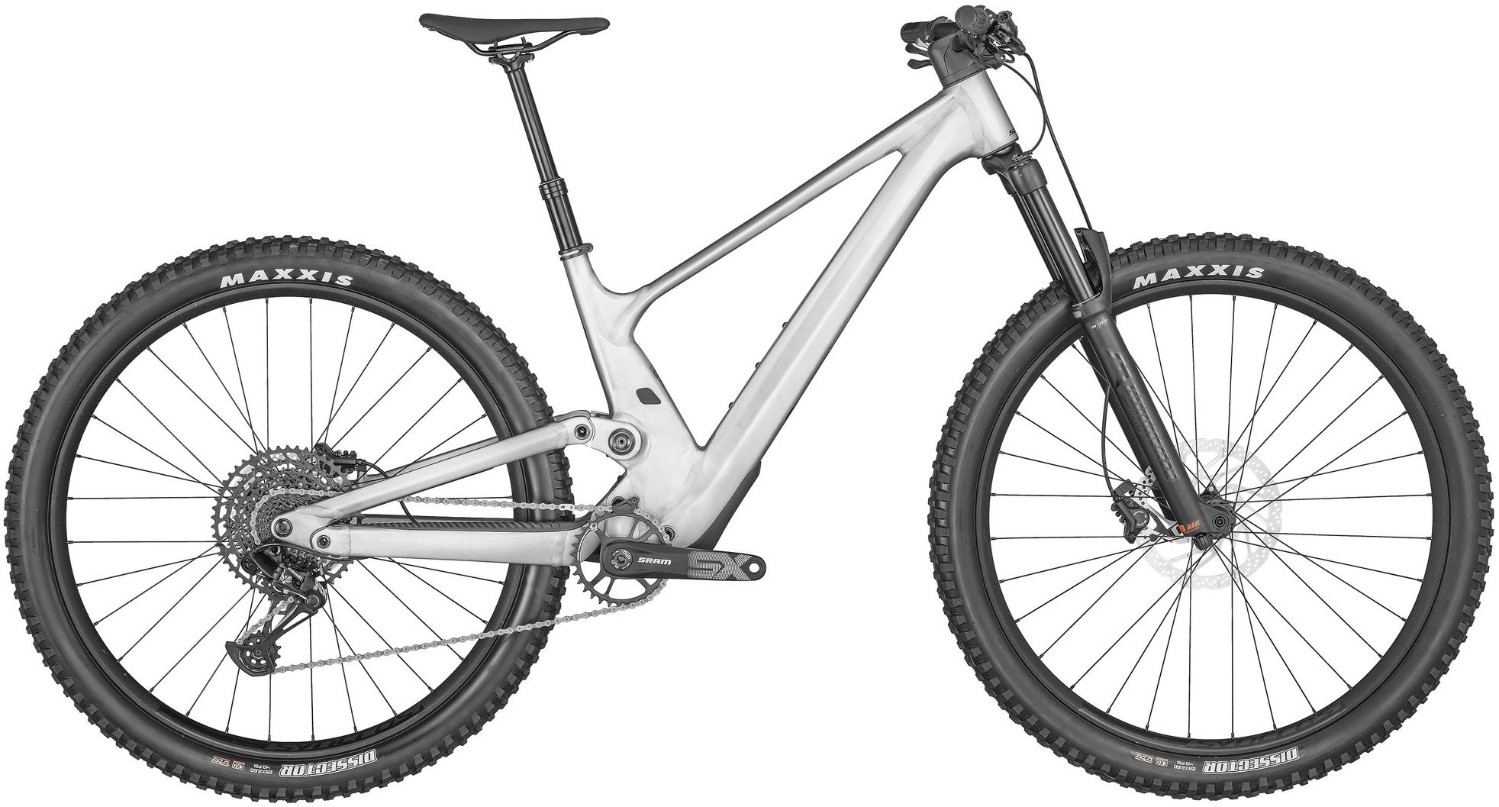

Scott Genius 940 Mountain Bike 2024 - Trail Full Suspension MTB
Designed with an alloy 6061 frame, featuring integrated suspension technology and adjustable head angle, this bike ensures a ride tailored to your preferences. The Marzocchi Z2 Air Rail fork and X-Fusion Nude 5 RLX trunnion rear shock provide a balanced 150mm travel, offering a plush experience on any trail. The Syncros cable integration system adds to its sleek design. With a SRAM NX Eagle 12-speed drivetrain, Shimano MT501 disc brakes, and Syncros X-30S wheels, the Genius 940 is your ticket to conquering every trail with confidence.
Key Features:
- Frame: Genius alloy 6061, adjustable head angle, syncros cable integration system, 12x148mm, 55mm chainline.
- Front Suspension: Marzocchi Z2 Air Rail, 150mm travel, 3 modes, 44mm offset.
- Rear Suspension: X-Fusion Nude 5 RLX Trunnion, 150mm travel, 3 modes.
- Drivetrain: SRAM NX Eagle 12-speed, SRAM SX Eagle trigger shifters.
- Brakes: Shimano MT501 disc brakes (203mm front, 180mm rear).
- Wheels: Syncros X-30S, 32h, 30mm width.
- Outstanding Feature: Syncros Cable Integration System for a clean, efficient design.
- Finance: Available with 0% APR finance.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Genius Alloy 6061, Integrated Suspension Technology, Virtual 4 Link kinematic / Adjustable head angle, Syncros Cable Integration System, BB92 / UDH Interface / 12x148mm with 55mm Chainline |
| Fork | Marzocchi Z2 Air Rail, 3-Modes / 15x110mm QR axle / tapered steerer, 44mm offset / Reb. Adj. / Lockout / 150mm travel |
| Rear Shock | X-Fusion NUDE 5 RLX Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, Reb. Adj., Travel 150-100-Lockout / T185X55mm |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| Stem | Syncros AM 2.0, Syncros Cable Integration System, 4° rise / 6061 Alloy / 31.8mm / 1 1/8" |
| Bars | Syncros Hixon 2.0 Alloy 6061 D.B., 12mm Rise / back sweep 8° / 780mm |
| Front Brake | Shimano MT501 Disc. F: Shimano SM-RT30 CL / 203 mm, R: Shimano SM-RT30 CL / 180 mm |
| Rear Brake | Shimano MT501 Disc. F: Shimano SM-RT30 CL / 203 mm, R: Shimano SM-RT30 CL / 180 mm |
| Brake Lever | Shimano MT501 |
| Rear Mech | SRAM NX Eagle 12 Speed |
| Shifters | SRAM SX Eagle Trigger |
| Speed | 12 |
| Rims | Syncros X-30S / 32H / 30mm / Sleeve Joint |
| Front Hub | Formula CL-811 / 15x110mm |
| Rear Hub | Formula CL-148S / 12x148mm |
| Spokes | Stainless Black 15G / 1.8mm |
| Front Tyre | Maxxis Dissector / 2.6" / 60TPI Foldable, Tubeless Ready / EXO |
| Rear Tyre | Maxxis Dissector / 2.6" / 60TPI Foldable, Tubeless Ready / EXO |
| Seat Post | Syncros Duncan Dropper Post, 31.6mm / S size 130mm / M size 150mm / L & XLsize 170mm |
| Saddle | Syncros Tofino 2.5 Regular |
| Chainset | SRAM SX Eagle DUB, 55mm CL / 32T |
| Bottom Bracket | SRAM DUB PF 92 MTB Wide / shell 41x92mm |
| Chain | SRAM CN SX Eagle |
| Cassette | SRAM SX-PG1210 / 11-50 T |
| Pedals | Resin Platform |
Scott Genius Size Chart
|
Size |
Height (cm) |
Height (in) |
|
S |
162 - 172 |
5’ 3” – 5’ 8” |
|
M |
168 - 180 |
5’ 6” – 5’ 11” |
|
L |
178 - 188 |
5’ 10” – 6’ 2” |
|
XL |
184 - 196 |
6’ 0” – 6’ 5” |
What size frame do I need if I am between sizes? - read here
