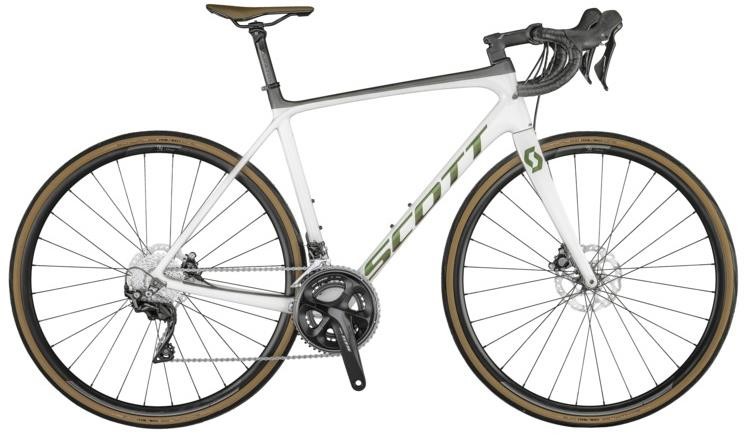

Scott Addict 20 Disc 2021 - Road Bike
The SCOTT Addict 20 Disc was designed from the ground up with those longer days in mind. With geometry that is less focused on racing and more on enduring, the Addict 20 Disc will be your go-to when you're looking to put the miles in, but at a fraction of the cost.
Key Features:
- Addict Disc HMF Carbon Frame
- Addict HMF Fork
- Shimano 105 Disc 22 Speed
- Syncros RP2.0 Disc Wheels
- Schwalbe ONE Tires
- Syncros Carbon/Alloy Parts
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Addict Disc HMF Carbon technology Endurance geometry / Replaceable Derailleur Hanger |
| Fork | Addict Disc HMF 1 1/8"-1 1/4" Carbon steerer Alloy Dropout |
| Headset | Syncros Integrated |
| Stem | Syncros RR2.0 1 1/8" / four Bolt 31.8mm |
| Bars | Syncros Creston 2.0 Compact Alloy 31.8mm |
| Front Brake | Shimano BR-R7070 Hyd.Disc Shimano SM-RT70 CL rotor 160/F and 160/R |
| Rear Brake | Shimano BR-R7070 Hyd.Disc Shimano SM-RT70 CL rotor 160/F and 160/R |
| Front Mech | Shimano 105 FD-R7000 Black |
| Rear Mech | Shimano 105 Black RD-R7000-GS 22 Speed |
| Shifters | Shimano 105 ST-R7020 Disc Dual control 22 Speed |
| Speed | 22 |
| Rims | Syncros RP2.0 Disc 28 Front / 28 Rear Syncros RWS |
| Front Tyre | Schwalbe ONE Fold 700x30C |
| Rear Tyre | Schwalbe ONE Fold 700x30C |
| Seat Post | Syncros RR1.2 27.2/350mm |
| Saddle | Syncros Tofino Regular 2.0 Channel |
| Chainset | Shimano FC-R7000 Compact Hyperdrive 50x34 T Black |
| Bottom Bracket | Shimano BB-RS500-PB |
| Chain | KMC X11 |
| Cassette | Shimano CS-R7000 11-32 |
Scott Addict 2021 Size Chart
|
Frame Size |
Height (cm) |
Height (in) |
|
XXS - 47cm |
< 162 |
< 5' 3" |
|
XS - 49cm |
154 - 167 |
5' 0" - 5' 7" |
|
S - 52cm |
163 -173 |
5' 4" - 5' 8" |
|
M - 54cm |
170 - 179 |
5' 7" - 5' 10" |
|
L - 56cm |
177 - 187 |
5' 9" - 6' 1" |
|
XL - 58cm |
185 - 197 |
6' 0" - 6' 5" |
|
XXL - 61cm |
> 193 |
> 6' 4" |
Scott Addict 2021 Geometry Chart
|
|
XXS |
XS |
S |
M |
L |
XL |
XXL |
|
Head Tube Angle |
70.5 ° |
71.0 ° |
72.0 ° |
72.5 ° |
73.0 ° |
73.3 ° |
73.3 ° |
|
Head Tube Length (mm) |
115.0 |
125.0 |
145.0 |
165.0 |
185.0 |
205.0 |
225.0 |
|
Top Tube Horizontal (mm) |
505.0 |
515.0 |
530.0 |
545.0 |
560.0 |
575.0 |
590.0 |
|
Standover Height (mm) |
725.3 |
741.1 |
767.5 |
787.5 |
807.5 |
827.1 |
851.4 |
|
BB Offset (mm) |
-67.0 |
-67.0 |
-67.0 |
-67.0 |
-67.0 |
-67.0 |
-67.0 |
|
BB Height (mm) |
280.2 |
280.2 |
280.2 |
280.2 |
280.2 |
280.2 |
280.2 |
|
Wheelbase (mm) |
973.1 |
979.4 |
981.2 |
986.8 |
991.6 |
999.0 |
1,012.7 |
|
BB Centre To Top Tube Centre (mm) |
410.0 |
430.0 |
460.0 |
480.0 |
500.0 |
520.0 |
550.0 |
|
BB Centre To Top of Seat Tube (mm) |
470.0 |
490.0 |
520.0 |
540.0 |
560.0 |
580.0 |
610.0 |
|
Seat Angle |
75.0 ° |
75.0 ° |
74.5 ° |
74.0 ° |
73.5 ° |
73.1 ° |
73.0 ° |
|
Chainstay Length (mm) |
415.0 |
415.0 |
415.0 |
415.0 |
415.0 |
415.0 |
415.0 |
|
Reach (mm) |
366.6 |
373.5 |
377.3 |
381.2 |
384.6 |
389.0 |
397.0 |
|
Stack (mm) |
516.7 |
527.9 |
550.5 |
571.3 |
592.3 |
612.5 |
613.6 |
What size frame do I need if I am between sizes? - read here
