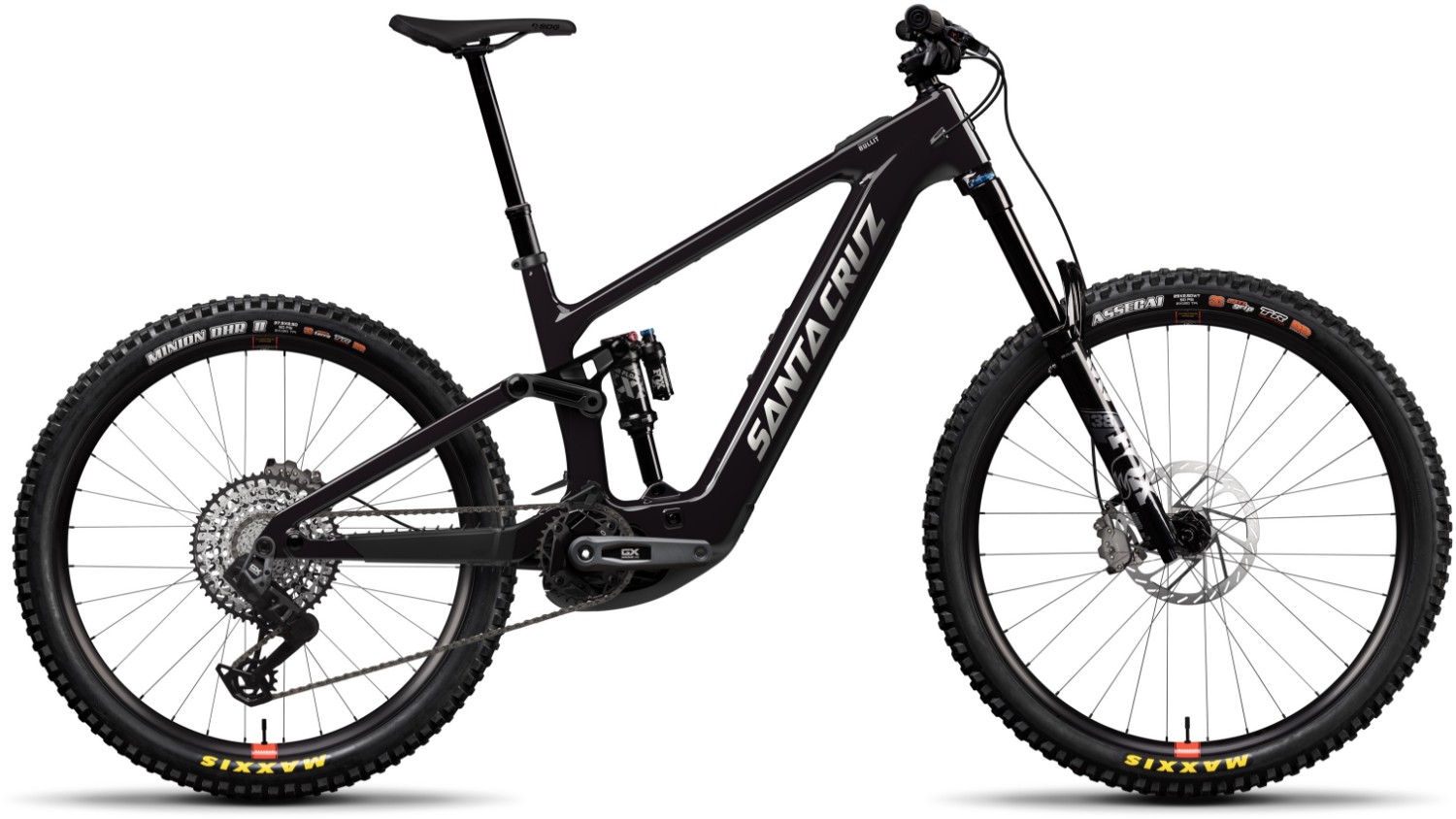

Santa Cruz Bullit Carbon C - GX AXS 2025 - Electric Mountain Bike
- Class-leading power delivery and rattle-free descending
- Wireless mode control, speed sensor, display
- 600 Wh battery with 250 Wh range extender available aftermarket
- Bombproof, lightweight carbon frame
- Quintessential SCB engineering applied to improve chassis
- 2 flip-chips for independent geometry and progression adjustment
- Exceptional ebike suspension kinematics
- Significant gains in anti-rise (braking) performance
- Packages a full power motor, suspension, and 110mm more dropper post insertion (180mm for MD and 210 for LRG
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Carbon C MX 170mm Travel, 4-Bar |
| Fork | FOX 38 Float Performance Elite, Grip X2, 170mm |
| Rear Shock | FOX Float X Performance Elite, 205x65 |
| Headset | Cane Creek 50 IS Integrated Headset |
| Stem | OneUp Stem, 42mm |
| Bars | OneUp Aluminum Bar, 800mm, 20mm Rise (S), 35mm Rise (M-XXL) |
| Front Brake | SRAM Maven Bronze |
| Rear Brake | SRAM Maven Bronze |
| Rear Mech | SRAM GX Eagle AXS T-Type, 12spd |
| Shifters | SRAM AXS Pod Bridge |
| Speed | 12 |
| Rims | Reserve 30|HD AL 6069 |
| Front Hub | E13 SL, 12x110, 6-Bolt, 32h |
| Rear Hub | E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h |
| Front Tyre | Maxxis Assegai 29"x2.5", 3C, MaxxGrip, Double Down |
| Rear Tyre | Maxxis Minion DHRII 27.5x2.5, 3C DoubleDown |
| Seat Post | OneUp V3 Dropper Post, 31.6 |
| Saddle | SDG Bel-Air V3 Max Lux-Alloy Atmos |
| Chainset | SRAM GX Eagle Cranks, 155mm |
| Chain | SRAM GX Eagle T-Type, Flattop, 12spd |
| Cassette | SRAM XS 1275 Eagle T-Type, 10-52t |
| Battery Size (WH) | Bosch PowerTube Battery 600Wh |
| Motor | Bosch Performance CX BDU38 |
| User Interface | Bosch |
Santa Cruz Bullit 2025 Size Chart
|
Size |
Height (Cm) |
Height (feet) |
|
S |
155 – 166 |
5’1” – 5”5” |
|
M |
164 – 176 |
5’4” – 5’9” |
|
L |
174 – 186 |
5’8” – 6’1” |
|
XL |
183 – 194 |
6’0” – 6’4” |
|
XXl |
192 - 201 |
6’3” – 6’7” |
What size frame do I need if I am between sizes? - read here
Santa Cruz Bullit 2025 Geometry Chart
| Size | S | M | L | XL | XXL | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| High | Low | High | Low | High | Low | High | Low | High | Low | |
| Stack | 622 | 625 | 631 | 635 | 640 | 643 | 654 | 656 | 670 | 674 |
| Reach | 435 | 432 | 460 | 456 | 480 | 477 | 500 | 497 | 525 | 522 |
| Head Tube Length | 100 | 100 | 110 | 110 | 120 | 120 | 135 | 135 | 155 | 155 |
| Head Tube Angle | 63.6° | 63.3° | 63.6° | 63.3° | 63.6° | 63.3° | 63.6° | 63.3° | 63.6° | 63.3° |
| Bottom Bracket Height | 346 | 342 | 346 | 342 | 346 | 342 | 346 | 342 | 346 | 342 |
| Bottom Bracket Drop | 27/9 | 31/13 | 27/9 | 31/13 | 27/9 | 31/13 | 27/9 | 31/13 | 27/9 | 31/13 |
| Front Centre | 780 | 780 | 809 | 809 | 834 | 834 | 860 | 860 | 894 | 894 |
| Chainstay Length | 440 | 441 | 443 | 444 | 446 | 447 | 449 | 450 | 452 | 453 |
| Wheelbase | 1220 | 1221 | 1252 | 1253 | 1280 | 1280 | 1309 | 1310 | 1346 | 1347 |
| Top Tube Length (horizontal) | 571 | 572 | 596 | 597 | 617 | 618 | 640 | 641 | 670 | 671 |
| Standover Height | 745 | 740 | 739 | 735 | 738 | 733 | 738 | 733 | 735 | 730 |
| Seat Tube Length | 380 | 380 | 400 | 400 | 420 | 420 | 460 | 460 | 500 | 500 |
| Seat Tube Angle | 78.6° | 78.3° | 78.7° | 78.4° | 78.7° | 78.4° | 78.7° | 78.4° | 78.6° | 78.3° |
| Effective Seat Tube Angle | 77.4° | 77.1° | 77.4° | 77.1° | 77.4° | 77.1° | 77.4° | 77.1° | 77.4° | 77.1° |
| ST Angle / Saddle Height | 680mm | 680mm | 730mm | 730mm | 780mm | 780mm | 830mm | 830mm | 870mm | 870mm |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
