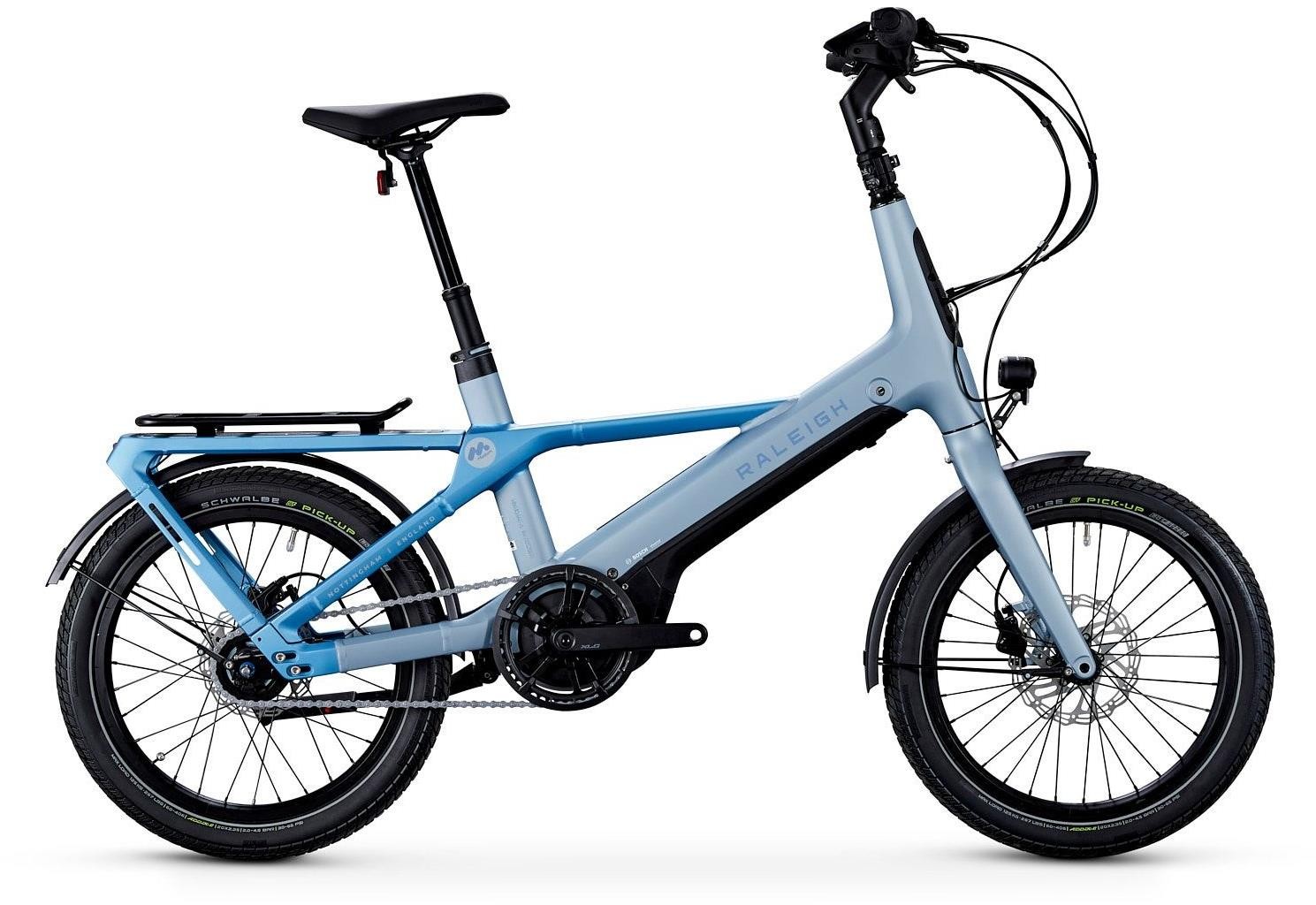

Raleigh Modum 20 2024 - Electric Hybrid Bike
Meet the new Raleigh Modum: the ultimate e-bike for urban riding. Its sleek frame and nimble 20’’ wheels are designed for city adventures, from navigating narrow streets to hopping on and off buses. But don't be fooled by its compact size; it's a powerful electric bike with the latest Bosch technology.
Key Features:
- Aluminium 6061 frame for durability and style.
- Rigid 20" fork with thru-axle for stability.
- Shimano Nexus 5-speed hub gear for seamless shifting.
- Alhonga HT 474 Hydraulic Disc Brake for reliable stopping.
- 20" Schwalbe Pick-up tyres for puncture resistance.
- Versatile design with MIK HD compatible rear carrier, lights, and dropper post.
- Available with 0% APR finance.
Drive Information:
- Bosch Performance Line BES3 motor with impressive torque.
- Bosch Powertube 500Wh battery for an extended range.
- Bosch Kiox 300 display and remote switch for smart connectivity.
The Bosch Performance Line BES3 motor and 500Wh battery provide the Modum with a 70+ mile range, ensuring you conquer even the steepest hills with ease. Choose from various support settings to tailor your ride, from eco mode to a more challenging workout.
Need to transport cargo? This versatile e-bike easily transforms into a cargo bike, ready to carry kids, pets, or supplies. When the load lightens, return it to your trusty everyday bike. With adjust and twist handlebars for slimline storage, hub gears, mudguards, cargo-rated puncture-resistant tyres, hydraulic disc brakes, and a 150mm travel dropper seatpost, the Modum has everything for your city commutes in style. With a range of up to 100 miles, it's a bike that keeps on going.
The Raleigh Modum: where urban agility meets electric power for a seamless, enjoyable commute.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium 6061 |
| Fork | Rigid 20" fork with thru axle M15xP1.5 |
| Stem | Aluminium adjust and twist stem 90mm |
| Bars | Aluminium straight handlebar 680mm |
| Front Brake | Alhonga HT 474 Hydraulic Disc Brake, 180mm |
| Rear Brake | Alhonga HT 474 Hydraulic Disc Brake, 180mm |
| Brake Lever | Hydraulic Disc Brake |
| Shifters | Shimano Nexus 5 speed revoshifter |
| Speed | 5 |
| Rims | 20" double side wall rim |
| Front Hub | 15mm axle aluminium hub 32H, centre lock disc |
| Rear Hub | Shimano Nexus 5 hub gear, 32H, centre lock disc |
| Front Tyre | 20" x 60mm Schwalbe Pick-up |
| Rear Tyre | 20" x 60mm Schwalbe Pick-up |
| Seat Post | Dropper seatpost 34.9mm, 150mm travel |
| Chainset | 42T chainring with 170mm crank arm |
| Chain | KMC Z1 EPT single speed chain |
| Cassette | Shimano Nexus 24T sprocket |
| Pedals | Aluminium flat pedal |
| Weight | 25.6kg |
| Battery Size (WH) | Bosch Powertube 500Wh |
| Motor | Bosch Performance Line BES3 |
| User Interface | Bosch Kiox 300 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
