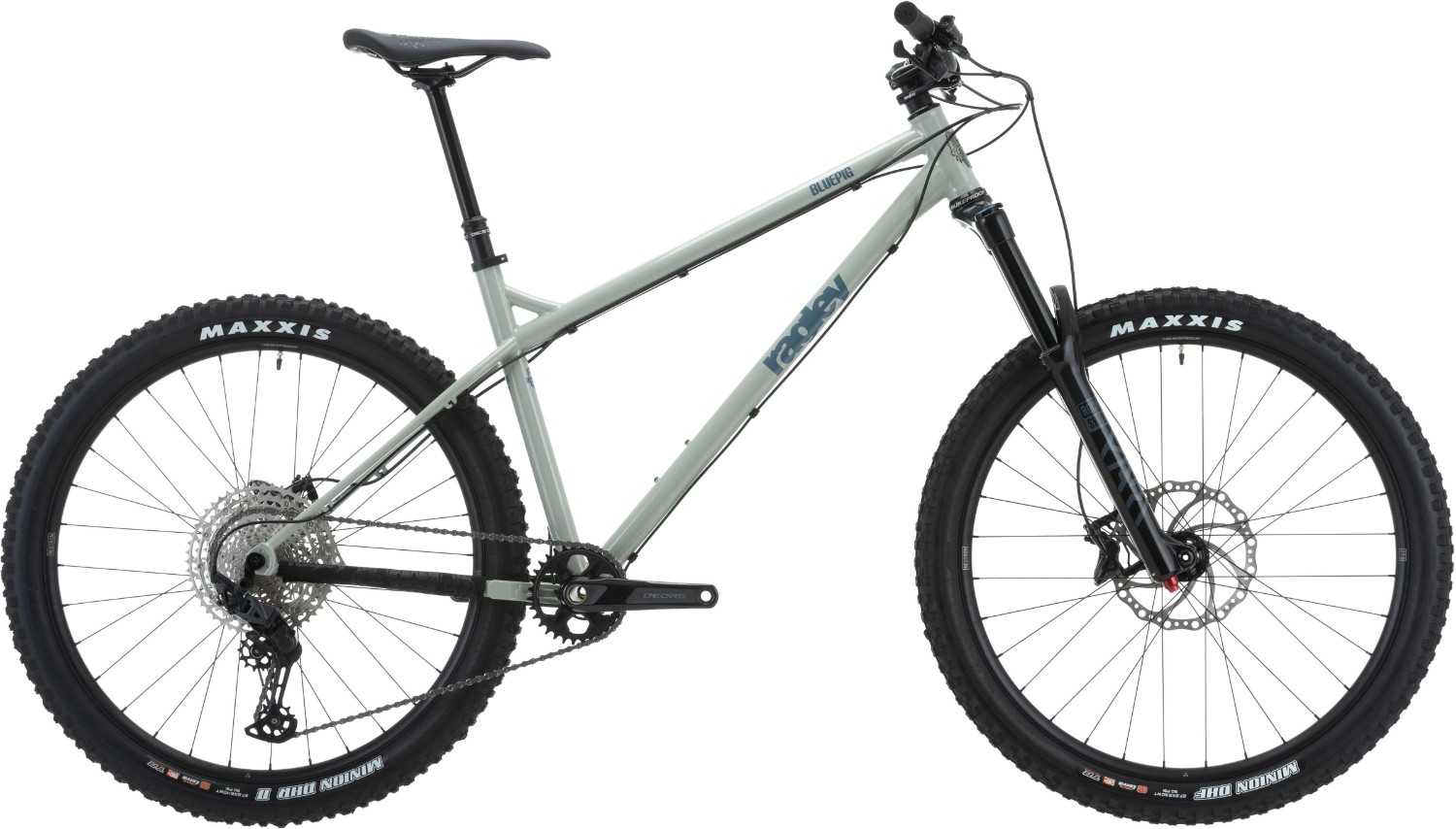

Ragley Blue Pig Mountain Bike 2022 - Hardtail MTB

If you have heard of Ragley, you already know the Blue Pig mountain bike name. From the early days of the ‘hardcore hardtail’ it has pushed the geometry envelope and been loved by anyone who rides for all-out grin-inducing fun.
Key features:
- Ragley Cro-Mo Steel frame
- Rockshox YARI RC forks with 150mm of bump soaking travel
- Shimano 1x12 gear have all the range you need to climb anything
- Sram DB8 brakes offer stopping power no matter the weather
- Sizes: S, M, L, XL
- Colours: Blueish Grey
- The Ragley Blue Pig is available with 0% APR Finance.
The 2022 Blue Pig keeps the flame burning strong: Custom triple butted 4130 Chromoly tubing, ISCG 05 tabs, a 44mm head tube, internal dropper routing and a 148x12mm boost rear end. But it’s the geometry that defines it: the 63.75 degree head angle making its rowdy intentions abundantly clear.
Comfortable enough to ride all-day, tough enough for the bike park and agile enough to drift through the local woodland loam. The Blue Pig is built to take abuse and inspire confidence when things get gnarly, but when it’s not been pillaging the trough; it’s light to ride and quite happy putting in the miles to get to the good stuff.
A stacked spec package with a Shimano 12-speed SLX/Deore groupset and SRAM DB8 brakes. The 150mm RockShox Yari always proves faultless. Nukeproof wheels are shod with range topping Maxxis Minion rubber. Saddle height is controlled with Brand-X’s award winning Ascend and it’s all topped off with our own branded finishing kit.
If you don’t think a hardtail is capable, you’ve been riding the wrong bike…
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Ragle Blue Pig 27.5" 4130 Cro-mo |
Fork | Rockshox YARI RC 150mm, 27.5", 15x110mm Boost, Stealth Maxle, 46mm Offset, 1.5" Tapered steerer |
Headset | Nukeproof ZS44/28.6 | EX44/40 with Ragley top cap |
Stem | Ragley Stubbing V2 50mm BLACK, 31.8mm clamp, Black |
Bars | Ragley Alloy Handlebar, Black, 25mm Rise, 31.8mm Clamp (Width - S780mm, M780mm, L800mm, XL800mm) |
Front Brake | Sram DB8 & 200mm Centerline rotor |
Rear Brake | Sram DB8 & 180mm Centerline rotor |
Brake Lever | SRAM |
Rear Mech | Shimano M7100 SLX SGS 12-SPEED, Shadow Plus |
Shifters | Shimano M7100, SLX 12-speed, Direct attachment to brake lever using iSpec EV |
Speed | 12 |
Front Hub | Nukeproof Neutron 27.5" 32h 15mm x 110mm Boost |
Rear Hub | Nukeproof Neutron 27.5" 32h 148mm x 12mm Boost Microspline, 36 points of engagement |
Front Tyre | Maxxis 27.5X2.50 WT MINION DHF 3C MaxxTerra/EXO+/TR 120tpi |
Rear Tyre | Maxxis 27.5X2.40 WT MINION DHR II 3C MaxxTerra/EXO+/TR 120tpi |
Seat Post | Brand-X Ascend Internal Route Post - 31.6mm |
Saddle | Ragley Tracker Saddle |
Chainset | Raceface Ride 170mm |
Bottom Bracket | Shimano Deore Hollowtech II - 73mm BSA |
Chain | Shimano Deore CN-M6100 - 12 speed |
Cassette | Shimano Deore M6100-12, 10-12-14-16-18-21-24-28-33-39-45-51T |
Pedals | Resin Platform Pedals |
Ragley Blue Pig sizing and geometry
Recommended rider height |
160 – 170cm |
170 – 180cm |
180 – 190cm |
190 – 200cm |
Recommended inside leg |
71-76cm |
76-81cm |
81-86cm |
86-91cm |
All dimensions taken with a 150mm unsagged 27.5" fork fitted
Blue Pig – 27.5” |
Small |
Medium |
Large |
Extra Large |
Seat tube length |
380mm |
420mm |
460mm |
500mm |
Top tube length effective |
596mm |
618.6mm |
641.2mm |
665mm |
Reach |
420mm |
440mm |
460mm |
480mm |
Stack |
613.9mm |
622.8mm |
631.8mm |
640.8mm |
Chainstay length |
425mm |
425mm |
425mm |
425mm |
Head tube length |
100mm |
110mm |
120mm |
130mm |
Head tube angle |
63.75° |
63.75° |
63.75° |
63.75° |
Seat tube angle |
74° |
74° |
74° |
74° |
BB drop |
45mm |
45mm |
45mm |
45mm |
Wheelbase |
1170mm |
1194.4mm |
1218.8mm |
1243.2mm |
