(no reviews)Product ID: 275398

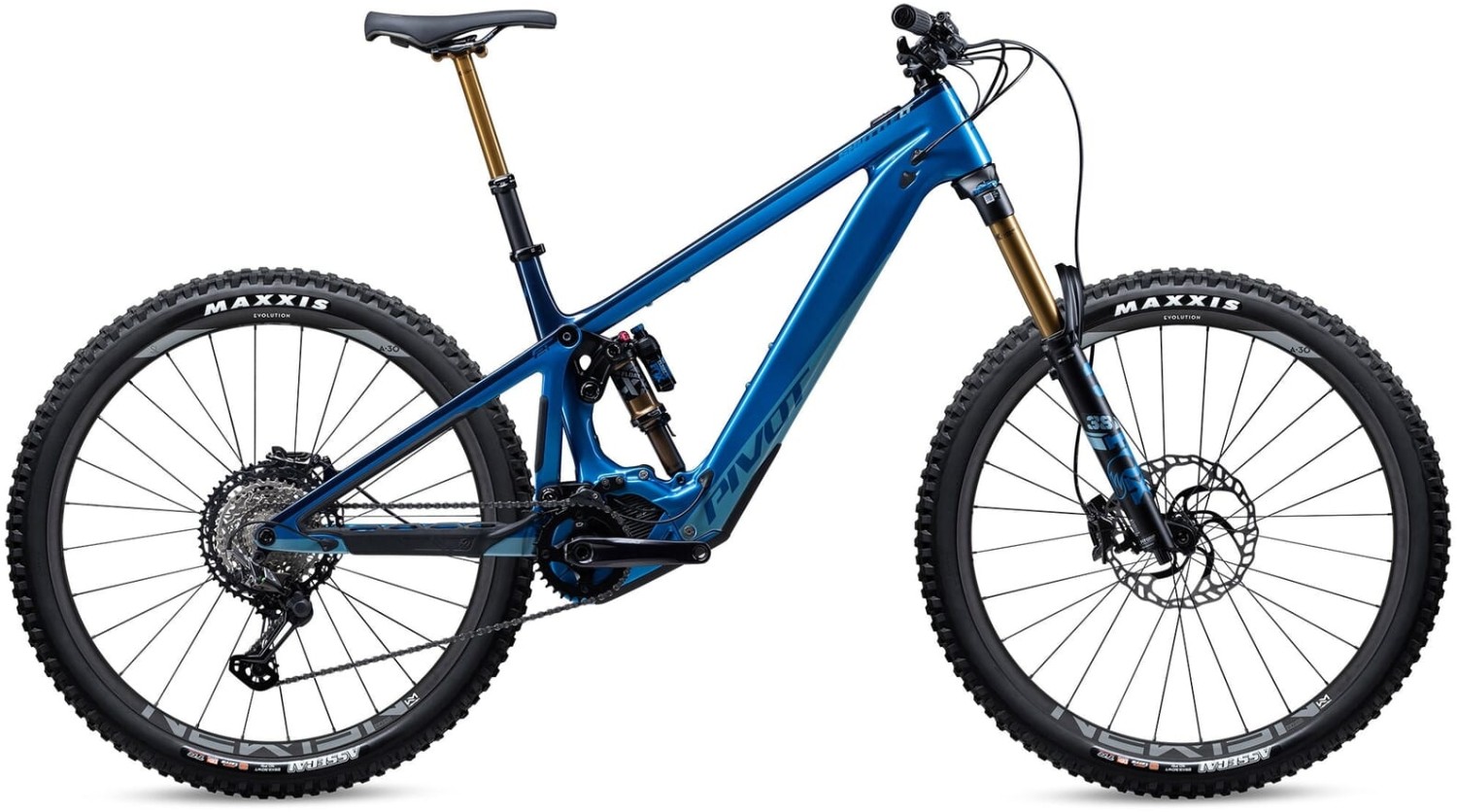

Pivot Shuttle LT 29 Team XTR 2025 - Electric Mountain Bike
A Shimano EP8 drive unit, fed by a powerful 756Wh battery, offers three power-assist modes to give you a boost over the uphill stretches, so you can save all your energy for practicing the downhill portion again and again to refine your performance.
The drive unit is positioned between the cranks, with the battery carefully integrated into the downtube, so that the centre of gravity is lowered to give you better handling and an outstanding ride feel, maximising your confidence and helping you to perform at your best. It offers 85Nm of torque and 500W of maximum power, with three ride levels to speed your ascent, while dw-link™ suspension helps to counteract the effects of even the roughest surface.
The massive 160 mm of rear travel, with dual piston damper and pedal-friendly shock absorption, is paired with 170mm of front travel, courtesy of a specialist, corrosion resistant, Kashima-coated Fox Factory E-MTB 38 GRIP2 Fork. The latter delivers the stiffness, strength, support and tunability all enduro riders look for.
The high end, incredibly tough but smooth riding aluminium 29" Newman Evolution A30 wheelset, with Ratchet LN Technology and wide, high grip Maxxis Assegai tyres, will help you to corner efficiently, hold the trail and brake with ease. The strength of these superior, load-bearing wheels is reinforced by Super Boost Plus spacing, which offers 30% greater stiffness than Boost spacing, and will ensure they'll be able to stand up to any shocks and rattles along your route.
Meanwhile, the quality Shimano XTR M9100 shifter will work seamlessly with the quick-shifting Shimano XT M8100 cassette and the secure, precise acting rear derailleur to offer chain stability and easy, resistance free shifting. You'll therefore be able to climb comfortably and pedal with minimum effort as the trail surface and angle changes.
The light yet hardy, corrosion resistant Fox Transfer Factory Series seatpost will allow you to make tool-free adjustments to your seat height and stability on the fly, not to mention easily service it, while the Phoenix Pro E-Bike saddle is sturdy enough to neutralise chatter while you're running at speed over uneven ground. Then, when it's time to slow up, you can count on the rigid, highly sensitive, mono-body Shimano XTR M9120 4-piston disc brakes to act fast and keep you in control.
Finally, the battery can be charged in situ, without any need to remove it, and should take under three and a half hours to charge. How far that charge will take you will depend on the level of assistance you use, your own weight and the layout of the terrain you decide to tackle. Expect there to be charge remaining after a three to four hour ride, though.
Its aggressive geometry, sturdy yet light build and the extra 'pop' offered by the drive unit ensures that the Shuttle LT Team XTR will be easy to handle and great fun to ride, whether you're heading uphill or downhill. Offering an advantage on the most technical terrain, and with flip chip technology to ensure a perfect fit for all cyclists, the Shuttle LT Team XTR will delight enduro racers who want to save their energy to do 'one last run' that will give them an edge come competition day.
- A poppy, enduro specific E-Bike inspired by the EWS-proven Firebird
- Fun to ride with the drive unit turned off, but pedal assist will let you do 'one last ride'
- Built around Pivot Cycles' expertly moulded carbon fibre chassis
- With Newman Evolution A30 wheelset, 30mm – 29"
- Maxxis Assegai 29" x 2.5" tyres
- dw-link™ suspension system to maximise pedalling efficiency
- Fox Factory Float X shock gives an impressive 160mm rear travel
- Fox Factory E-MTB 38 GRIP fork, 44mm offset, gives 170mm of travel
- Shimano EP8 drive unit with a 756Wh battery
- Shimano XTR M9100 12-Speed Rear Derailleur
- Shimano XT M8100 10-51t cassette
- Shimano XTR M9100 12-Speed shifter
- Shimano XTR M9120 4-piston calliper
- Shimano XT M8150 crankset
- Phoenix Team Low Rise Carbon handlebar maximises control
- Pivot Cycles' own Phoenix Team Enduro/Trail stem
- Fox Transfer Factory Series seatpost
- Phoenix Pro E-Bike saddle
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Shuttle LT |
| Fork | Fox Performance 38 29", 44mm offset, GRIP - 170mm |
| Rear Shock | FOX PERFORMANCE FLOAT X |
| Headset | Pivot Precision Sealed Cartridge |
| Stem | Phoenix Team Enduro/Trail - 45mm |
| Bars | Phoenix Race Low Rise Carbon - 780mm (SM-MD), 800mm (LG-XL) |
| Front Brake | XTR M9120 4-piston calliper |
| Rear Brake | XTR M9120 4-piston calliper |
| Brake Lever | XTR M9120 |
| Rear Mech | XTR M9100 12-Speed Rear Derailleur |
| Shifters | XTR M9100 12-Speed shifter |
| Speed | 12 |
| Rims | Newman Evolution A30 wheelset, 30mm – 29" |
| Front Tyre | Maxxis Assegai 29" x 2.5" |
| Rear Tyre | Maxxis Assegai 29" x 2.5" |
| Seat Post | Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL) |
| Saddle | Phoenix WTB Volt Race (Medium Width) |
| Chainset | XT M8150 crankset |
| Cassette | XT M8100 10-51t cassette |
| Pedals | Resin Platform |
| Battery Size (WH) | 750Wh |
| Motor | Shimano EP8 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
