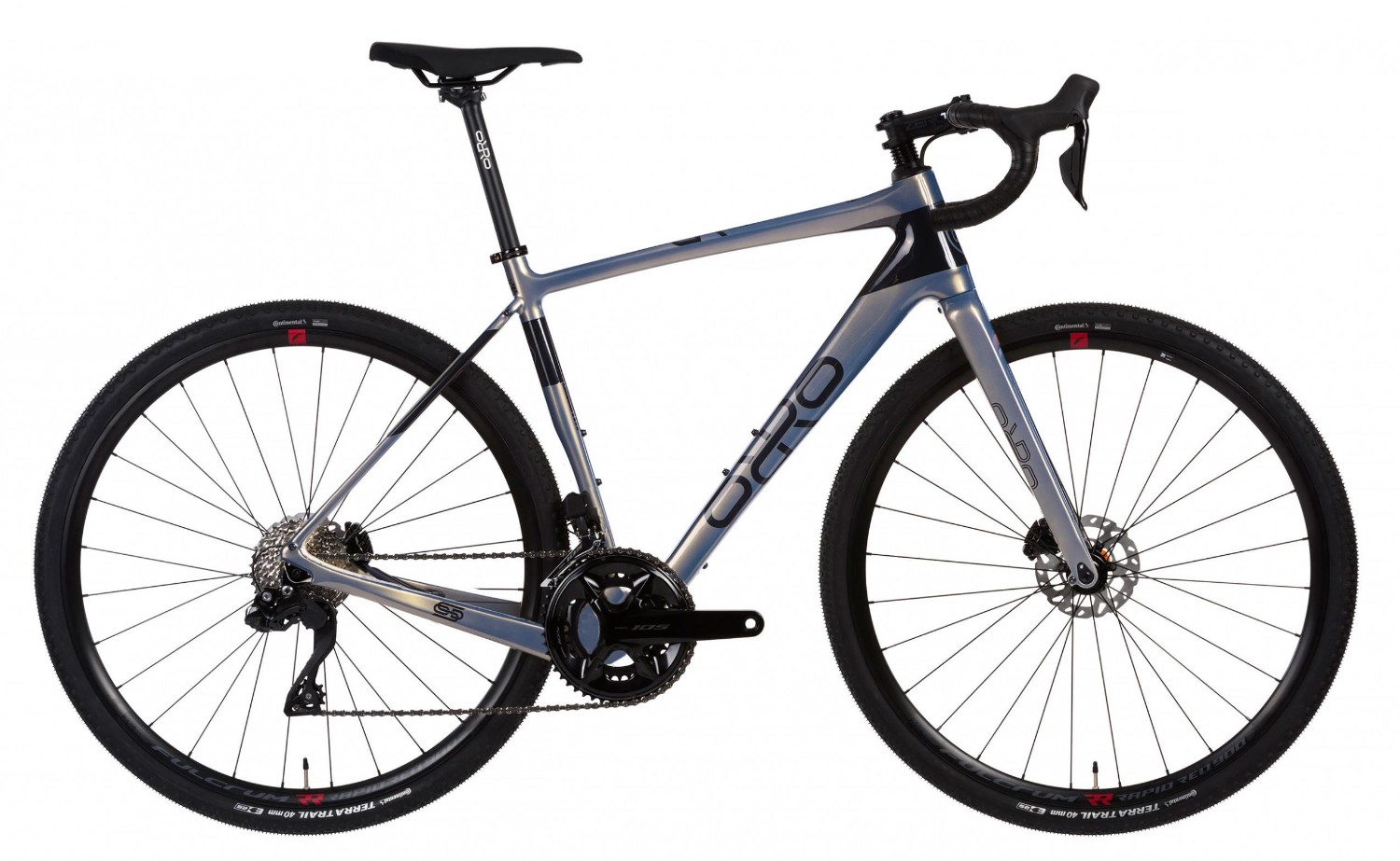

Orro Terra C 105 Di2 RR9 2023 - Gravel Bike
The Orro Terra C is characterised by its light responsive ride quality, built with the specifications necessary to provide capable control across varied terrain. An adaptive bike crafted to ensure that your next adventure, new route, or old commute is a total blast.
Key Features :
- Orro Terra C frame inspires confident handling
- Orro Terra C fork allows for swift steering on the road & off-road
- 40mm Continental Terra Trail Tyres ensure confident grip
- Shimano 105 Di2 12 Speed Groupset offers supreme shifting
- Colours: Dark Radiant, SD Chalk
- Sizes: Extra Small (46cm), Small (48cm), Medium (51cm), Large (54cm), Extra Large (58cm)
- The Orro Terra C 105 Di2 RR9 is available with 0% APR finance
Shimano 105 Di2 Groupset Review
The frame geometry is poised to descend and corner with ease inspiring confident off-road handling. Take it back to the tarmac and the excellent power transfer provided by the carbon layup is immediately apparent. Innegra fibres are woven into the carbon at strategic locations to protect the frame from impact damage; this ensures the ‘light and fast’ design ethos is met with the durability riders expect.
Terra C now has a semi-integrated front end for an ultra-clean aesthetic. The cables enter the frame via a cable box on the headset and run internally through the headtube, protecting them from the elements completely. Apart from looking seriously slick this also means the frame suffers no cable rub abrasion to the headtube when the handlebars are turned, and no interference with handlebar bags. This new design can also be made fully integrated, so you see no cables at all, with a compatible bar & stem.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orro Terra C |
| Fork | Orro Terra C |
| Stem | Deda Zero 1 |
| Bars | Deda Zero 1 |
| Front Brake | Shimano 105 7170 Hydraulic |
| Rear Brake | Shimano 105 7170 Hydraulic |
| Brake Lever | Shimano 105 7170 Hydraulic |
| Front Mech | Shimano 105 7150 |
| Rear Mech | Shimano 105 7150 12 Speed |
| Shifters | Shimano 105 7170 Hydraulic |
| Speed | 24 |
| Rims | Fulcrum Rapid Red 900 DB |
| Front Hub | Fulcrum Rapid Red 900 DB |
| Rear Hub | Fulcrum Rapid Red 900 DB |
| Front Tyre | Continental Terra Trail 40c |
| Rear Tyre | Continental Terra Trail 40c |
| Seat Post | Orro Alloy Setback |
| Saddle | Orro Bostal Saddle |
| Chainset | Shimano 105 7170 50-34 |
| Chain | Shimano M6100 12 Speed |
| Cassette | Shimano 105 R7100 11-34 |
| Pedals | Resin Platform |
Orro Terra 2023 Size Chart
| Size | Height (cm) | Height (Inch) |
| S | 163 - 170 | 5'4 - 5'7 |
| M | 170 - 178 | 5'7 - 5'10 |
| L | 178 - 183 | 5'10 - 6'0 |
| XL | 183 - 191 | 6'0 - 6'3 |
Orro Terra 2023 Geometry
|
XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Top tube | 508 | 529 | 553 | 581 | 604 |
| Head tube | 120 | 140 | 165 | 192 | 225 |
| Head tube angle | 71 | 71 | 71 | 71 | 71 |
| Wheelbase | 997 | 1013 | 1031 | 1052 | 1076 |
| Seat tube angle | 75.6 | 74.9 | 74.2 | 73.3 | 72.6 |
| Chainstay | 420 | 420 | 420 | 422.5 | 425 |
| Seat tube | 460 | 480 | 510 | 545 | 580 |
| Stack | 544 | 563 | 587 | 612 | 644 |
| Reach | 368 | 377 | 387 | 397 | 407 |
