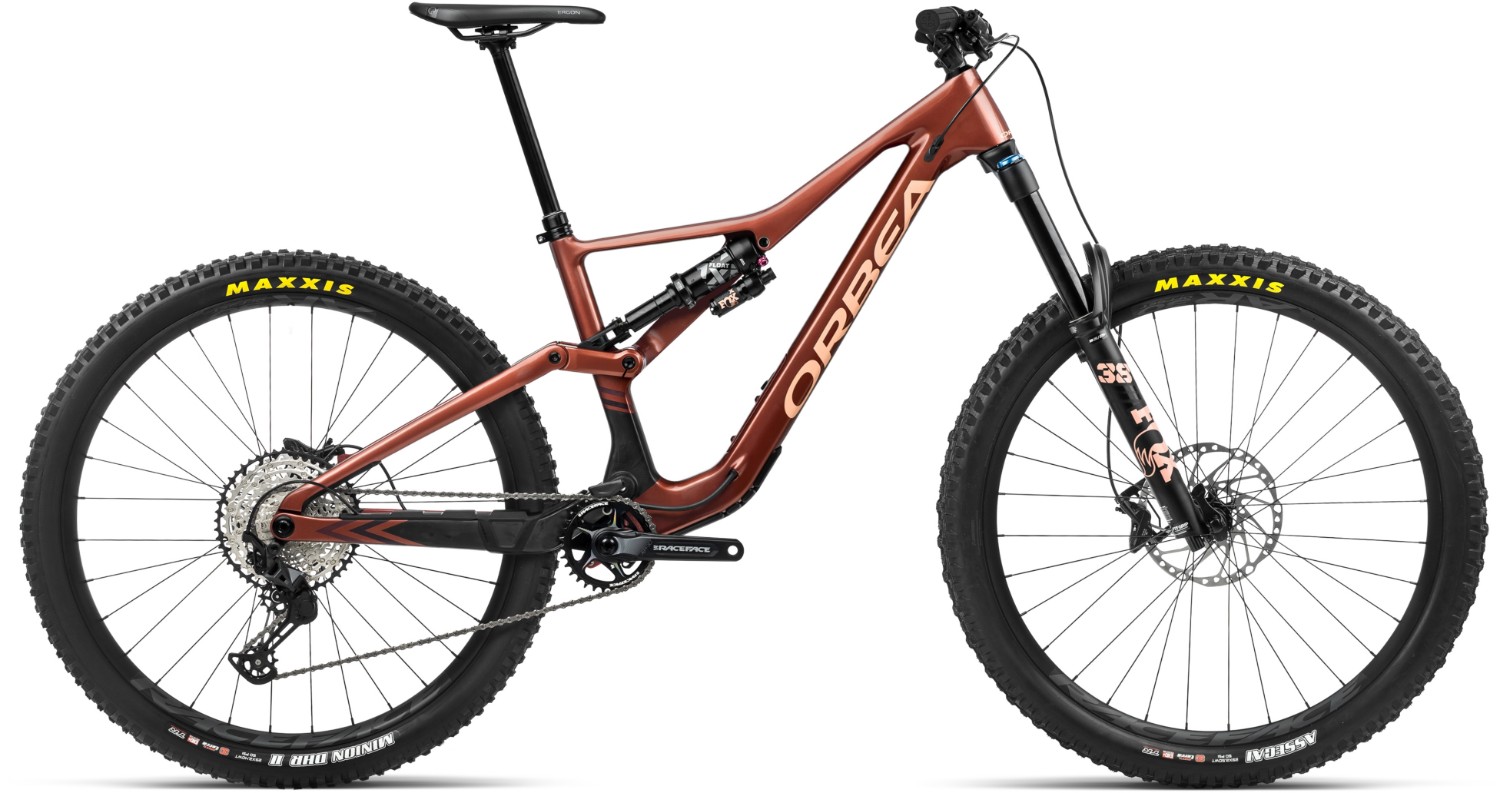

Orbea Rallon M20 Mountain Bike 2024 - Trail Full Suspension MTB
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Orbea Monocoque Race Carbon. Advanced Dynamics 167mm suspension technology. 29" wheels.Concentric Boost 12x148 rear axle. Pure Enduro geometry. Internal cable routing. ISCG05 |
Fork | Fox 38 Float Performance 170 Grip 3-Position QR15x110 |
Headset | Acros Alloy 1-1/8 - 1-1/2" Integrated |
Front Brake | Shimano M6120 Hydraulic Disc |
Rear Brake | Shimano M6120 Hydraulic Disc |
Rear Mech | Shimano SLX M7100 SGS Shadow Plus |
Shifters | Shimano SLX M7100 I-Spec EV |
Speed | 12 |
Rims | Race Face AR 30c Tubeless Ready |
Front Tyre | Maxxis Assegai 2.50" WT FB 120 TPI 3C Maxx Terra EXO+ TR |
Rear Tyre | Maxxis Assegai 2.50" WT FB 120 TPI 3C Maxx Terra EXO+ TR |
Seat Post | OC Mountain Control MC21, 31.6mm, Dropper |
Saddle | ERGON SM Enduro |
Chain | Shimano M6100 |
Cassette | Shimano CS-M7100 10-51t 12-Speed |
Rallon Sizing
See the table below to find the right size Orbea Rallon.
Size |
S/M |
LG |
XL |
Height (Cm) |
160-175 |
170-185 |
180-198 |
Height (Inches) |
63.0” – 68”9 |
66.9” – 72.8” |
70.9” – 78.0” |
Read our bike size guide for more information on sizing.
Rallon Geometry
|
SM |
LG |
XL |
Seat Tube |
406 |
444 |
483 |
Top Tube |
583 |
611 |
644 |
Head Tube |
100 |
110 |
125 |
Chain Stay |
- |
435 |
- |
BB Height |
- |
343/336 |
- |
BB Drop |
- |
28/35 |
- |
Wheelbase |
1187 |
1217 |
1253 |
Head Angle |
- |
65.5/65 |
- |
Seat Angle |
- |
76 |
- |
Stand Over |
737 |
767 |
781 |
Reach |
430 |
455 |
485 |
Stack |
615 |
624 |
637 |
Fork Length |
- |
567.1 |
- |
Rake |
- |
44 |
- |
Crank |
170 |
170 |
170 |
Stem |
32 |
32 |
32 |
Handlebar |
800 |
800 |
800 |
Read our Mountain Bike Geometry Explained guide for more information on MTB geometry.
