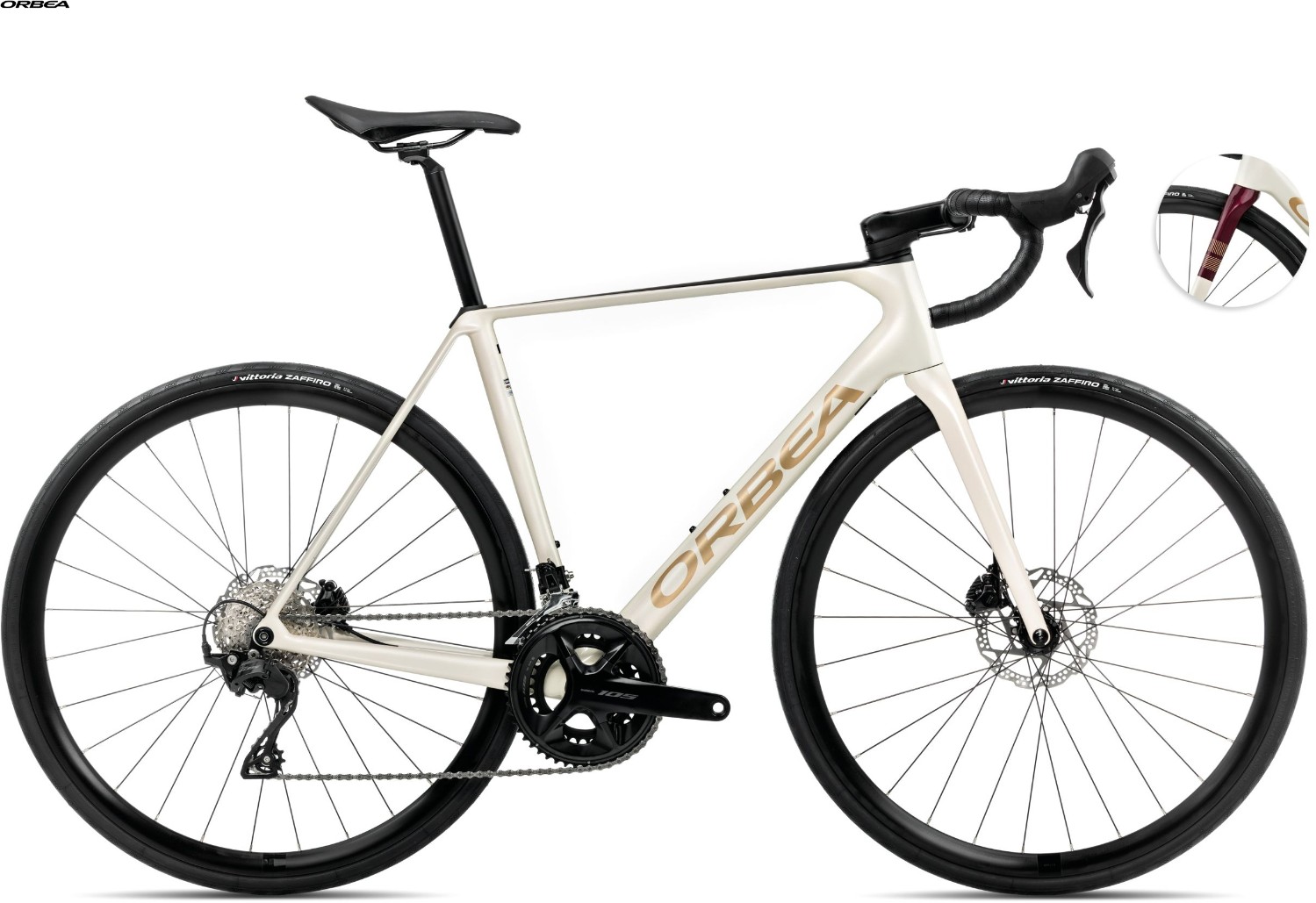

Orbea Orca M30 2025 - Road Bike
The Orbea Orca M30 is designed for performance with a focus on lightness and efficient power transfer. Its monocoque carbon frame (Orbea Orca OMR 2024) is built to offer the perfect balance between stiffness and comfort, ensuring responsiveness in every effort. The internal cable routing and compatibility with a powermeter make it a great option for performance-focused riders. The frame’s geometry is optimised for a comfortable yet aggressive riding position, perfect for both training and racing.
Key Features:
- Monocoque carbon frame with internal cable routing and BB386 bottom bracket
- Full carbon fork for lightweight stiffness and improved handling
- Shimano 105 R7100 24-speed drivetrain for smooth and reliable shifting
- Shimano R7170 hydraulic disc brakes for superior stopping power
- Orbea alloy rims with Vittoria Zafiro V 700x28c tyres for durability and speed
- Fizik Aliante R5 saddle for comfort on long rides
- Powermeter compatibility for tracking performance
- Available with 0% APR finance for easy purchasing
Up front, the full carbon Orbea Orca OMR fork is designed to complement the frame's performance, providing stiffness and handling precision while also absorbing road vibrations for a smoother ride. Shimano’s 105 R7100 24-speed groupset ensures crisp, precise shifting, whether you're tackling a steep climb or flying down a descent. The Shimano R7170 hydraulic disc brakes give you outstanding stopping power, ensuring control in all weather conditions.
The bike’s 700c alloy rims, paired with the reliable Vittoria Zafiro V tyres, provide excellent grip and durability, making it well-suited for a variety of road surfaces. The Fizik Aliante R5 saddle is designed to keep you comfortable on long rides, while the carbon seat post adds to the bike's overall lightweight design.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Orca carbon OMR 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing. |
| Fork | Orbea Orca OMR ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1. |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Stem | OC Road Performance RP22, -5º |
| Bars | OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125 |
| Front Brake | Shimano R7170 Hydraulic Disc |
| Rear Brake | Shimano R7170 Hydraulic Disc |
| Front Mech | Shimano 105 R7100 |
| Rear Mech | Shimano 105 R7100 |
| Shifters | Shimano R7120 |
| Speed | 24 |
| Rims | Alloy, Tubeless, 700c, 19c, 28H |
| Front Hub | Orbea Thru Axle 12x100mm M12x2 P1 Hollow |
| Rear Hub | Orbea Thru Axle 12x142mm M12x2 P1 Hollow |
| Front Tyre | Vittoria Zafiro V Rigid bead 700x28c |
| Rear Tyre | Vittoria Zafiro V Rigid bead 700x28c |
| Seat Post | SP 0.2 Carbon, 27.2mm, Setback 20 |
| Saddle | Fizik Aliante R5 |
| Chainset | Shimano 105 R7100 34x50t |
| Chain | Shimano M6100 |
| Cassette | Shimano 105 R7100 11-34t 12-Speed |
| Pedals | Resin Platform |
Orbea Orca 2025 Size Chart
| Size | Min Height cm | Max Height cm | Min height feet | Max height feet |
| 47cm | 155 | 160 | 5'1" | 5'3" |
| 49cm | 160 | 166 | 5'3" | 5'5" |
| 51cm | 167 | 172 | 5'6" | 5'8" |
| 53cm | 173 | 179 | 5'8" | 5'11" |
| 55cm | 180 | 185 | 5'11" | 6'1" |
| 57cm | 186 | 191 | 6'1" | 6'3" |
| 60cm | 192 | 207 | 6'3" | 6'9" |
Orbea Orca 2025 Geometry Chart
| Size | 47 | 49 | 51 | 53 | 55 | 57 | 60 |
|---|---|---|---|---|---|---|---|
| Stack | 506 | 515 | 533 | 552 | 572 | 590 | 616 |
| Reach | 370 | 375 | 380 | 385 | 391 | 398 | 404 |
| Head Tube Length | 110.5 | 118.2 | 134.6 | 152.9 | 173.1 | 191.2 | 218.3 |
| Head Tube Angle | 71° | 71.5° | 72.2° | 72.8° | 73° | 73.2° | 73.2° |
| Bottom Bracket Height | 268.5 | 268.5 | 268.5 | 270.5 | 270.5 | 270.5 | 270.5 |
| Bottom Bracket Drop | 72 | 72 | 72 | 70 | 70 | 70 | 70 |
| Trail | 66.0 | 62.8 | 58.4 | 59.9 | 58.7 | 57.4 | 57.4 |
| Fork Length | 365 | 365 | 365 | 365 | 365 | 365 | 365 |
| Fork Rake/Offset | 48 | 48 | 48 | 43 | 43 | 43 | 43 |
| Chainstay Length | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| Wheelbase | 971.8 | 975.4 | 980 | 981.2 | 991.4 | 1001.9 | 1015.6 |
| Top Tube Length (horizontal) | 510.3 | 522.7 | 535.9 | 548.5 | 560.4 | 576.1 | 590 |
| Standover Height | 736.5 | 748.5 | 767.5 | 788.5 | 808.5 | 826.5 | 852.5 |
| Seat Tube Length | 440 | 460 | 480 | 500 | 520 | 540 | 570 |
| Seat Tube Angle | 74.5° | 74° | 73.7° | 73.5° | 73.5° | 73.2° | 73.2° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
