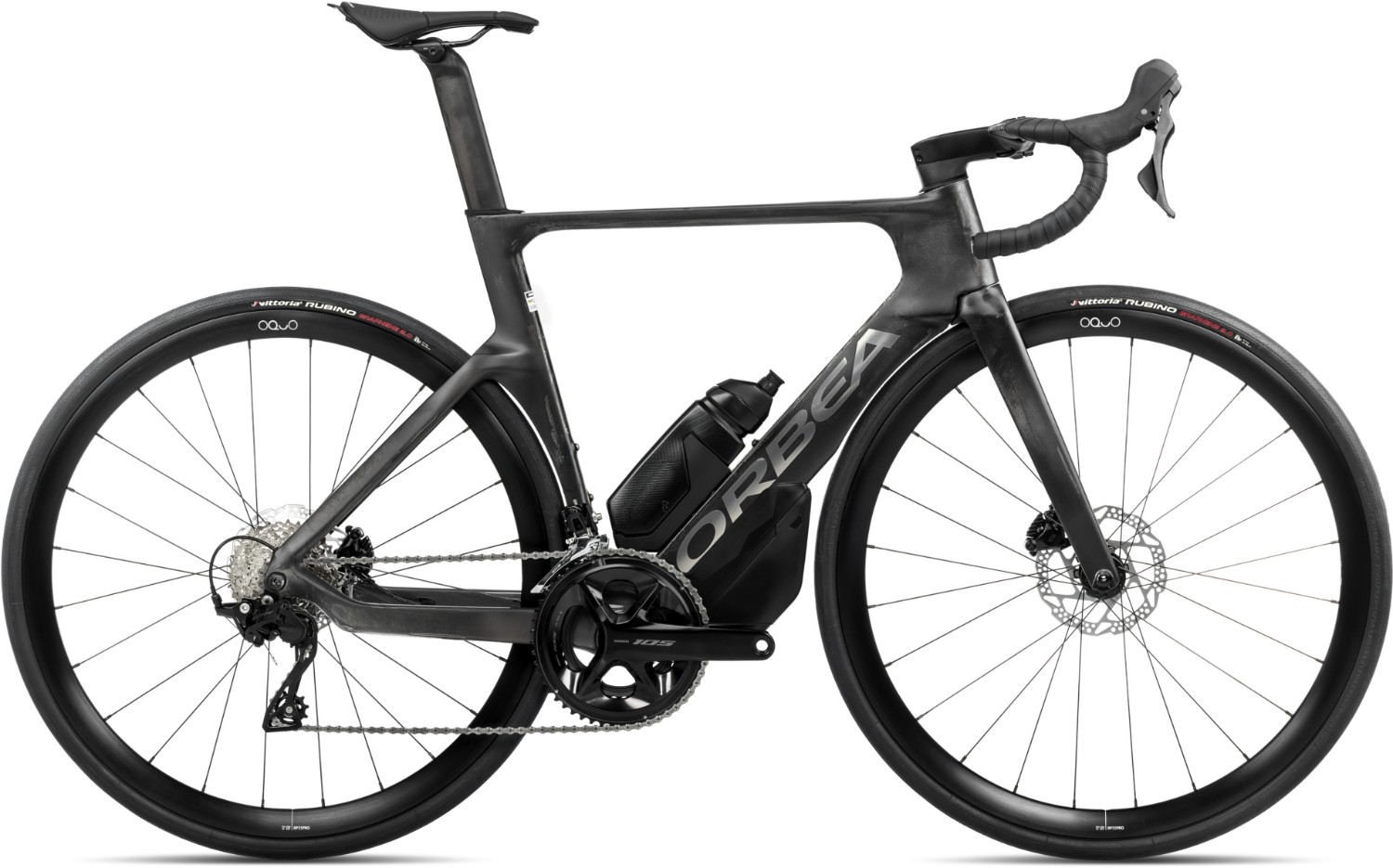

Orbea Orca Aero M30 Ltd 2025 - Road Bike
Orca Aero delivers these prizes – along with the willingness to to go all-out, all day, without hesitation. Long live the bike that balances the emotional and rational desires inside each of us – Long live Aero.
Perfect Balance
Historically, considering only the three design factors of aerodynamics, stiffness and weight rarely yeilds dramatic improvement. Big gains in one area always compromise one or both of the others. The key to building the best aero road bike is finding the balance of these targets, and identifying additional performance factors that allow the rider to increase efficiency.
Aerodynamics.
Aligning the frame with the airflow, optimizing cross-sections, smoothing transitions and myriad other improvements mean a big reduction in drag. Slipping effortlessly through the air, that instant feedback of a world-class aero bike. There is no better feeling.
Power Transmission
The large majority of torsional and lateral loads are handled by the lower spine of the frame. A frame which is stiff in the right places means direct power transmission to the rear wheel.
Balanced AhndlingG
One of the most important points to consider when determining geometry is that the bike must be easy to ride. Going fast isn’t just a by product of good aerodynamics, it requires precise control over the bike.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible |
| Fork | Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout. |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Stem | OC Road Performance RP10, -8º |
| Bars | OC Road Aero RA11 Carbon, Reach 80, Drop 125 |
| Front Brake | Shimano R7170 Hydraulic Disc |
| Rear Brake | Shimano R7170 Hydraulic Disc |
| Front Mech | Shimano 105 R7100 |
| Rear Mech | Shimano 105 R7100 |
| Shifters | Shimano R7120 |
| Speed | 24 |
| Rims | Oquo Road Performance RP35PRO, alloy rim, 35mm profile, Zipp ZR1 hub, 19mm internal width, Sapim CX-Sprint TCS spokes, 700C |
| Front Hub | Orbea Thru Axle 12x100mm M12x2 P1 Lite |
| Rear Hub | Orbea Thru Axle 12x142mm M12x2 P1 Lite |
| Front Tyre | Vittoria Rubino IV G2.0 Foldable 700x28c |
| Rear Tyre | Vittoria Rubino IV G2.0 Foldable 700x28c |
| Seat Post | OC Road Aero RA10 Carbon, SB0/25, w/Micro tilt adjustment |
| Saddle | Prologo Scratch-M5 Pas T2.0 size 140mm |
| Chainset | Shimano 105 R7100 36x52t |
| Chain | Shimano M6100 |
| Cassette | Shimano 105 R7100 11-34t 12-Speed |
| Pedals | Resin Platform |
Orbea Orca Aero 2025 Size Chart
| Size | Min Height cm | Max Height cm | Min height feet | Max height feet |
| 47cm | 155 | 160 | 5'1" | 5'3" |
| 49cm | 160 | 166 | 5'3" | 5'5" |
| 51cm | 167 | 172 | 5'6" | 5'8" |
| 53cm | 173 | 179 | 5'8" | 5'11" |
| 55cm | 180 | 185 | 5'11" | 6'1" |
| 57cm | 186 | 191 | 6'1" | 6'3" |
| 60cm | 192 | 207 | 6'3" | 6'9" |
Orbea Orca Aero 2025 Geometry Chart
| Size | 47 | 49 | 51 | 53 | 55 | 57 | 60 |
|---|---|---|---|---|---|---|---|
| Stack | 496 | 505 | 523 | 542 | 562 | 580 | 606 |
| Reach | 370 | 376 | 380 | 385 | 391 | 398 | 404 |
| Head Tube Length | 93.1 | 100.8 | 117.2 | 134.9 | 155.2 | 173.2 | 200.4 |
| Head Tube Angle | 71° | 71.5° | 72.2° | 72.8° | 73° | 73.2° | 73.2° |
| Bottom Bracket Height | 260/263 | 260/263 | 260/263 | 262/265 | 262/265 | 262/265 | 262/265 |
| Bottom Bracket Drop | 76 | 76 | 76 | 74 | 74 | 74 | 74 |
| Trail | 64.9/66 | 61.8/62.8 | 57.5/58.4 | 59/59.9 | 57.8/58.7 | 56.5/57.4 | 56.5/57.4 |
| Fork Length | 370 | 370 | 370 | 370 | 370 | 370 | 370 |
| Fork Rake/Offset | 48 | 48 | 48 | 43 | 43 | 43 | 43 |
| Chainstay Length | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| Wheelbase | 966.2 | 971 | 974.8 | 976.1 | 986.4 | 996.9 | 1010.8 |
| Top Tube Length (horizontal) | 507.6 | 520.8 | 532.9 | 545.5 | 557.5 | 573.1 | 587 |
| Standover Height | 720 | 731.5 | 753.1 | 778 | 797 | 814.6 | 838.8 |
| Seat Tube Length | 459 | 474 | 499 | 524 | 544 | 564 | 589 |
| Seat Tube Angle | 74.5° | 74° | 73.7° | 73.5° | 73.5° | 73.2° | 73.2° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
