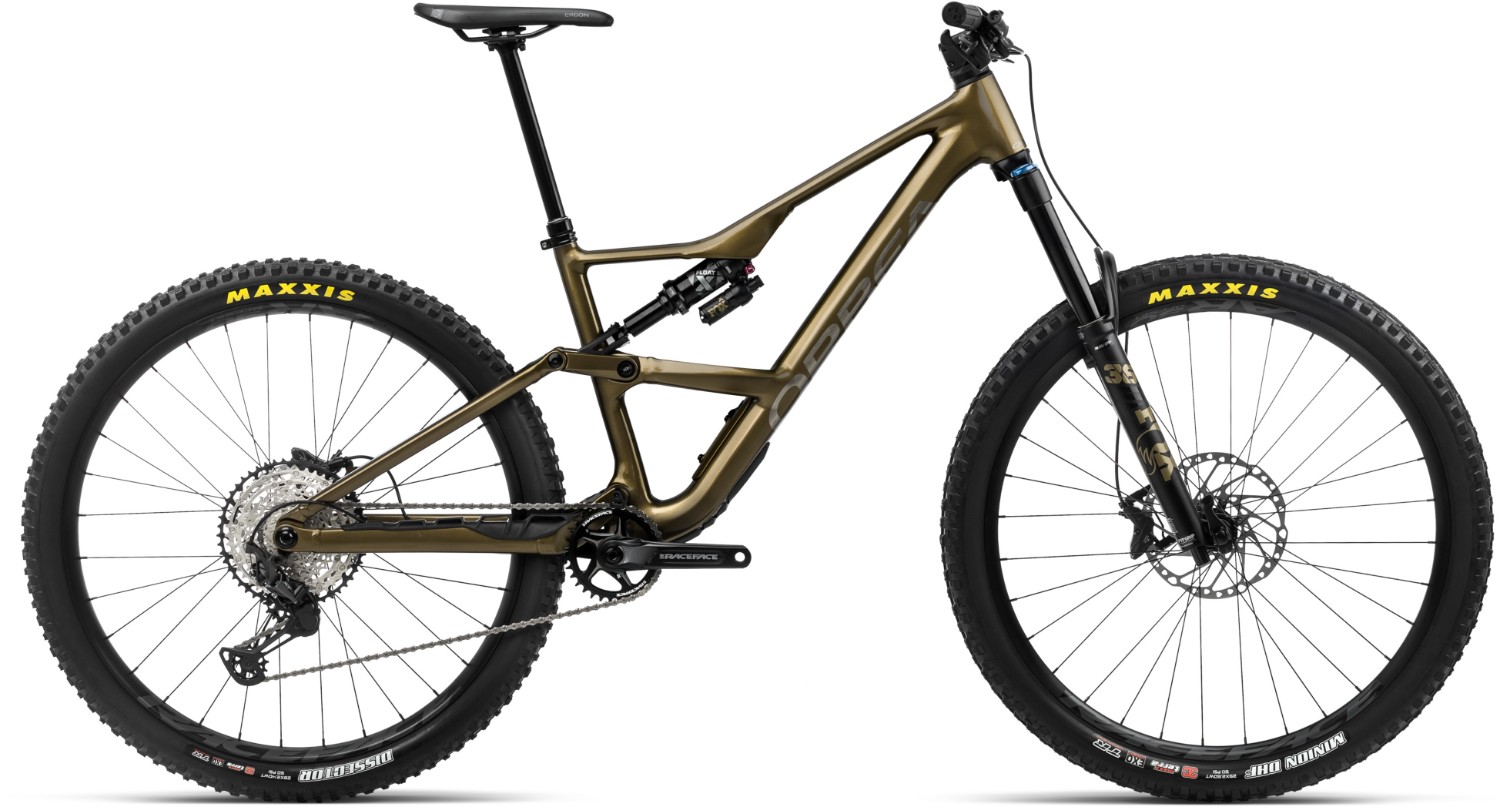

Orbea Occam LT H20 Mountain Bike 2024 - Trail Full Suspension MTB
The Orbea Occam LT H20 full-suspension MTB is your gateway to trail excellence. Crafted with precision and cycling expertise, this mountain bike is designed to tackle a wide range of terrains. The Orbea Occam Hydro frame, featuring a Concentric Boost 12x148 rear axle, delivers stability and control on every trail. Its pure trail geometry, internal cable routing, and asymmetric design ensure optimal performance. The Fox 36 Float Performance fork, offering 160mm of front suspension travel, pairs seamlessly with the Fox Float X Performance 2-position rear shock with custom tune and 210x55mm dimensions, providing a smooth and responsive ride.
Key Features:
- Frame: Orbea Occam Hydro with Concentric Boost 12x148 rear axle, pure trail geometry, and internal cable routing.
- Front Suspension: Fox 36 Float Performance 160 with Grip 3-position QR15x110 for precise handling.
- Rear Suspension: Fox Float X Performance 2-position Evol LV with custom tune and 210x55mm dimensions.
- Drivetrain: Shimano XT M8100 components for reliable gear changes.
- Brakes: Shimano M6120 hydraulic disc brakes for confident stopping power.
- Wheels: Race Face AR 30C tubeless-ready rims ensure durability and control.
- Tyres: Maxxis Minion DHF 2.50" FB 60 TPI 3C Maxx Terra EXO TR tires offer exceptional traction.
- Standout Feature: Adaptable design for conquering diverse terrains.
- Finance Options: Available with 0% APR finance for your convenience.
The Orbea Occam LT H20 is tailor-made for riders who demand versatility and top-tier performance. It's adaptable to both 140mm and 150mm of front and rear travel, allowing you to conquer challenging trails with ease. Whether you prefer an air or coil shock, this bike's progressive rear suspension is up to the task.
Experience the thrill of conquering technical descents, scaling steep climbs, and navigating flowy trails with precision. With its adaptability and precision engineering, the Occam LT H20 is your ultimate trail companion.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Occam Hydro. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels. Linkage compatible with OC multitool |
| Fork | Fox 36 Float Performance 160 Grip 3-Position QR15x110 |
| Rear Shock | Fox FLOAT X Performance 2-Position Evol LV custom tune 210x55mm |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Stem | OC Mountain Control MC20, 0º |
| Bars | OC Mountain Control MC30, Rise20, Width 800 |
| Front Brake | Shimano M6120 Hydraulic Disc |
| Rear Brake | Shimano M6120 Hydraulic Disc |
| Brake Lever | Shimano M6120 |
| Rear Mech | Shimano XT M8100 SGS Shadow Plus |
| Shifters | Shimano SLX M7100 I-Spec EV |
| Speed | 12 |
| Rims | Race Face AR 30c Tubeless Ready |
| Front Tyre | Maxxis Minion DHF 2.50" FB 60 TPI 3C Maxx Terra Exo TR |
| Rear Tyre | Maxxis Minion DHF 2.50" FB 60 TPI 3C Maxx Terra Exo TR |
| Seat Post | OC Mountain Control MC21, 31.6mm, Dropper |
| Saddle | ERGON SM Enduro |
| Chainset | Race Face Aeffect 32t |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Pedals | Resin Platform |
Orbea Occam LT 2024 Size Chart
| Size | Min Height cm | Max Height cm | Min height feet | Max height feet |
| S | 150 | 165 | 4'11" | 5'5" |
| M | 160 | 175 | 5'3" | 5'9" |
| L | 170 | 185 | 5'7" | 6'1" |
| XL | 180 | 195 | 5'11" | 6'5" |
What size frame do I need if I am between sizes? - read here
Orbea Occam LT 2024 Geometry
|
Size |
S (high) |
S (low) |
M (high) |
M (low) |
L (high) |
L (low) |
XL (high) |
XL (low) |
|
Seat Tube (C-T) |
405 |
405 |
415 |
415 |
430 |
430 | 460 | 460 |
|
Top Tube (Eff) |
571 |
572 |
597 |
598 |
624 |
625 | 651 | 653 |
|
Head Tube |
95 |
95 |
100 |
100 |
110 |
110 | 120 | 120 |
|
Chainstay |
440 |
440 |
440 |
440 |
440 |
440 | 440 | 440 |
|
Bb Height |
350 |
342 |
350 |
342 |
350 |
342 | 350 | 342 |
|
Bb Drop* |
28 |
36 |
28 |
36 |
28 |
36 | 28 | 36 |
|
Wheelbase |
1199 |
1200 |
1226 |
1227 |
1255 |
1257 | 1285 | 1286 |
|
Head Angle |
64.5° |
64° |
64.5° |
64° |
64.5° |
64° | 64.5° | 64° |
|
Seat Angle |
77.5° |
77° |
77.5° |
77° |
77.5° |
77° | 77.5° | 77° |
|
Reach |
435 |
430 |
460 |
455 |
485 |
480 | 510 | 505 |
|
Stack |
616 |
621 |
621 |
625 |
630 |
635 | 639 | 644 |
|
Fork Length |
575 |
575 |
575 |
575 |
575 |
575 | 575 | 575 |
|
Rake |
44 |
44 |
44 |
44 |
44 |
44 | 44 | 44 |
|
Seatpost min insertion |
410 |
410 |
420 |
420 |
435 |
435 | 460 | 460 |
