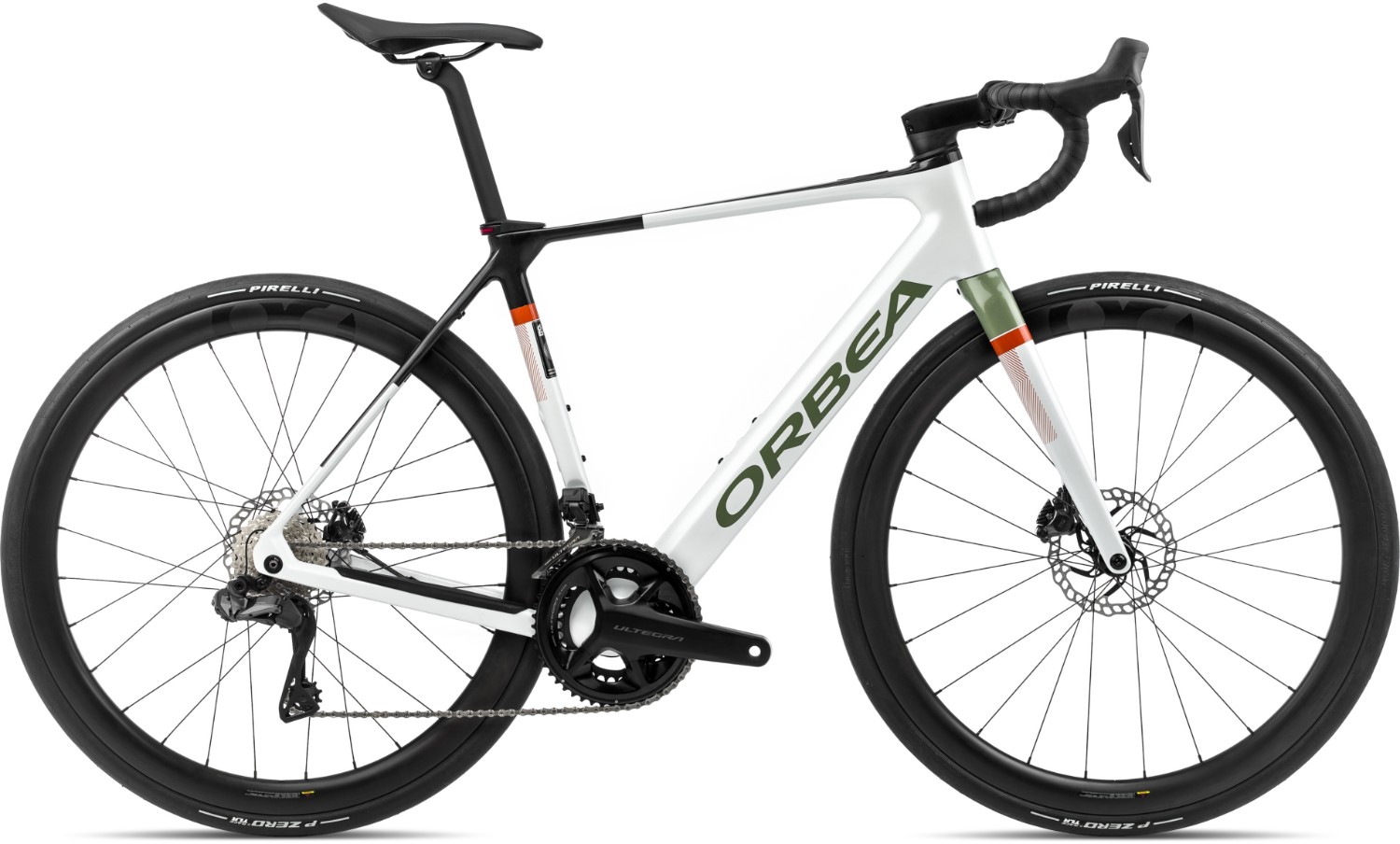

Orbea Gain M20i 2024 - Electric Road Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug. |
| Fork | Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1 |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Front Brake | Shimano R8170 Hydraulic Disc |
| Rear Brake | Shimano R8170 Hydraulic Disc |
| Front Mech | Shimano Ultegra Di2 R8150 |
| Rear Mech | Shimano Ultegra Di2 R8150 |
| Shifters | Shimano ST-8170 |
| Speed | 24 |
| Rims | Carbon 42, Tubeless, 21c |
| Front Hub | Orbea Thru Axle 12x142mm M12x2 P1 Lite |
| Rear Hub | Orbea Thru Axle 12x100mm M12x2 P1 Lite |
| Front Tyre | Pirelli P ZERO™ Race SmartEVO TLR 700x30c |
| Rear Tyre | Pirelli P ZERO™ Race SmartEVO TLR 700x30c |
| Seat Post | OC Performance XP10-S Carbon, 27.2mm, Setback 20 |
| Saddle | Fizik Aliante R5 |
| Chain | Shimano M8100 |
| Cassette | Shimano Ultegra R8100 11-30t 12-Speed |
| Battery Size (WH) | Mahle iX350 36V 353Wh |
| Motor | Mahle motor hub X20, ALC |
Orbea Gain Size Chart
| Frame Size | Rider Height (cm) | Rider Height (ft/in) |
|---|---|---|
| XS | 155 – 166 cm | 5'1" – 5'5" |
| S | 167 – 172 cm | 5'6" – 5'8" |
| M | 173 – 179 cm | 5'8" – 5'10" |
| L | 180 – 185 cm | 5'11" – 6'1" |
| XL | 186 – 191 cm | 6'1" – 6'3" |
| XXL | 192 – 207 cm | 6'3" – 6'9" |
What size frame do I need if I am between sizes? - read here
