Orbea Gain M10i 2024 - Electric Road Bike

Name: Orbea Gain M10i 2024 - Electric Road Bike
Brand: Orbea

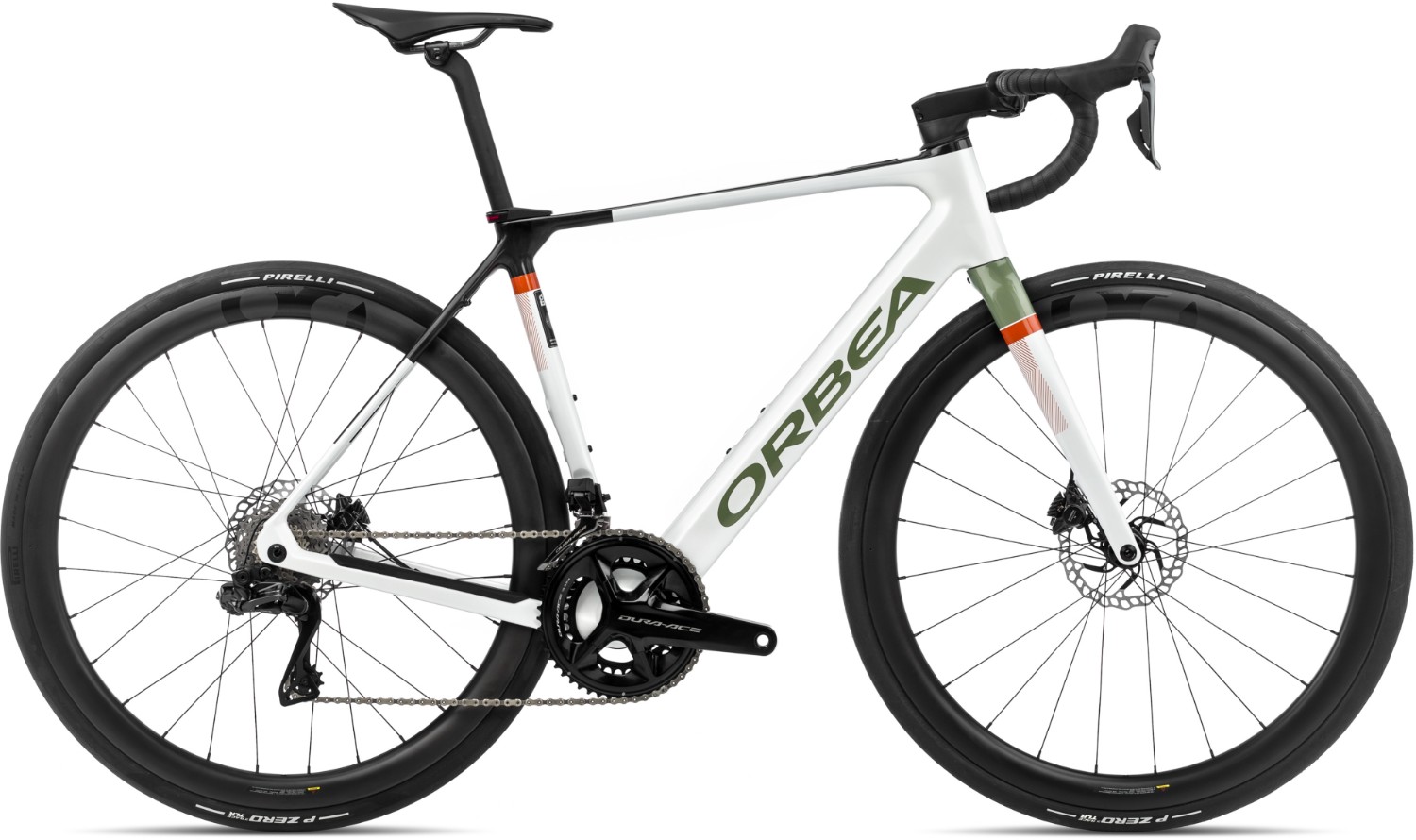

Orbea Gain M10i 2024 - Electric Road Bike product image

Rider and bike working in perfect synergy, you are breathing hard and your heart is pumping but you are in control and having fun. Gain brings enough power to turn gravity down a bit but not dominate the ride or remove the satisfaction. The natural assistance blends invisibly into the background, leaving you feeling like you are fitter than ever. This isn’t about riding faster, it isn’t even about riding further, this is just about having more fun each and every time you ride.

Enough Power is a concept which is central to our vision of e-road. A completely integrated system which brings together power, range and interface to deliver a natural ride with nearly silent, unobtrusive assistance.

Natural handling means tuning geometry and rigidity to optimize performance. In this respect, Gain is just like any great road bike. Natural pedaling means silent and unobtrusive assistance at lower speeds and no added friction, leaving you free to pedal as normal at higher speeds.

On the descents, the combination of Gain’s Dynamic Structure and great weight distribution result in confident, fun handling.

It has never been easier to grab your bike and head out the door. Gain´s huge range means you can pretty much forget about battery limitations, and the top tube command center puts all the information you need right at your fingertips.

Many people claim that their e-bikes look like bikes, we go further than that, Gain is a bike, just one which adds an extra smile to every mile.

The biggest battery on the market, combined with our 1.5 factor, gives more range that ever. Which is useful because you will be having so much fun, thanks to GAIN’s intuitive handling and natural pedalling that you might well just forget to stop.

Occasionally, without notice, manufacturers change product design and/or specifications.

Frame	Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.
Fork	Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1
Headset	FSA 1-1/2" Integrated Aluminium Cup
Front Brake	Shimano R9270 Hydraulic Disc
Rear Brake	Shimano R9270 Hydraulic Disc
Front Mech	Shimano Dura-Ace Di2 R9250
Rear Mech	Shimano Dura-Ace Di2 R9250
Shifters	Shimano R9270
Speed	24
Rims	Carbon 42, Tubeless, 21c
Front Hub	Orbea Thru Axle 12x142mm M12x2 P1 Lite
Rear Hub	Orbea Thru Axle 12x100mm M12x2 P1 Lite
Front Tyre	Pirelli P ZERO™ Race SmartEVO TLR 700x30c
Rear Tyre	Pirelli P ZERO™ Race SmartEVO TLR 700x30c
Seat Post	OC Performance XP10-S Carbon, 27.2mm, Setback 20
Saddle	Fizik Vento Antares R1 Carbon Rail 140mm
Chain	Shimano CN-9100
Cassette	Shimano Dura-Ace R9200 11-30t 12-Speed
Battery Size (WH)	Mahle iX350 36V 353Wh
Motor	Mahle motor hub X20, ALC

Electric Bike Bike Size Chart

Height	e Bike Size	e Road Bike Size	e Mountain Bike Size*
4’8” – 5’1” 143 – 155 cm	XXS	44 cm	13” (33 cm)
5’1” – 5’4” 155 – 163 cm	XS	48 cm	15” (38 cm)
5’4” – 5’7” 163 – 170 cm	S	51 cm	16” (41 cm)
5’7” – 5’10” 170 – 178 cm	M	54 cm	18” (46cm)
5’10” – 6’0” 178 – 183 cm	L	56 cm	19” (48cm)
6’0” – 6’3” 183 – 191 cm	XL	58 cm	20” (51 cm)
6’3” – 6’5” 191 – 196 cm	XXL	60 cm	21” (53 cm)
6’5” – 6’9” 196 – 205 cm	XXXL	62 cm	22” (56 cm)

* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.

See our bike size guide for more on bike sizing
