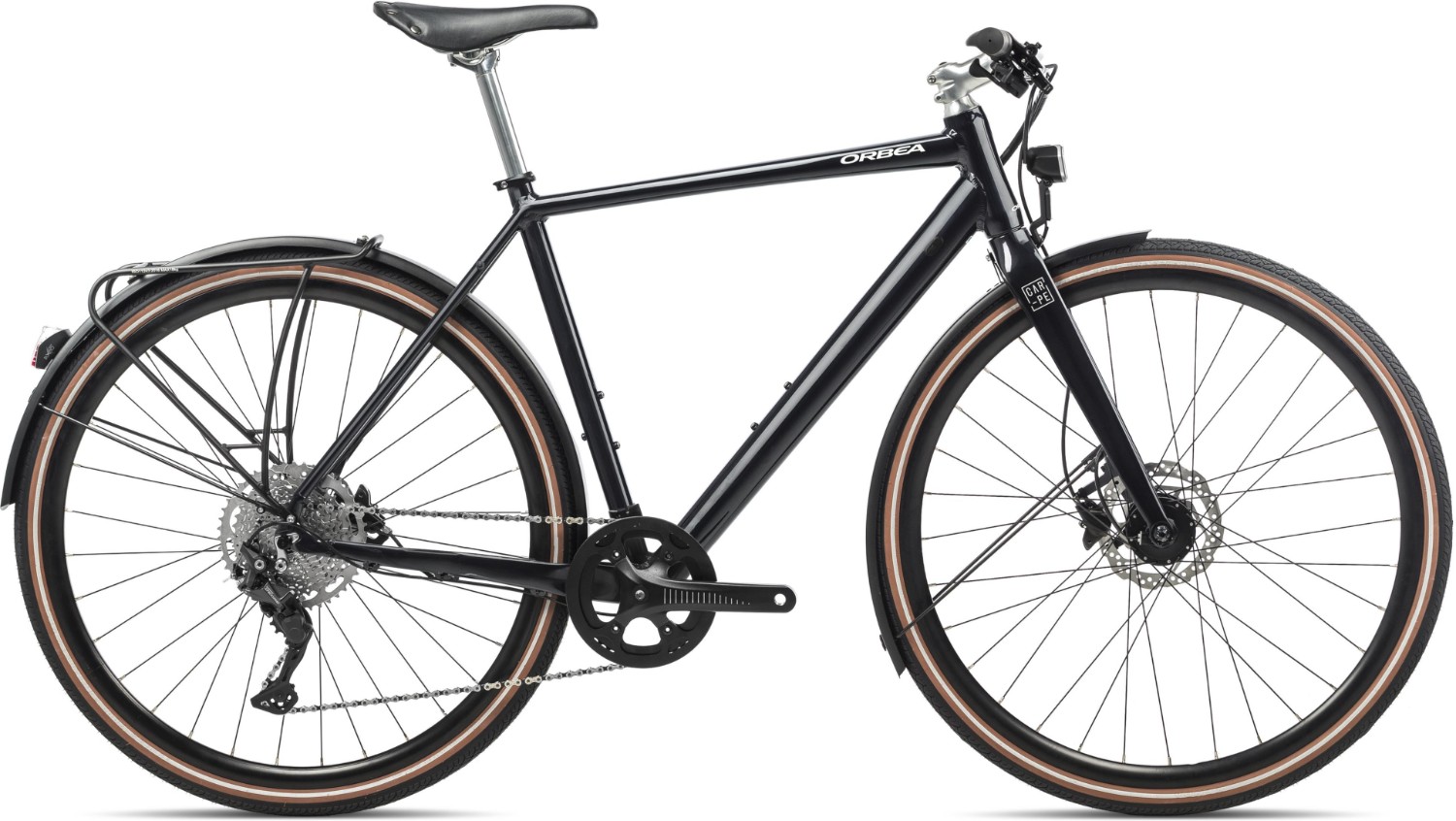

Orbea Carpe 10 2022 - Hybrid Sports Bike

Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing, |
Fork | Speed 400mm Carbon Flat mount |
Headset | 1-1/8" Semi-Integrated |
Stem | Orbea TDS-C301 |
Bars | Orbea AL320 Riser 680mm |
Front Brake | Shimano MT200 Hydraulic Disc |
Rear Brake | Shimano MT200 Hydraulic Disc |
Brake Lever | Shimano Deore M4100 |
Rear Mech | Shimano Deore M5120 SGS Shadow Plus |
Shifters | Shimano Deore M4100 |
Speed | 10 |
Rims | Orbea Airline Corsa Disc 700X19c |
Front Tyre | Kenda K1067 700x38C Reflective type+puncture protection |
Rear Tyre | Kenda K1067 700x38C Reflective type+puncture protection |
Seat Post | Orbea C255 27.2x300mm |
Saddle | Velo 1221 |
Chainset | Orbea Alloy 42t |
Chain | KMC X10 |
Cassette | Shimano CS-M4100 11-46t 10-Speed |
Pedals | VP-229 Black with reflectors |
Orbea Carpe Size Chart
Size |
Height (cm) |
Height (in) |
XS |
150 - 160 |
4' 11" - 5' 3" |
S |
160 - 170 |
5' 3" - 5' 7" |
M |
170 - 180 |
5' 7" - 5' 11" |
L |
180 - 190 |
5' 11" - 6' 3" |
XL |
190 - 200 |
6' 3" - 6' 7" |
What size frame do I need if I am between sizes? - read here
Orbea Carpe Geometry Chart
Size |
XS |
S |
M |
L |
XL |
Seat Tube Length (mm) |
430 |
480 |
525 |
555 |
580 |
Top Tube Length (mm) |
521 |
546 |
559 |
580 |
601 |
Head Tube Length (mm) |
109 |
127 |
150 |
170 |
200 |
Chainstay Length (mm) |
435 |
435 |
435 |
435 |
435 |
Bottom Bracket Height (mm) |
281 |
281 |
283 |
283 |
285 |
Bottom Bracket Drop (mm) |
70 |
70 |
68 |
68 |
66 |
Wheelbase (mm) |
1021 |
1037 |
1052 |
1063 |
1075 |
Head Angle |
71° |
71° |
71° |
71.5° |
72° |
Seat Angle |
75° |
74° |
74° |
73.5° |
73° |
Standover (mm) |
738 |
768 |
800 |
824 |
852 |
Reach (mm) |
378 |
388 |
395 |
405 |
410 |
Stack (mm) |
535 |
552 |
571 |
592 |
625 |
Fork Length (mm) |
400 |
400 |
400 |
400 |
400 |
Rake |
51 |
51 |
51 |
51 |
51 |
