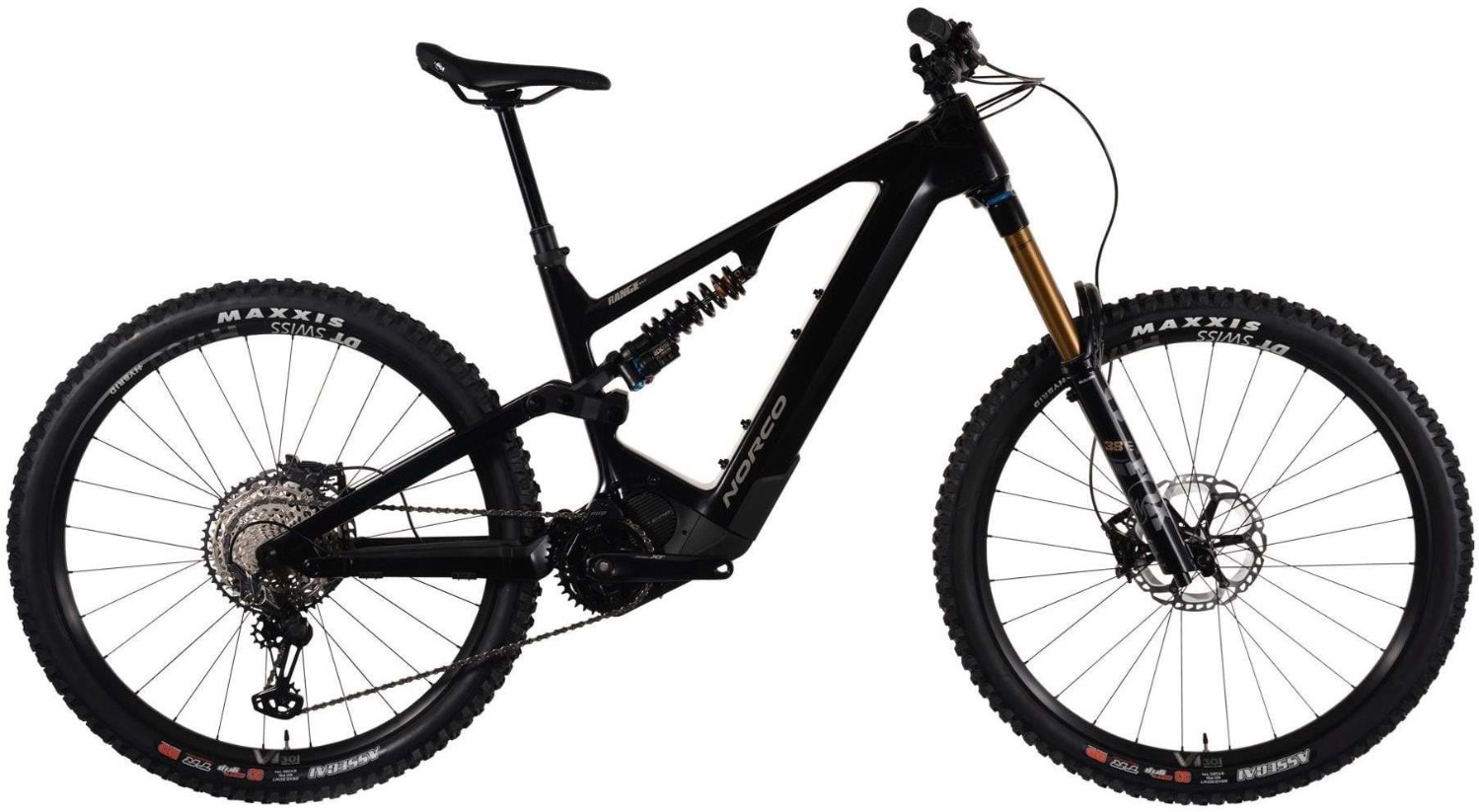

Norco Range VLT C1 2023 - Electric Mountain Bike

Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Carbon Front Triangle and Seatstay, Aluminum Chainstay, 170mm Travel, Ride Aligned™ |
Fork | Fox Factory FLOAT 38, GRIP2 |
Rear Shock | Fox Factory DHX2, Coil Spring |
Headset | FSA No.55R-1 |
Stem | CNC Alloy, 40mm Length, 35mm Clamp |
Bars | Deity Ridgeline, 800mm, 25mm Rise |
Front Brake | Shimano XT BR-M8120, 4 Piston, 203mm rotor |
Rear Brake | Shimano XT BR-M8120, 4 Piston, 203mm rotor |
Brake Lever | Shimano XT |
Rear Mech | Shimano XTR M9100 |
Shifters | Shimano XT Sl-M8100 I-Spec |
Speed | 1x12 |
Rims | DT Swiss E 1700 Hybrid E-Rated Wheelset |
Front Hub | DT Swiss 350H, 15x110mm Boost, Center Lock |
Rear Hub | DT Swiss 350H, 12x148mm Boost, Micro Spline, Center Lock |
Spokes | DT Swiss |
Front Tyre | Maxxis Assegai 2.5" 3C MaxxGrip/DD/TR/WT |
Rear Tyre | Maxxis Assegai 2.5" 3C MaxxGrip/DD/TR/WT |
Seat Post | OneUp Adjustable Travel Dropper |
Saddle | Ergon SM-10 E-Mountain Sport |
Chainset | Shimano FC-EM600, 34T, 165mm |
Bottom Bracket | Integrated |
Chain | Shimano SLX |
Cassette | Shimano SLX CS-M8700, 10-51T |
Pedals | Resin Platform |
Battery Size (WH) | 720wh |
Motor | Shimano STEPS EP8 |
User Interface | Shimano STEPS SC-EM800 |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
