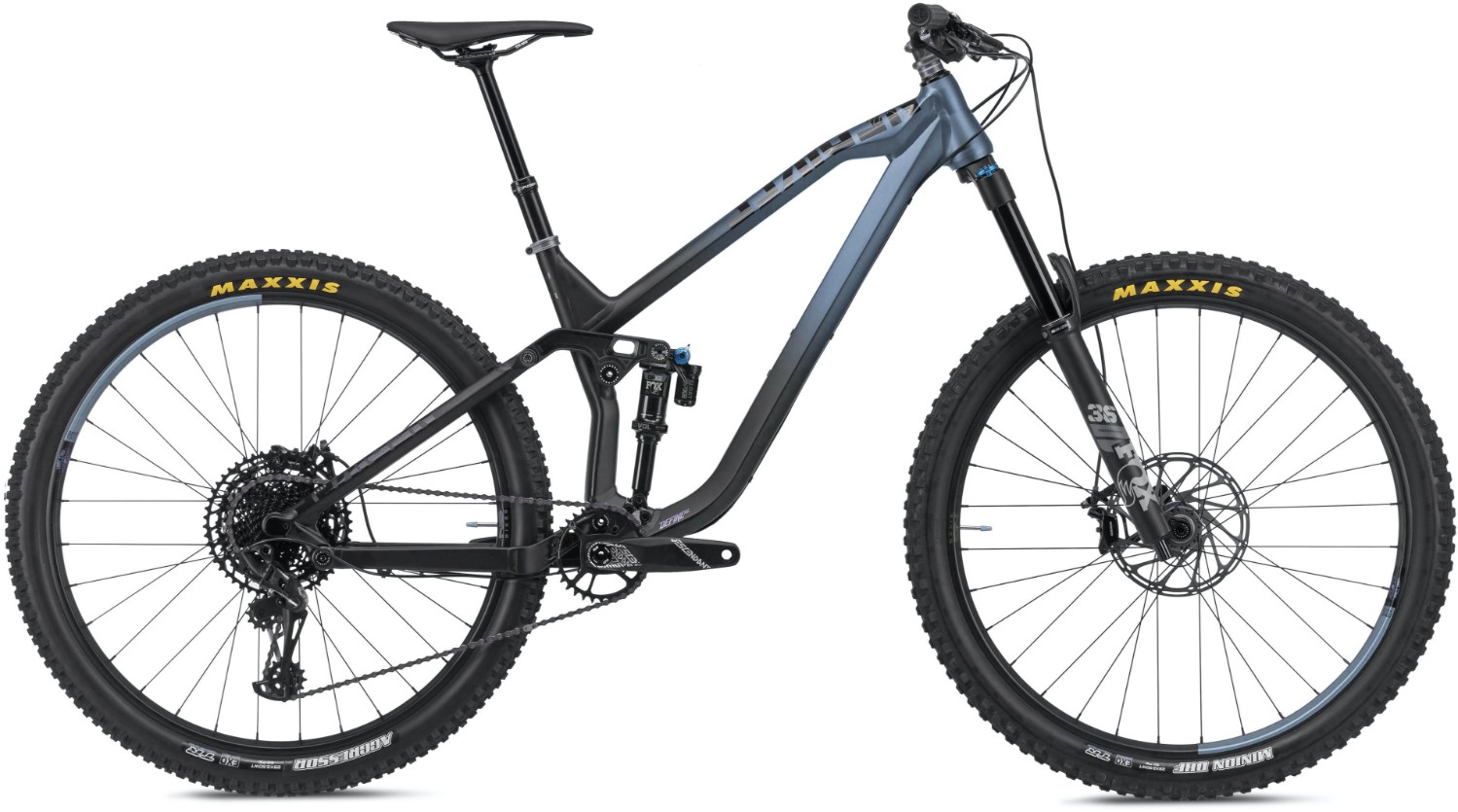

NS Bikes Define AL 150 1 Mountain Bike 2023 - Trail Full Suspension MTB

With over 150mm of travel in the rear and a 160mm fork this alloy 29er can blast through the roughest stuff, while feeling great on a wide range of trails. The NS Bikes Define AL 150 1 can pedal up the sections that others have to walk and fly over sections that others have to plough through. The adjustable reach and bb height will let you dial the bike to your riding style and the trails you plan to ride. The frame’s unique semi-internal cable routing is a solution that is elegant and easy to service. large, sealed pivots guarantee long periods of smooth, service-free function.
Key features:
- NS Bikes Define AL6061-T6 + AL6066-T6 frame
- Fox Performance 36 forks with 160mm of bump soaking travel
- Fox Performace Float X shock takes care of the 150mm of rear travel
- Sram 1x12 gears give enough range to climb anything
- Sram Guide RE brakes offer all-weather stopping power
- Sizes: M, L
- Colours: Black/Blue
- The NS Bikes Define AL 150 1 is available with 0% APR Finance
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match guarantee
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | NS Bikes Define AL w/ 150mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes |
Fork | Fox Performance 36 Float Grip, 160mm travel, 3pos-Adj w/ Open Mode Adj, 15x110mm Boost, 1.5 tapered steerer tube, 44mm offset |
Rear Shock | Fox Performace Float X 2pos-Adj Trunnion, Evol LV, DPX2 205x62,5 |
Headset | GW integrated tapered IS42/IS52, sealed bearings |
Stem | NS Bikes Quantum Lite 45mm, 35 |
Bars | NS Bikes 35, 800mm, 20mm rise |
Front Brake | Sram Guide RE, 200mm |
Rear Brake | Sram Guide RE, 180mm |
Brake Lever | Sram Guide |
Rear Mech | Sram GX Eagle Lunar, 12spd |
Shifters | Sram NX Eagle, 12spd |
Speed | 12 |
Rims | Octane One Solar 29”, 32h, tubeless ready |
Front Hub | NS Bikes Rotary 110x15mm Boost (sealed bearings) |
Rear Hub | NS Bikes Rotary Cassette 148x12mm Boost (sealed bearings) |
Spokes | Spokes w/14mm nipples |
Front Tyre | Maxxis DHF EXO/TR 29x2.5WT / Maxxis Aggressor EXO/DD/TR 29x2.5WT |
Rear Tyre | Maxxis DHF EXO/TR 29x2.5WT / Maxxis Aggressor EXO/DD/TR 29x2.5WT |
Seat Post | Race Face Aeffect R S-125, M-150, L-170mm, 31,6mm |
Saddle | WTB Volt Medium Cromoly |
Chainset | Truvativ Descendant 6K DUB 170mm 32t |
Bottom Bracket | Sram DUB BSA 73mm |
Chain | Sram SX Eagle, 12spd |
Cassette | Sram PG-1210, 11-50t, 12spd |
Pedals | Resin Platform |
Weight | 14.9kg |
Mountain Bike Size Chart
Height
|
Bike Size
|
Mountain Bike Size
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
